Oldtimer picture gallery. Trucks. ZIL-164/164A.

51k photo of ZIL-164 special repair truckZIL-164N semitractor29k photo of ZIL-164A cargo

Years of production: 1957-1961-1964, (after 1961 - ZIL-164A)
Overall production: ? units
4x2 4-ton truck
Engine: 97hp/2600rpm, 6-cyl, 5555cc
Bore/Stroke: 101.6/114.3 mm
Length: 6700mm, width: 2470mm, height: 2180mm
Wheelbase: 4000mm, rear axle road clearance: 265mm

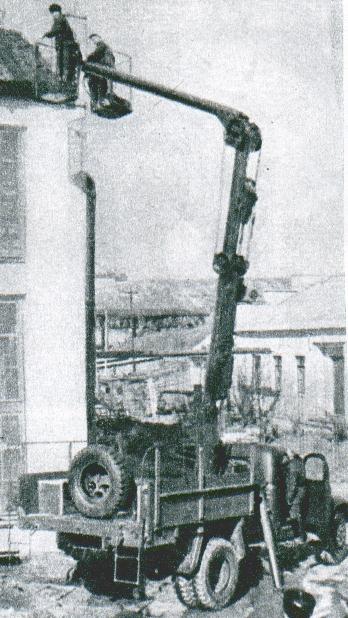

10k photo of ZIL-164A cargo12k photo of ZIL-164 craneFront wheel track: 1700mm
Rear track: 1740mm
Turning radius on front outer wheel: 8.0 m
Compression ratio: 6.2:1
Clutch: twin disk, dry
Gearbox: 5 speeds
Weight (without load): 4100 kg
Maximal speed (loaded, highway): 75 km/h

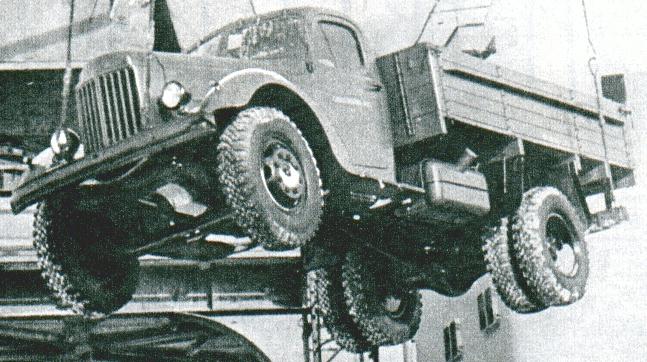

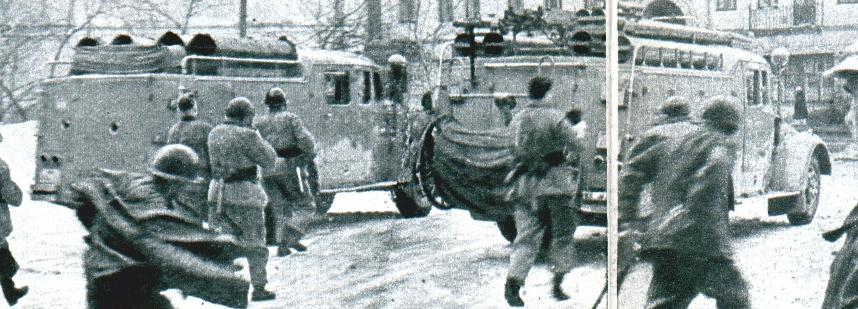

61k photo of 1962 ZIL-164A cargo54k photo of 1962 ZIL-164AN semitractor75k photo of ZIL-164 or 150 firetrucksTyres: 9,00x20 inches
Fuel tank capacity: 150 L
Petrol consumption: 27 L/100km
Photos are from:
Old issues of "Ogonyok" magazine, USSR,
Denis Orlov, automobile history journalist, Moscow,
Igor Guzienko, Kiev,
Thanks for help to Alexander Andryushin, Moscow.
In 1957 ZIS-164 replaced ZIS-150 on assembly line. In 1961 the truck was modified into ZIL-164A (with some units from future ZiL-130). ZIL-164 (together with GAZ-51A) was main truck of first half of 1960's in the USSR. In 1964 basal ZIS-164A model was finally substituted by ZIL-130.
You are welcome to write me by E-mail Contact. Andrei Bogomolov.
