Oldtimer picture gallery. Motorcycles. Indian.
1923-1953, Indian Motocycle Co., Springfield, Massachusetts, USA.
1902-1923, Hendee Manufacturing Co., Springfield, Massachusetts, USA.
1912-1918, Hendee Manufacturing Co., Toronto, Ontario, Canada.
U N T E R   K O N S T R U K T I O N !

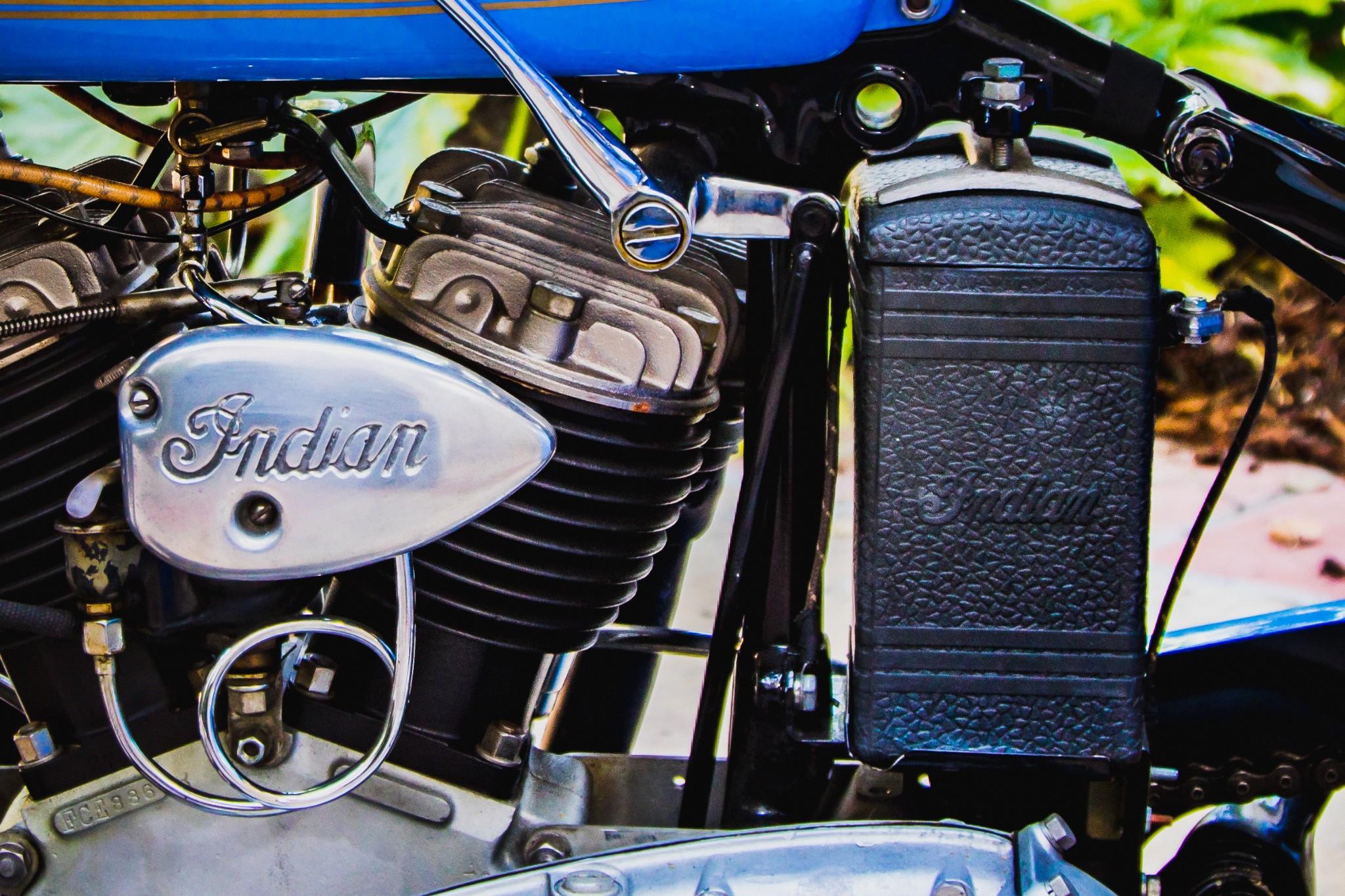

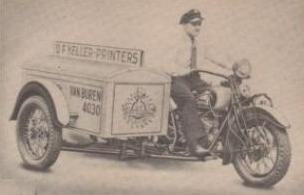

Indian Dispatch-Tow (3-wheeler)
(Sport Scout engine), 1934 - 1942, V2-cyl. SV (flathead), 45,44 cu in (744,7cc), 3-speed gearbox, 22hp/?rpm, ? mph (? km/h), ? built
(Scout Pony engine), 1934, V2-cyl. SV (flathead), 30,07 cu in (492,7cc), 3-speed gearbox, ?hp/?rpm, ? mph (? km/h), ? built
(Motoplane engine), 1933, V2-cyl. SV (flathead), 45,44 cu in (744,7cc), 3-speed gearbox, ?hp/?rpm, ? mph (? km/h), prototype(?) built

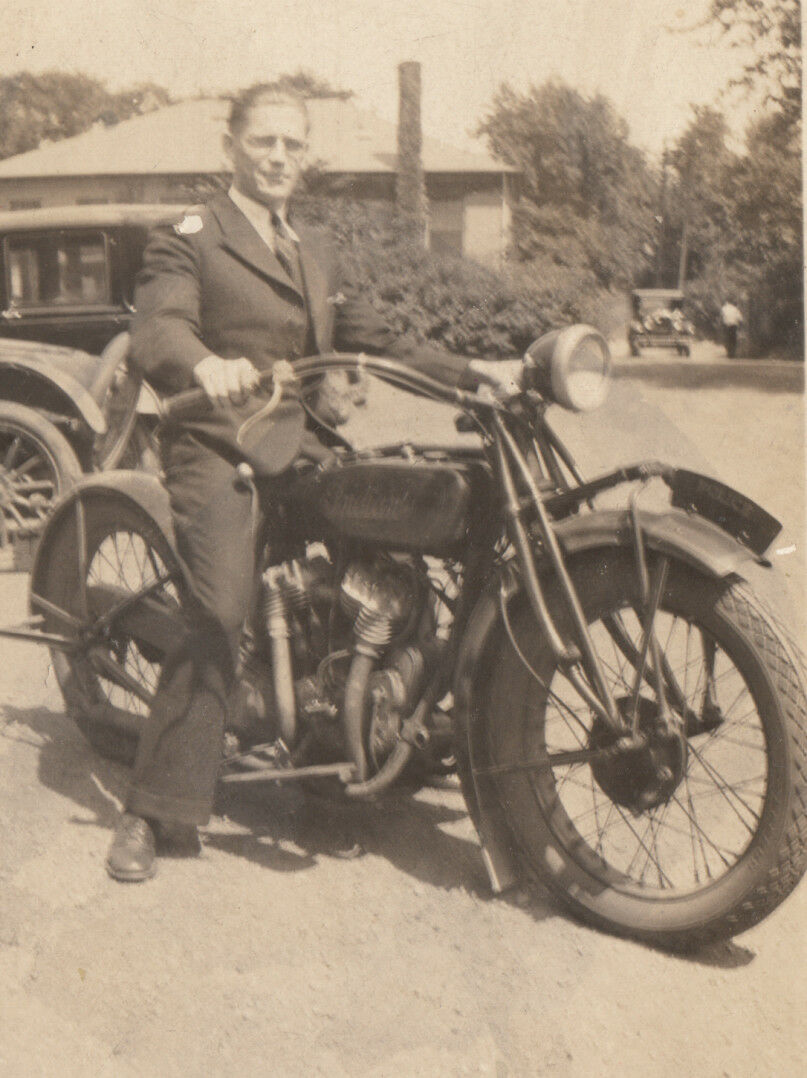

(101 Scout engine), 1931 (- 1932?), V2-cyl. SV (flathead), 45,44 cu in (744,7cc) or 36,38 cu in (596,2cc), 3-speed gearbox, 18hp/?rpm, ? mph (? km/h), ca. 400 built
External difference by years:
images
1931

101 DT, many differences with later models
28k
29k
134k
33k
1933 D.T. 13? , many differences with later models17k primary
chain cover
distributor
ignition
gear shift
lever
instrument
panel
other differences
1934
D.T. 12, (30-50" motor) less body and tow bar, 310$
D.T. 13, ?
D.T. 14, (45" motor) less body and tow bar
D.B. 101, open natural finish wood body, 16$
D.B. 102, closed hinged cover metal body, 27$
Tow bar with all attachments, 13$
48k
71k
66k
1935
DT-15, steel body, less tow bar
DT-16, steel body, with tow bar
DT-17, steel body, with tow bar, +2 seaters pad, hand holds
DT-18, large body, with tow bar
DT-19, large body, with tow bar, +2 seaters pad, hand holds
131k DT-17
116k DT-17
5k DT-19

no distributor
heavier front fork
chain-driven generator
triple-row primary chain
1936
DT-20, steel body, less tow bar, +2 seaters pad, hand holds
DT-21, steel body, with tow bar
DT-22, steel body, with tow bar, +2 seaters pad, hand holds
DT-23, large body, with tow bar
DT-24, large body, with tow bar, +2 seaters pad, hand holds
231k DT-20
126k DT-20
as 1935
Auto-Lite distributor
onion-shaped
gear shift knob
1937
DT-25, steel body, less tow bar, +2 seaters pad, hand holds
DT-26, steel body, with tow bar
DT-27, steel body, with tow bar, +2 seaters pad, hand holds
DT-28, large body, with tow bar
DT-29, large body, with tow bar, +2 seaters pad, hand holds
39k DT-25
37k DT-25
78k DT-27
187k DT-28
165k DT-28
65k DT-29
10k DT-29
as 1935as 1936
1938
DT-30, steel body, less tow bar, +2 seaters pad, hand holds, 545$
DT-31, steel body, with tow bar, +2 seaters pad, hand holds, 560$
DT-32, large body, less tow bar, 560$
DT-33, large body, with tow bar, 575$
Magneto ignition - 20$ Extra
27k DT-30
66k DT-31
58k DT-32
16k DT-33
images air cleanerfork stiffness
adjuster
fendersheadlight holderother differences
1938
1939
DT-35, steel body, less tow bar, +2 seaters pad, hand holds, 515$
DT-36, steel body, with tow bar, +2 seaters pad, hand holds, 530$
DT-37, large body, less tow bar, 530$
DT-38, large body, with tow bar, 545$
Magneto ignition - 20$ Extra
79k DT-35
74k DT-35
9k DT-36
87k DT-37
84k DT-37
1940
DT-39, steel body, less tow bar, +2 seaters pad, hand holds
DT-40, steel body, with tow bar, +2 seaters pad, hand holds
DT-41, large body, less tow bar
DT-42, large body, with tow bar
Magneto ignition - ?$ Extra
206k DT-39
72k DT-40
1941
DT-43, steel body, less tow bar, 525$
DT-44, steel body, with tow bar, 540$
DT-45, large body, less tow bar, 540$
DT-46, large body, with tow bar, 555$
Reverse gear - 13,50$ Extra
Magneto ignition - ?$ Extra
102k DT-43
277k DT-44
191k DT-44
122k DT-46
76k DT-46
1942
DT-47, steel body, less tow bar
DT-48, steel body, with tow bar
DT-49, large body, less tow bar
DT-50, large body, with tow bar
8k DT-48
29k DT-50
no visible
difference

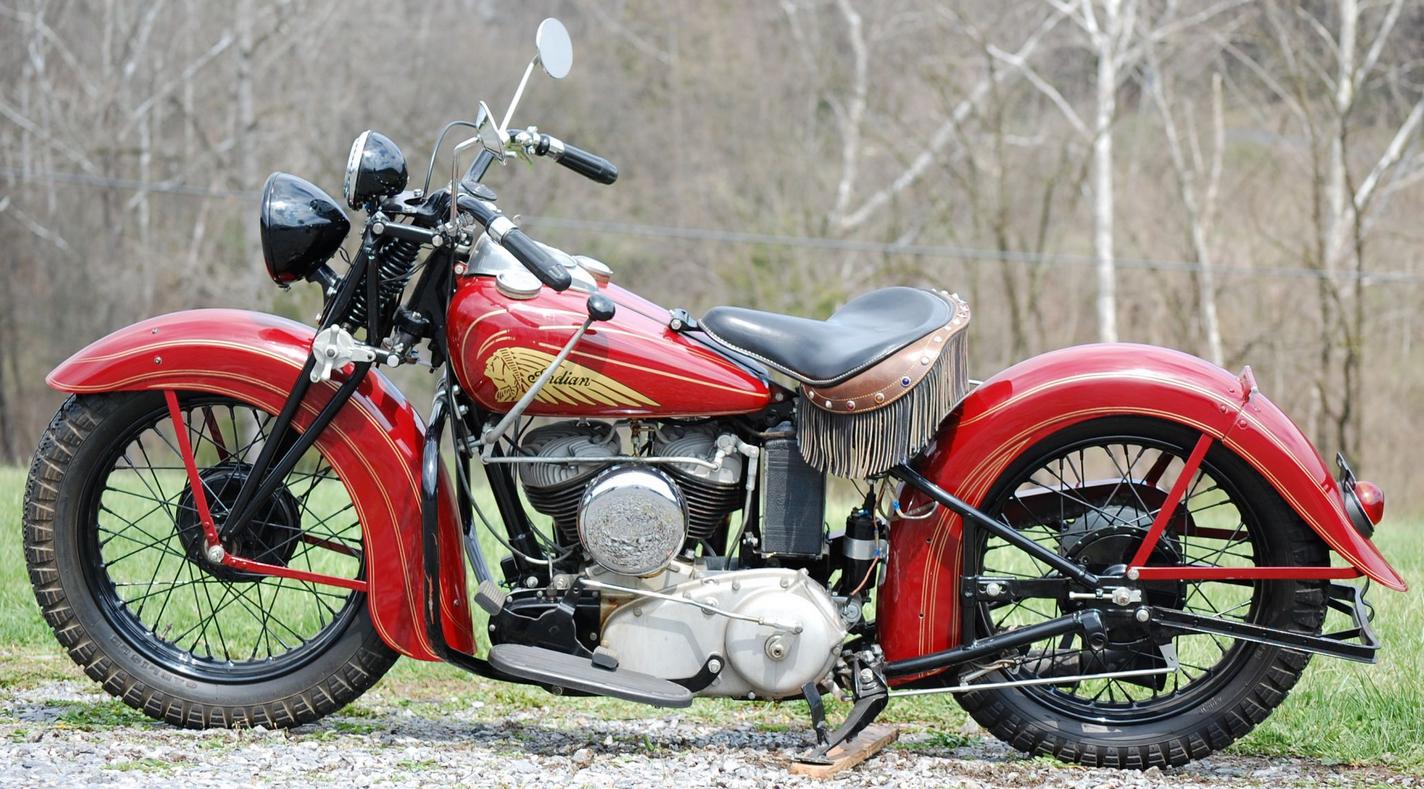

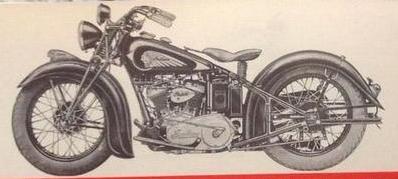

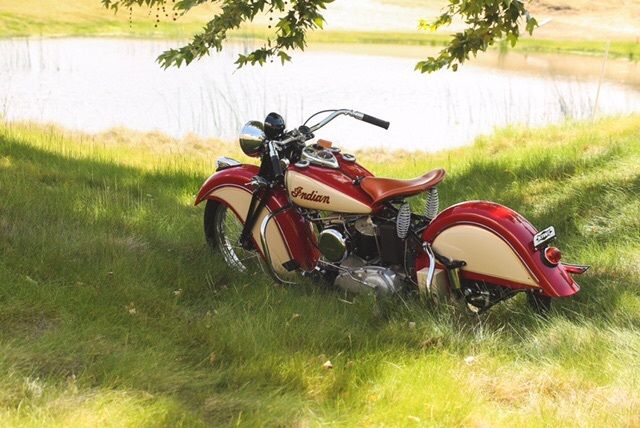

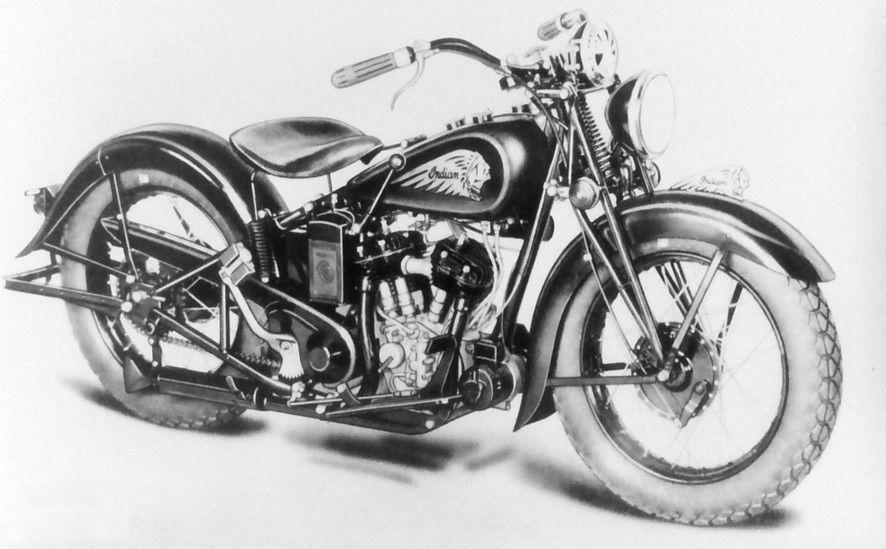

Indian Sport Scout, 1934 - 1942, V2-cyl. SV (flathead), 45,44 cu in (744,7cc), 3-speed gearbox, 22hp/?rpm, ? mph (? km/h), ? built
External difference by years:
images primary
chain cover
distributor
ignition
other differences
1934 (mid-season 1st appeared)

634, battery ignition, 290$
634-Y, battery ignition, Y motor, 310$
(Y-shaped inlet manifolds)
belt-driven generator
double-row primary chain
1935

635B, battery ignition, 316$
635BY, battery ignition, Y motor, 326$
635M, magneto ignition, 336$
635MY, magneto ignition, Y motor, 346$
Y motor has Y-shaped inlet manifolds,
larger cooling fins and aluminium heads
battery model:

magneto model
(lid is not shown):

no distributor
heavier front fork
chain-driven generator
triple-row primary chain



Long time before 1935 all Indians were painted only in red. Although by Mike Carver information "First Indians were available only in blue and black until about 1905 at which time red was first offered as an option".
Indian-741B, 1942-1943, 0.5 L, 72k photo courtesy from the owner David Page (Australia).
  (16 VI 2000) David is writing a book about Indian 741B. Do you have any material to help him?
  another 53k photo and 44k photo by Andrey Moskalyov, Moscow.
  1942 Indian 741, 29k and 34k rear images from Specialcar Magazine,
  Indian 741B Military, 40k rear view from "Tekniikan Maailma" magazine, Finland,

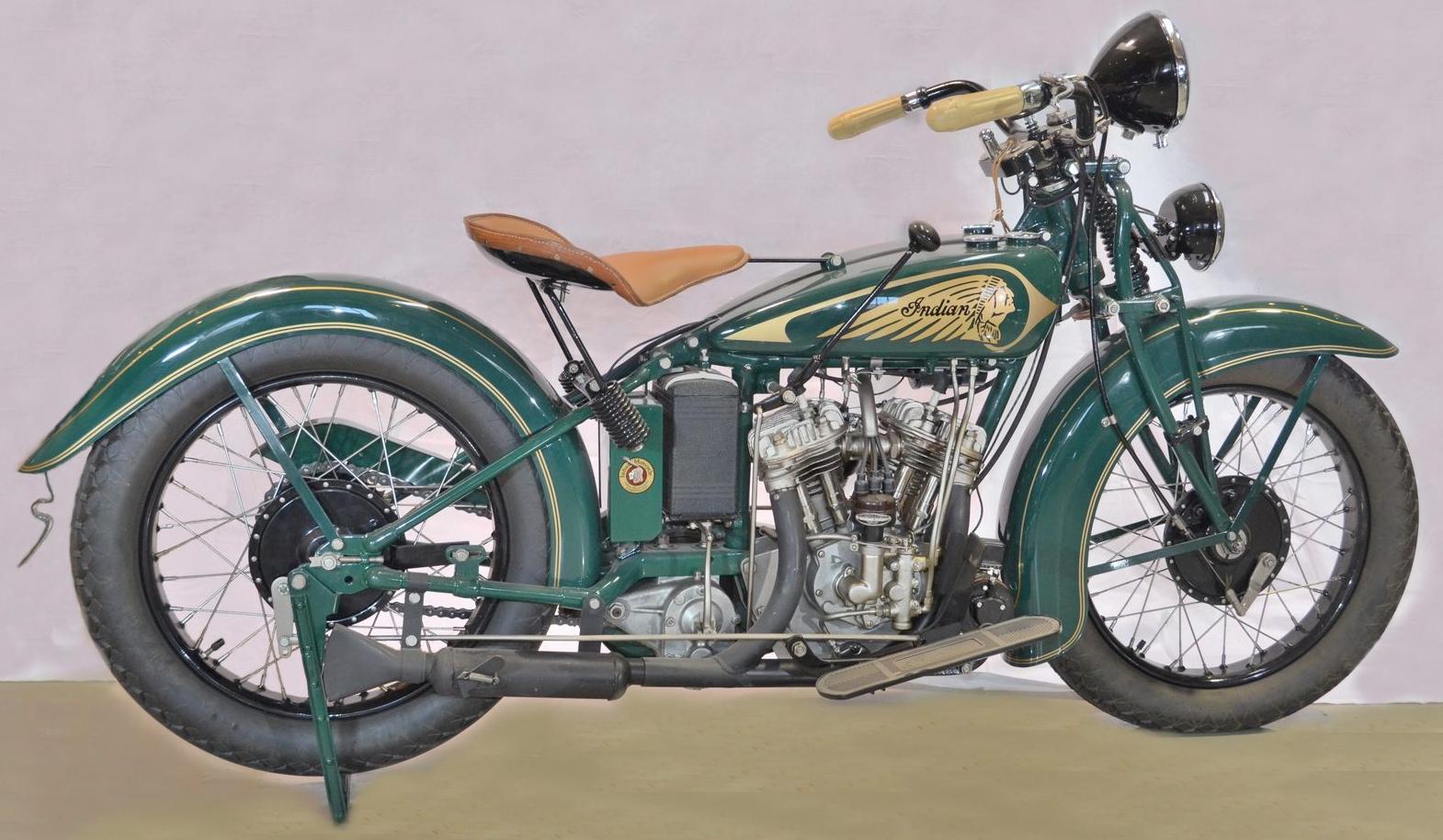

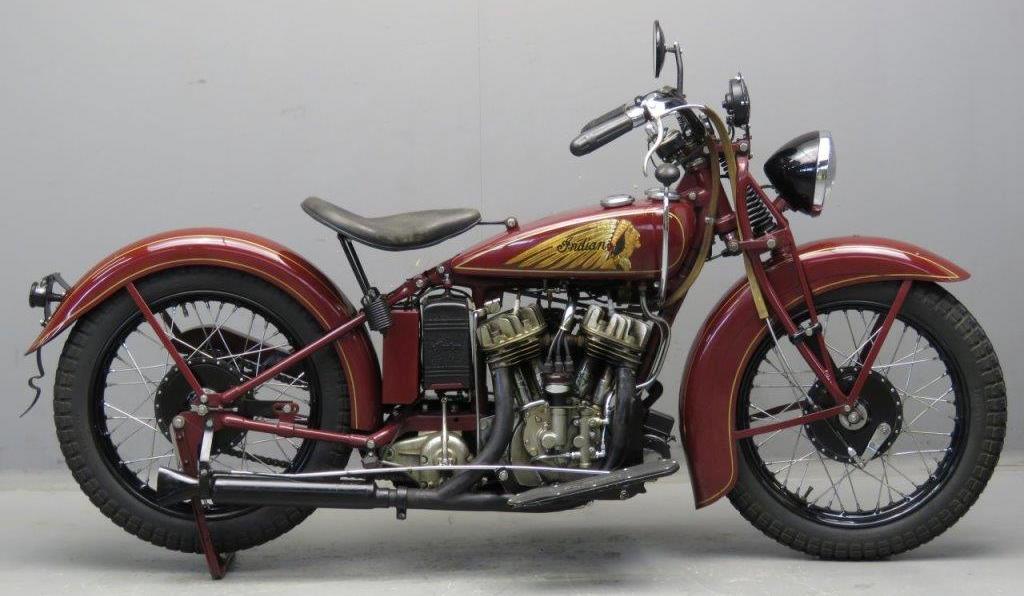

Indian-Junior, 493cc,
  1938, 19k image
Indian-Scout, 745cc, 2-cyl.
  1942, 28k image from Oldtimer Galerie,

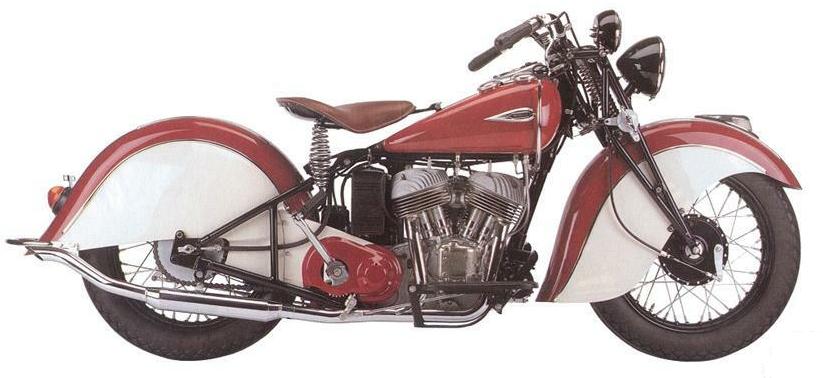

  1940 Sport Scout, 22k image from Kruse International,
  1938 Sport Scout, 68k image
  1937 Sport Scout, 18k image from Bennington,
  1933, 19k image

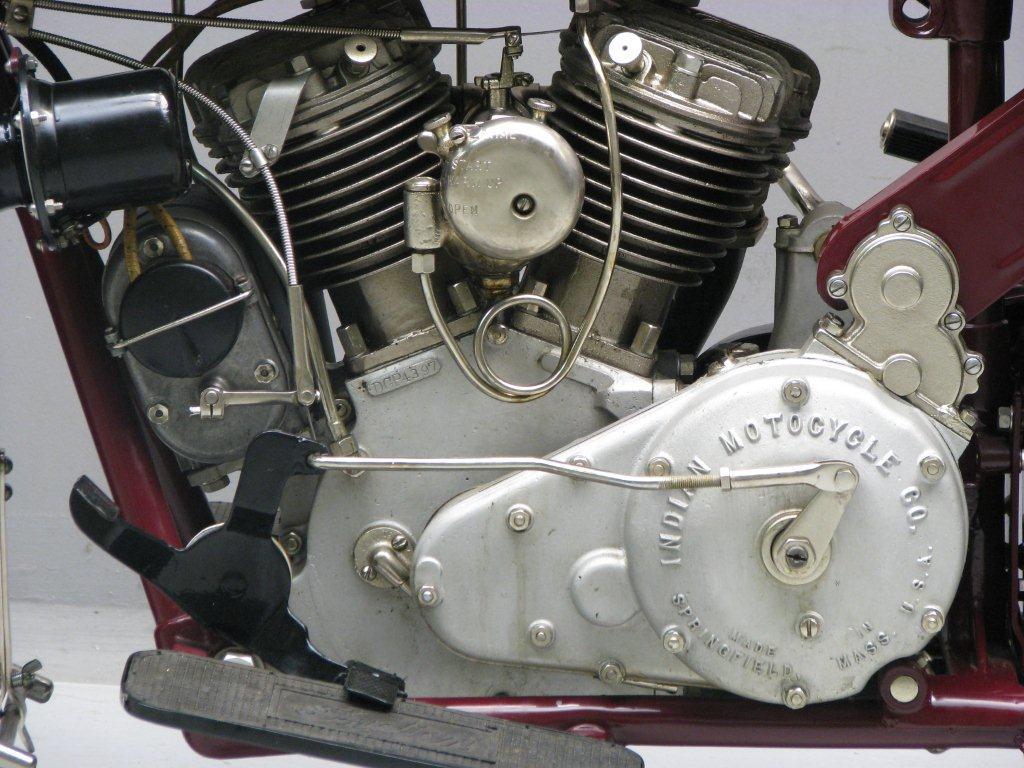

  1929 Scout 101, 76k image from Trader Online,

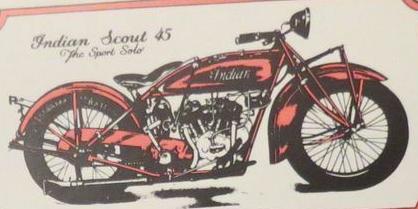

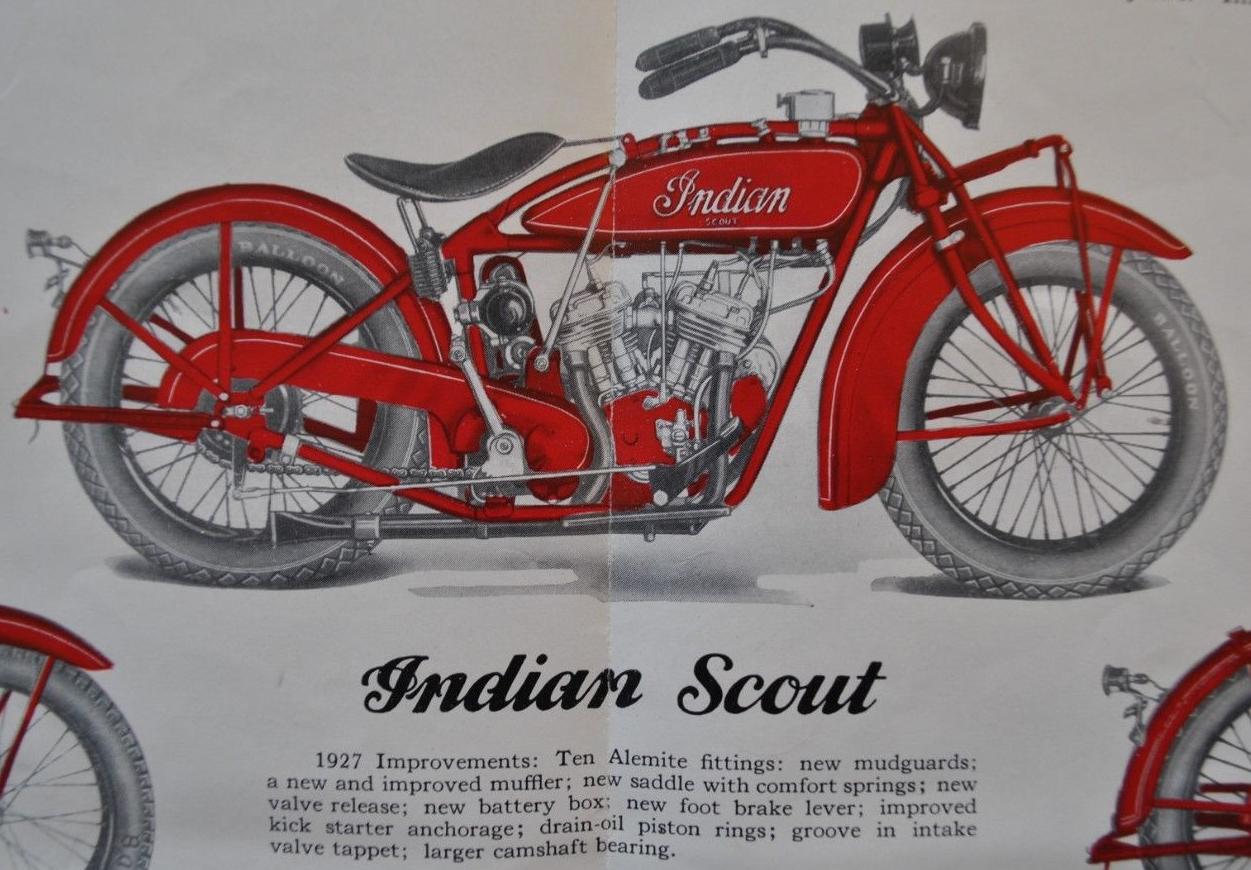

  1928 Scout 101, 29k image from Hemmings Motor News,

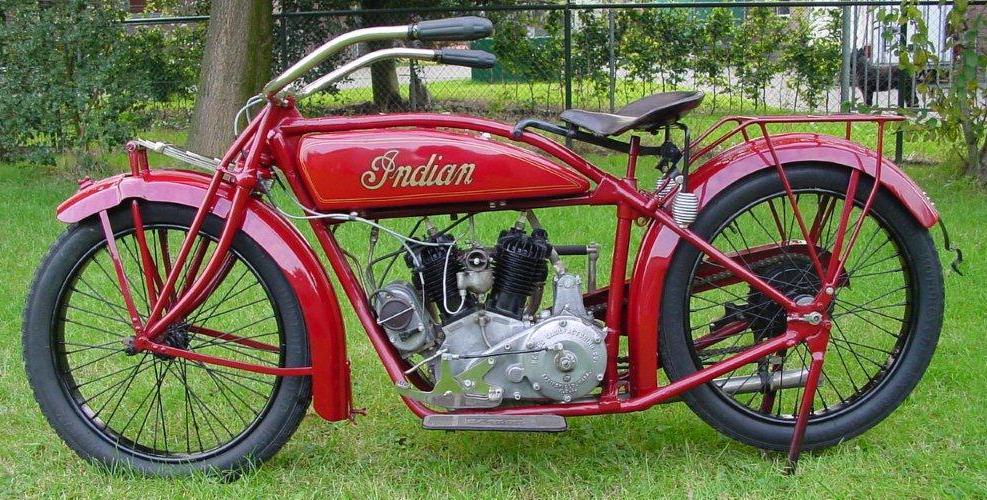

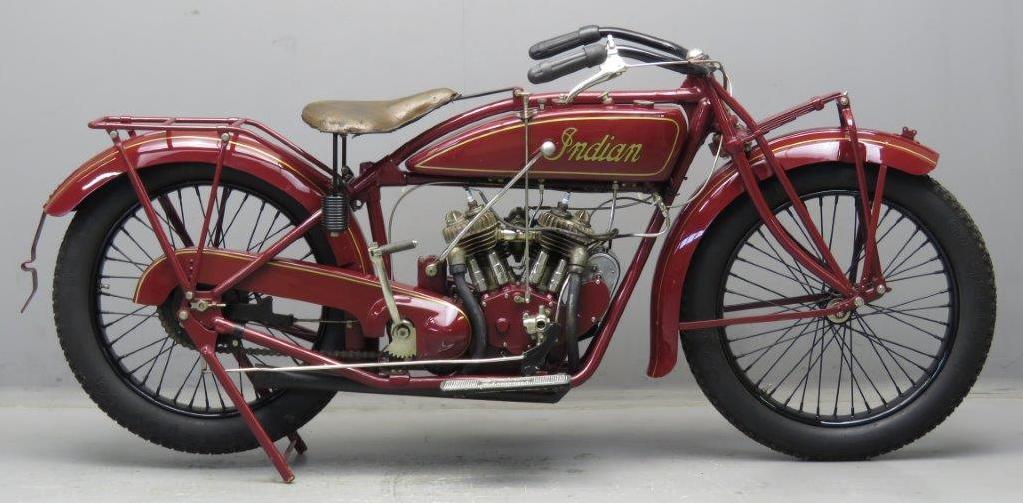

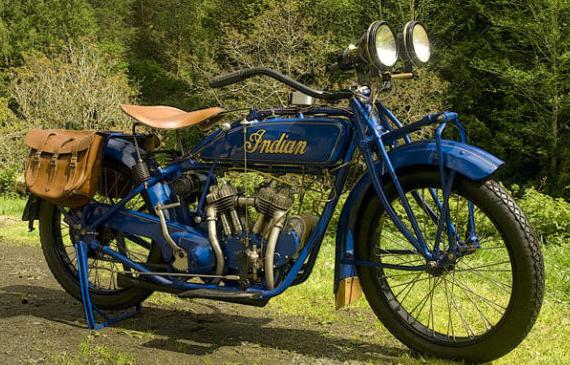

  1926 Indian Scout 600, 15k image from Trader Online,
  1923, 16k image from Kruse International,

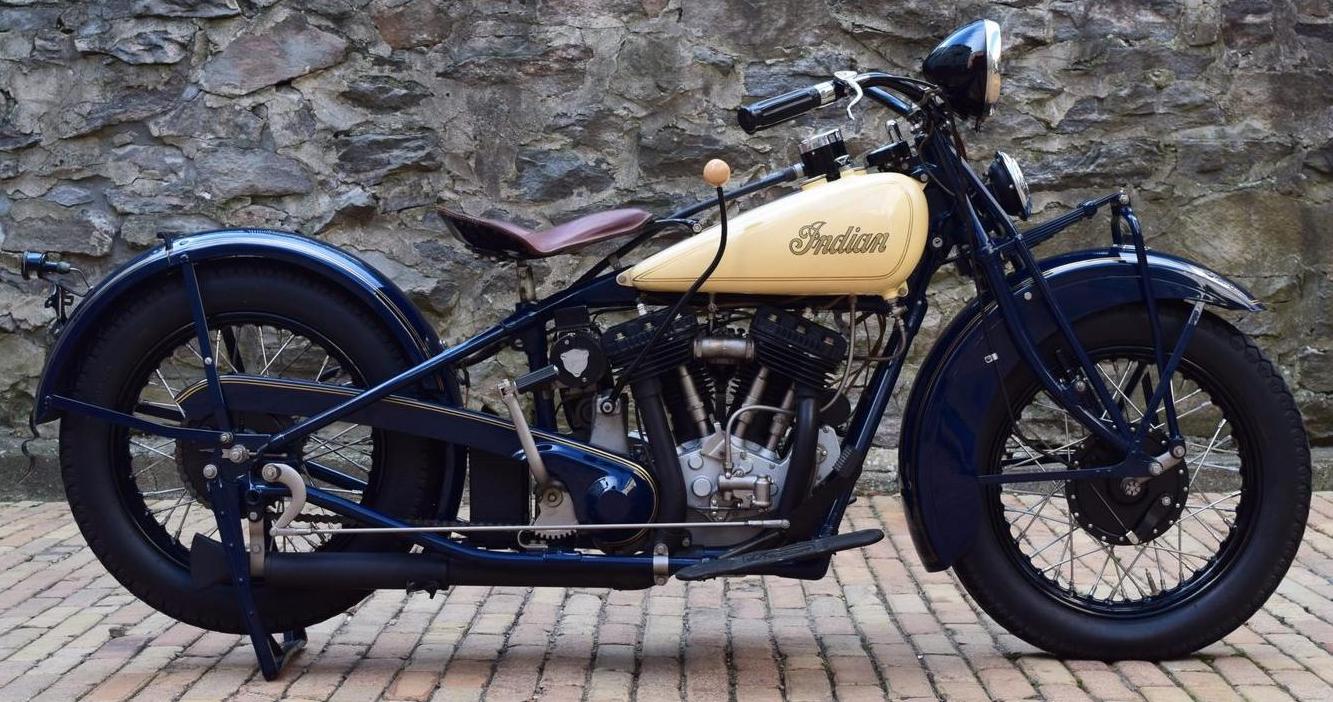

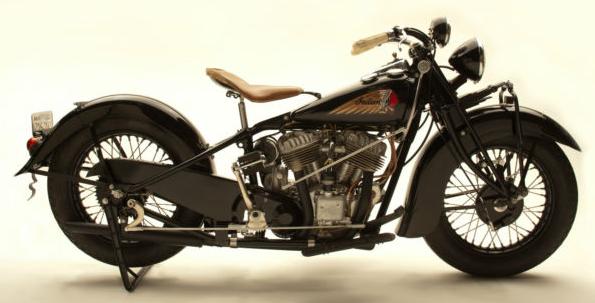

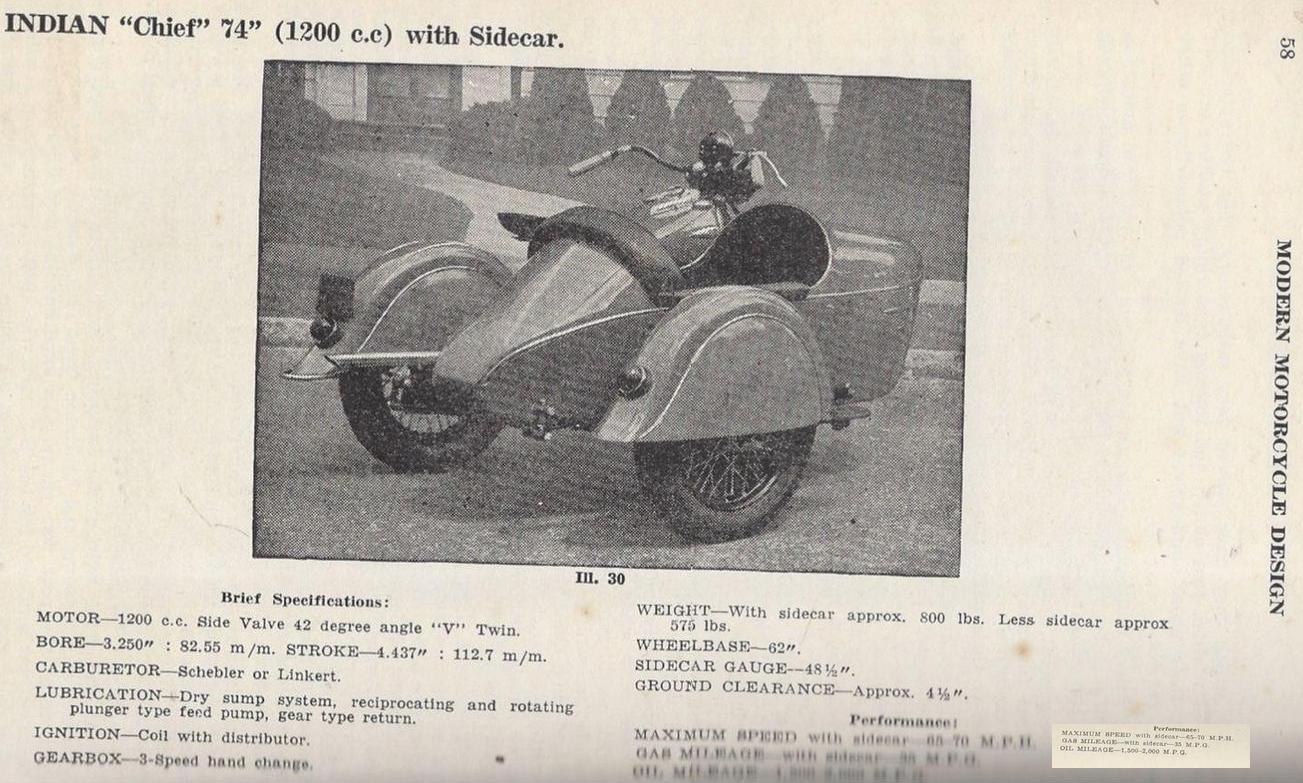

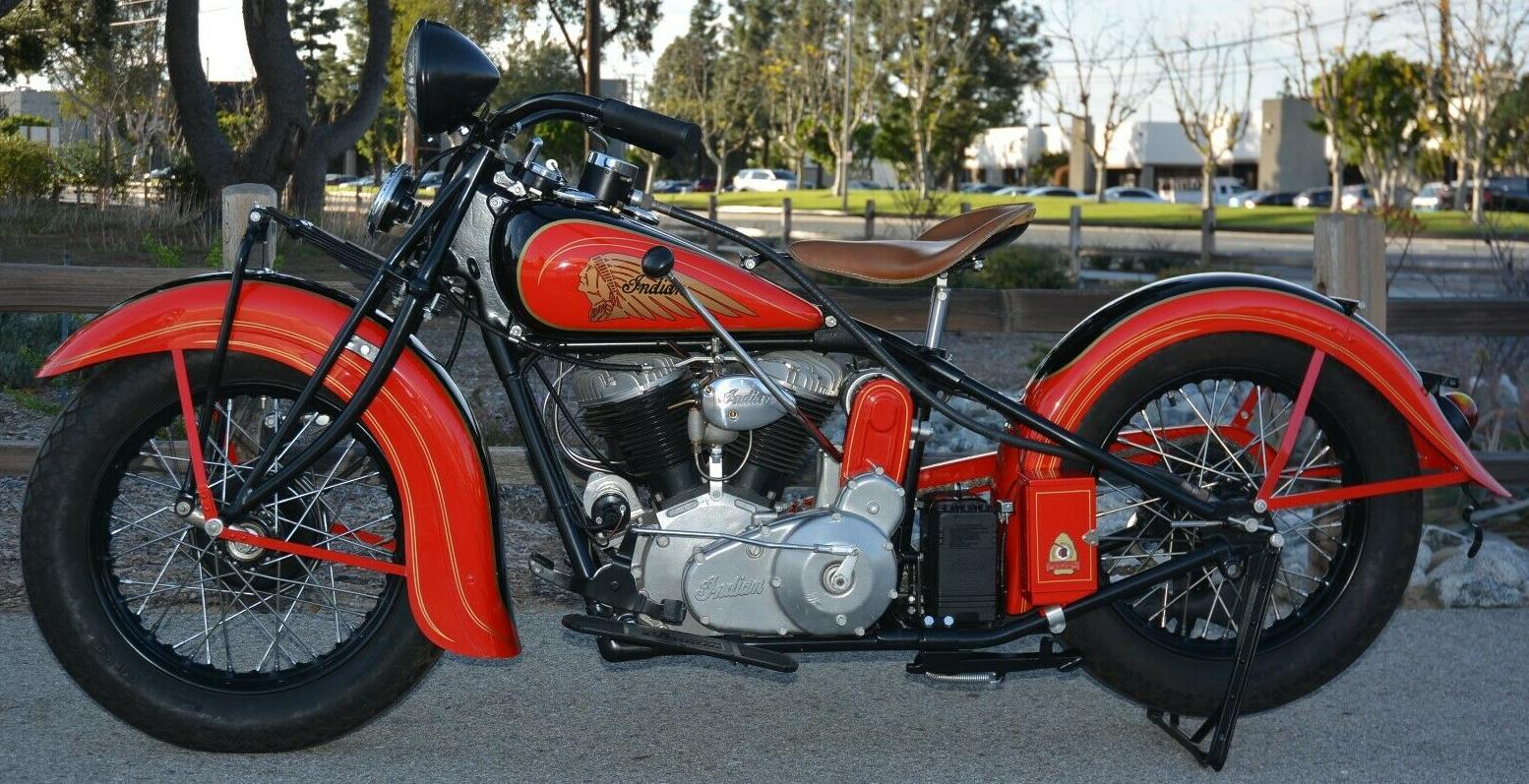

Indian-Chief, 1206cc, 2-cyl.
  1945, 19k image from Kruse International,
  1944, 20k image from Vehicles: Show & Sell Area,
  1942, 13k image from Trader Online,
  1941, 94k image from Kruse International,
  1940 Military, 14k image from Trader Online,

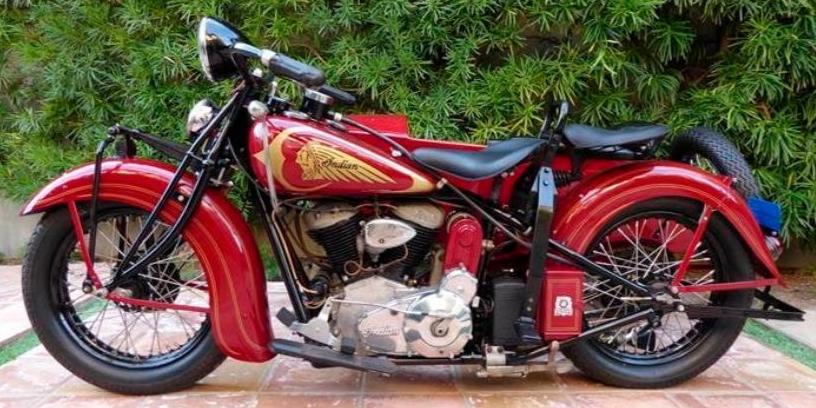

  1937, 55k image from Deals On Wheels,
  1935, 22k image from Kruse International,

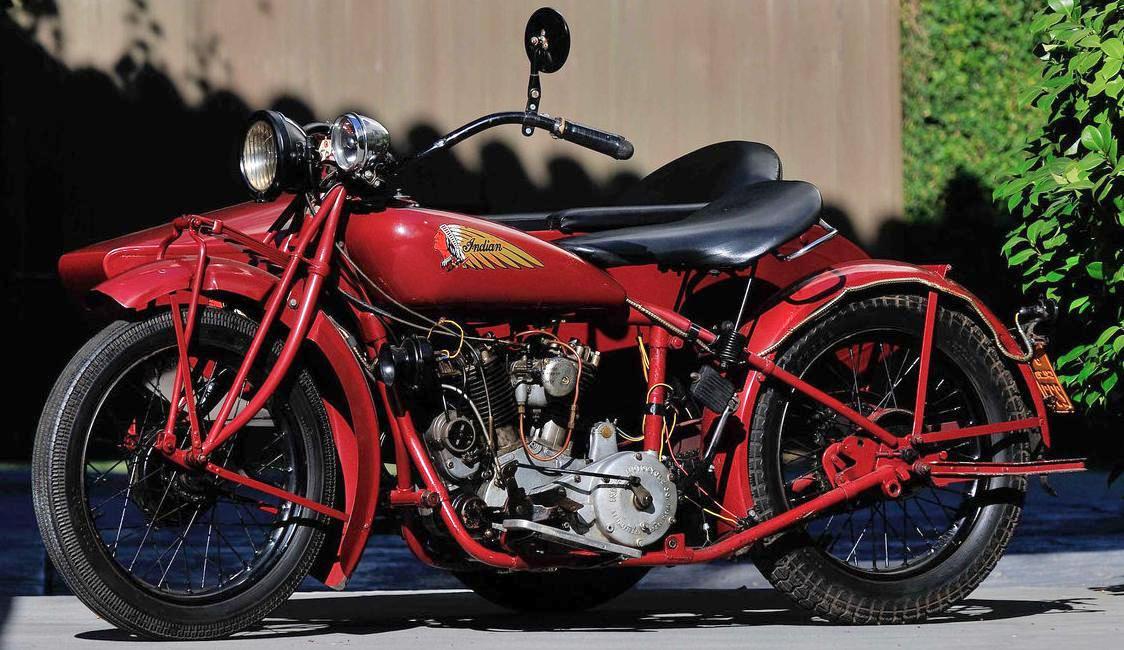

  1930, 111k image from "Svet Motoru" magazine, Czechoslovakia,
  1928, 18k image from Kruse International,

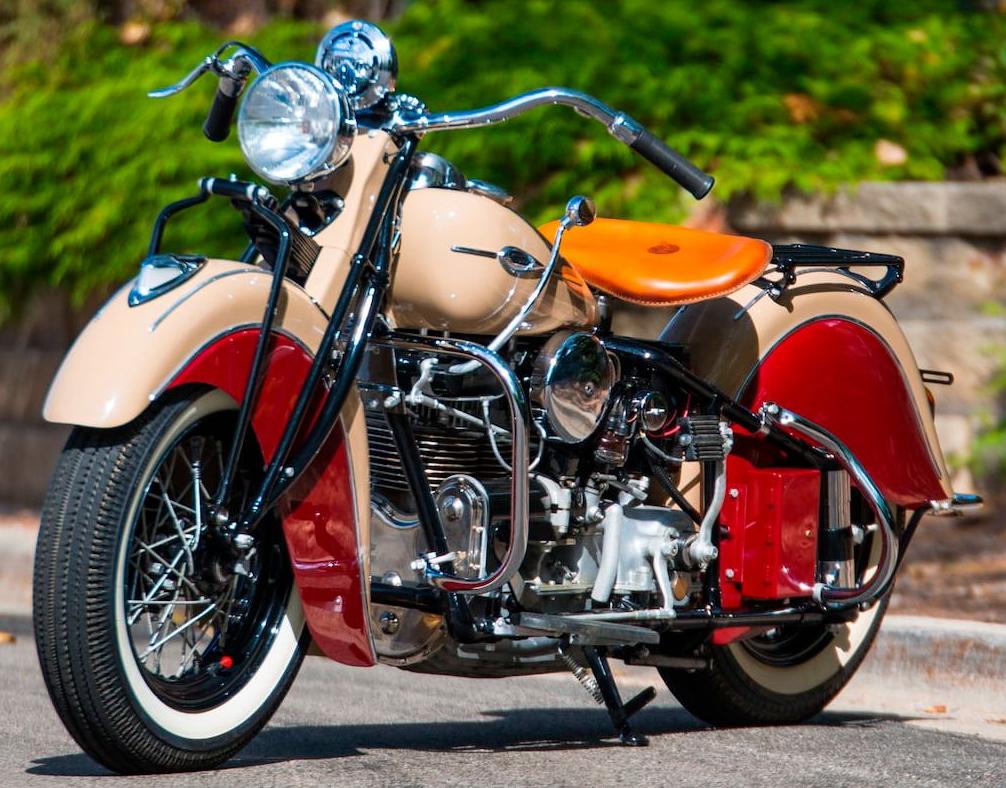

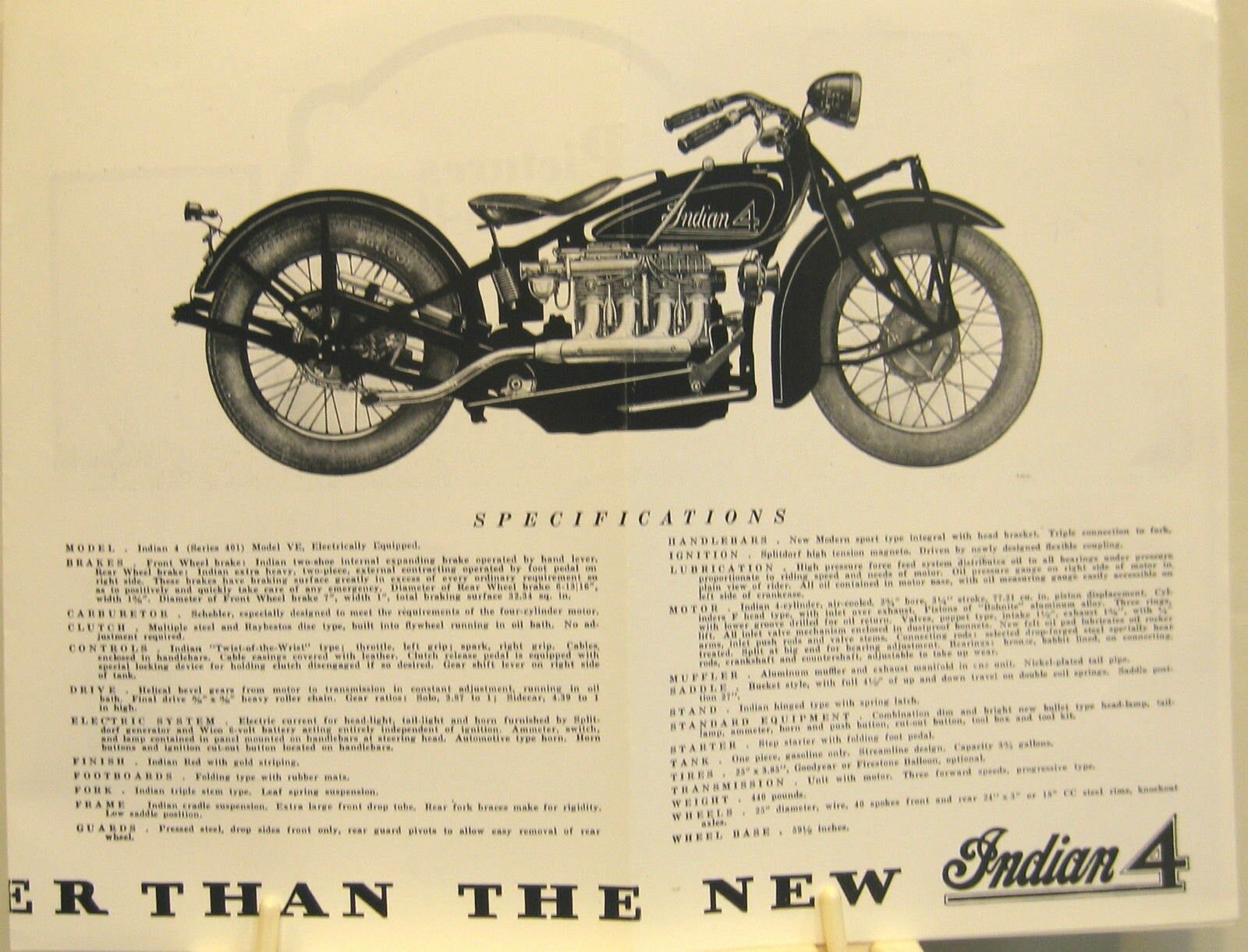

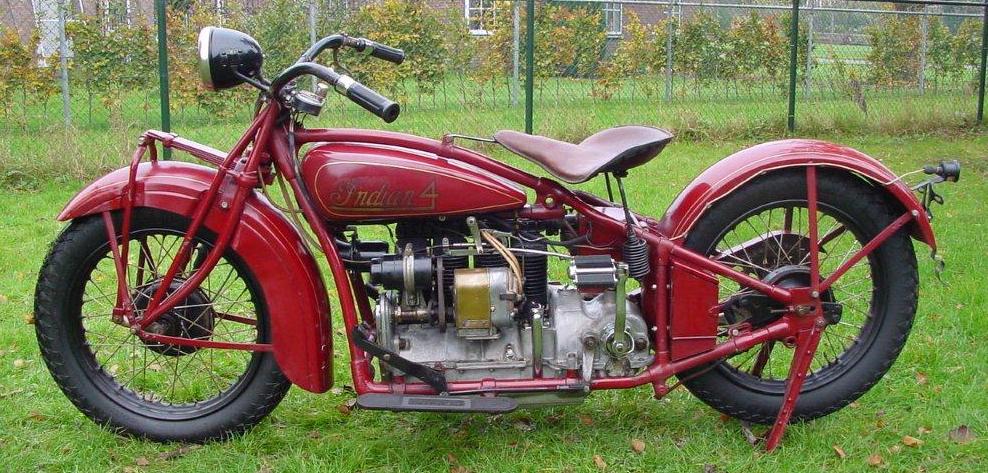

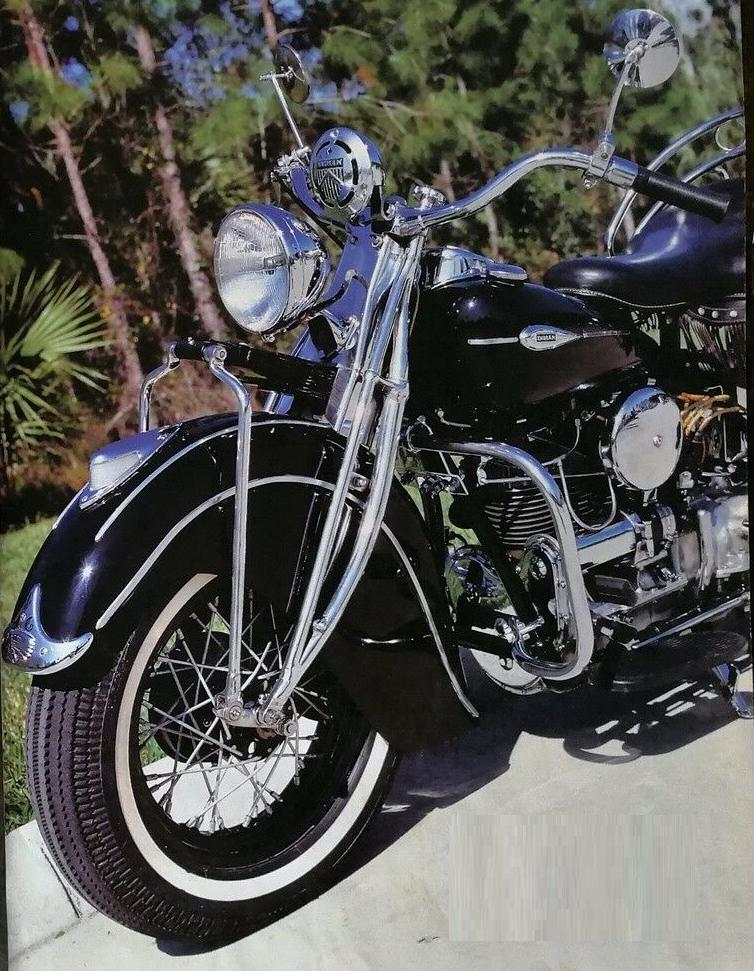

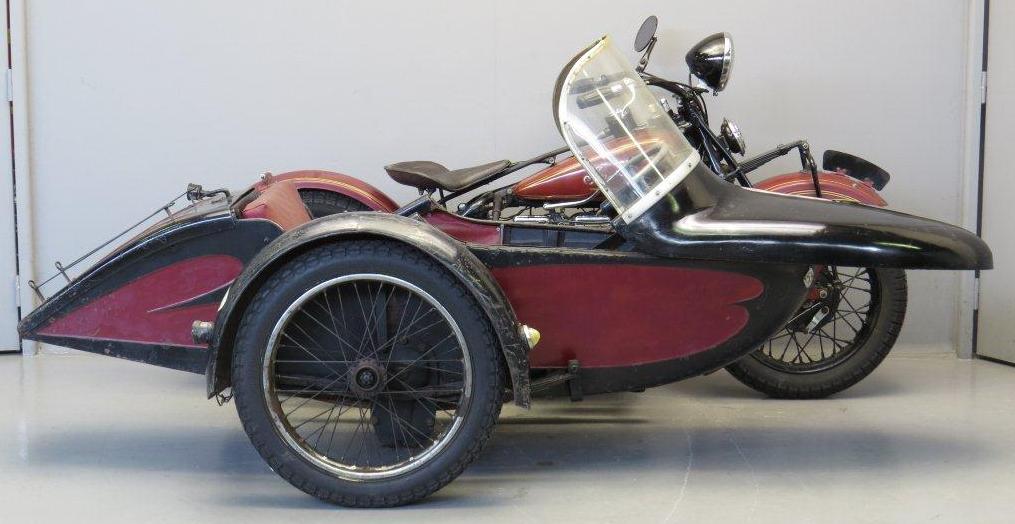

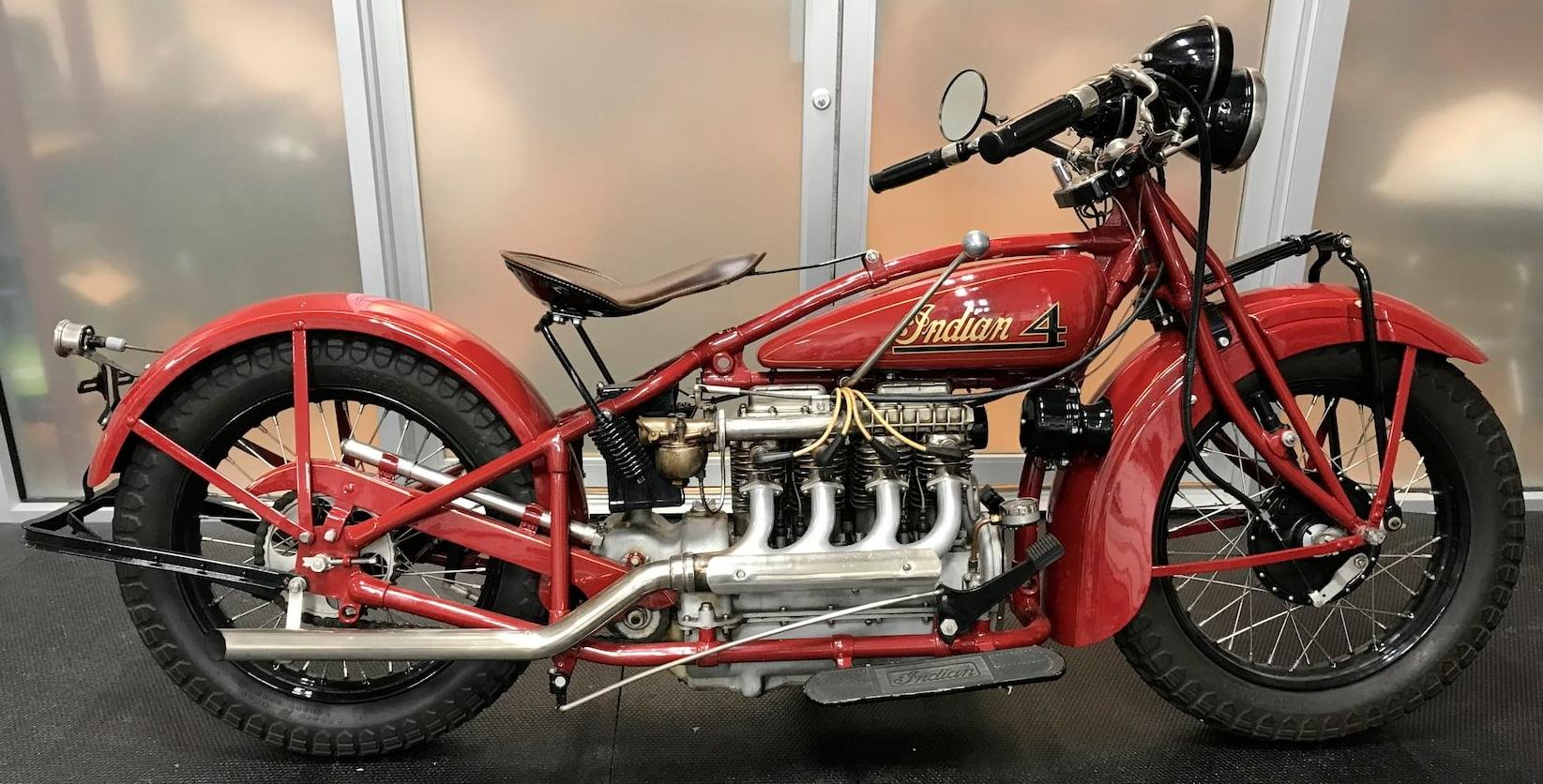

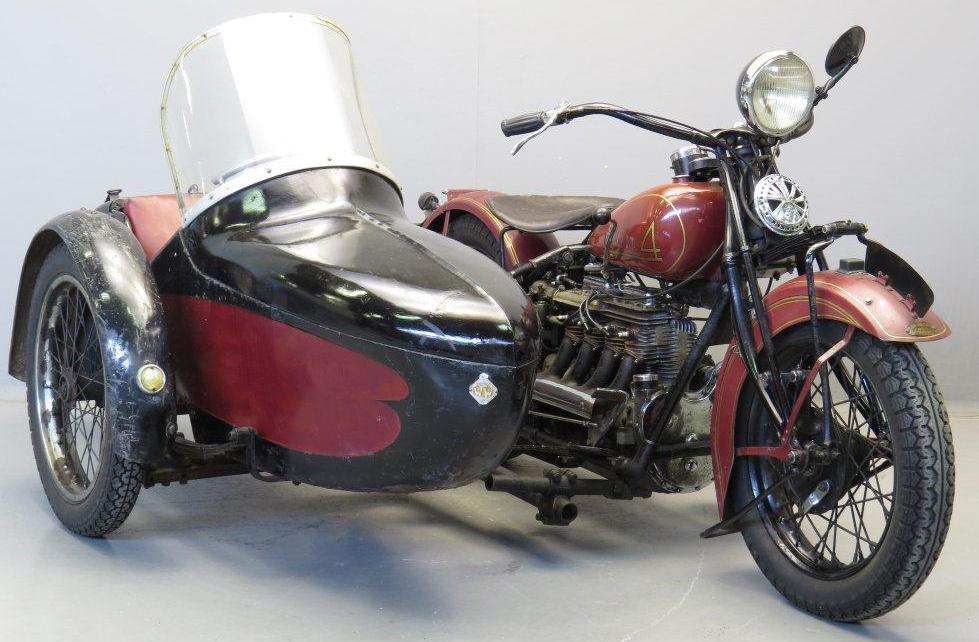

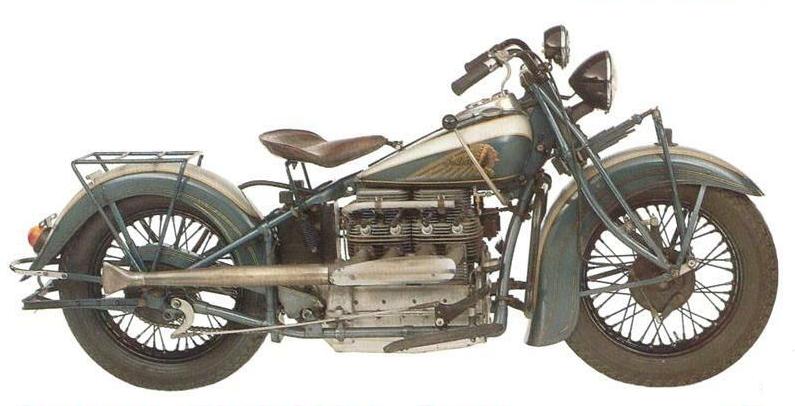

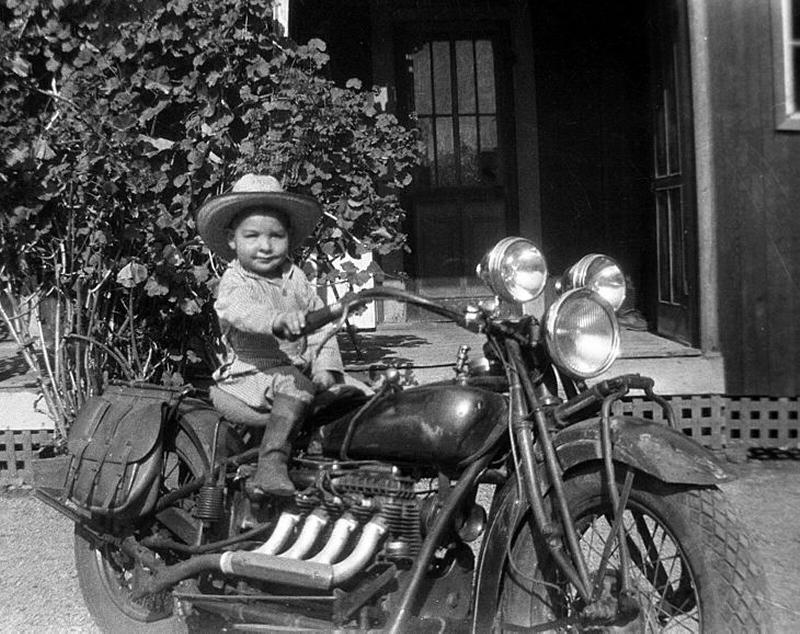

Indian-4, 1265cc, 4-cyl (until 1942).
  1941, 21k image from Kruse International,
  1940, 19k image and 17k image from Kruse International,

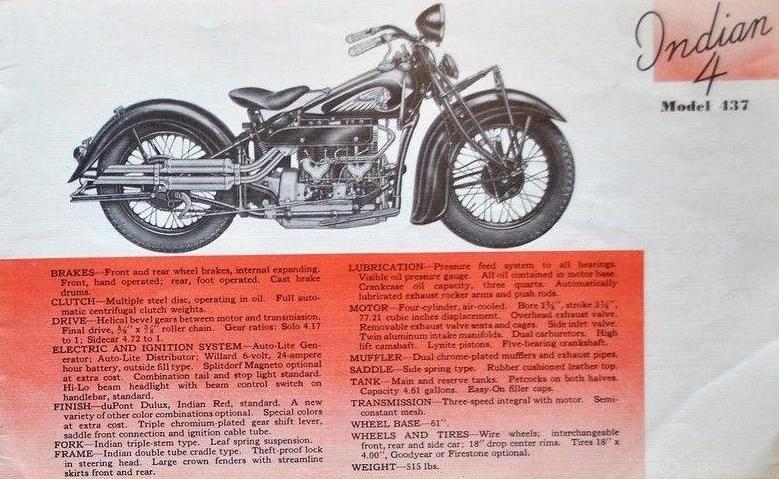

  1937 Sport 437, 112k image from "Svet Motoru" magazine, Czechoslovakia,
  1937, 47k image from MS Webmasters,
  1937, 21k image from Kruse International,
  1934, 17k image from MS Webmasters,
  1932, 9k image from Kruse International,

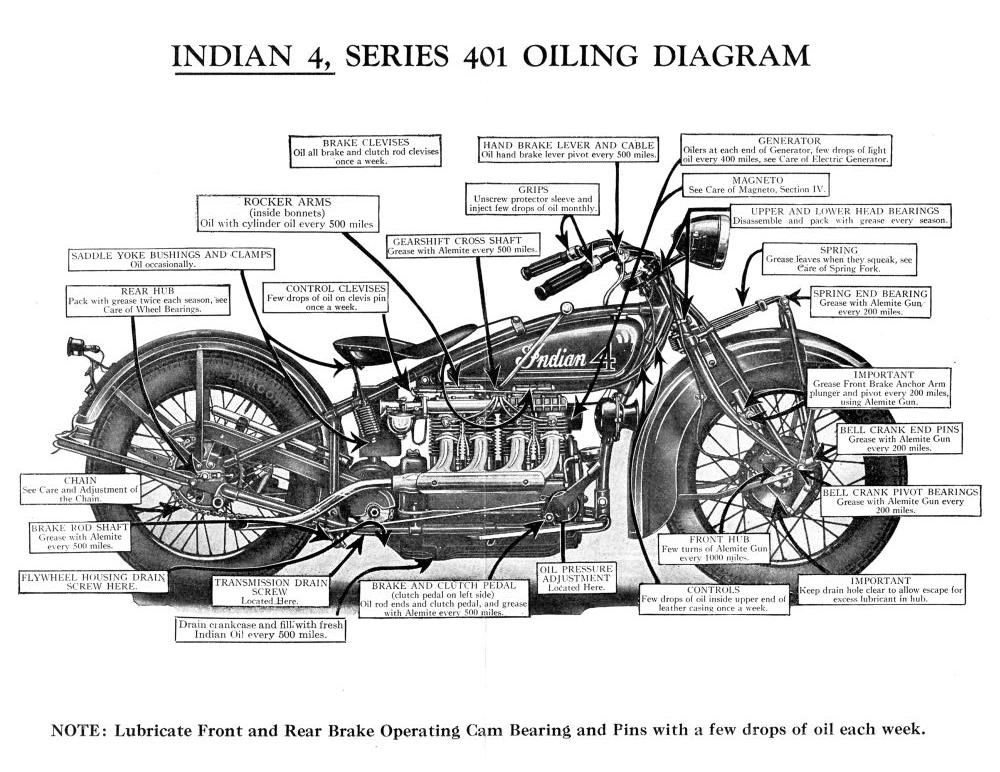

  1931, 34k image from Hemmings Motor News,

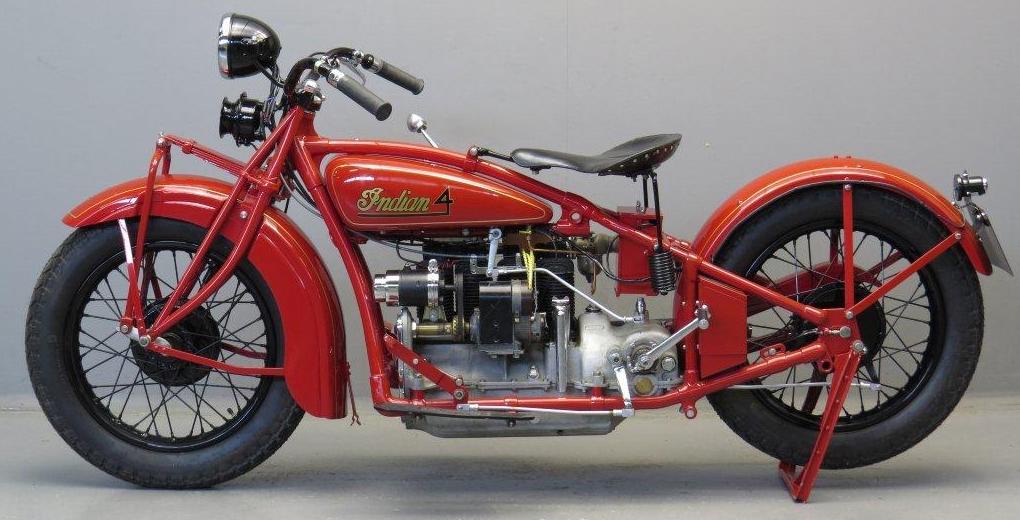

  1928, 26k image from The Highway One Classic,
1941 Indian-841, 29k image from MS Webmasters,
Indian Trike, 29k image from Technik Museum.
Old Indians:
  1917, 16k image from Kruse International,
  1916, 20k image from MS Webmasters,

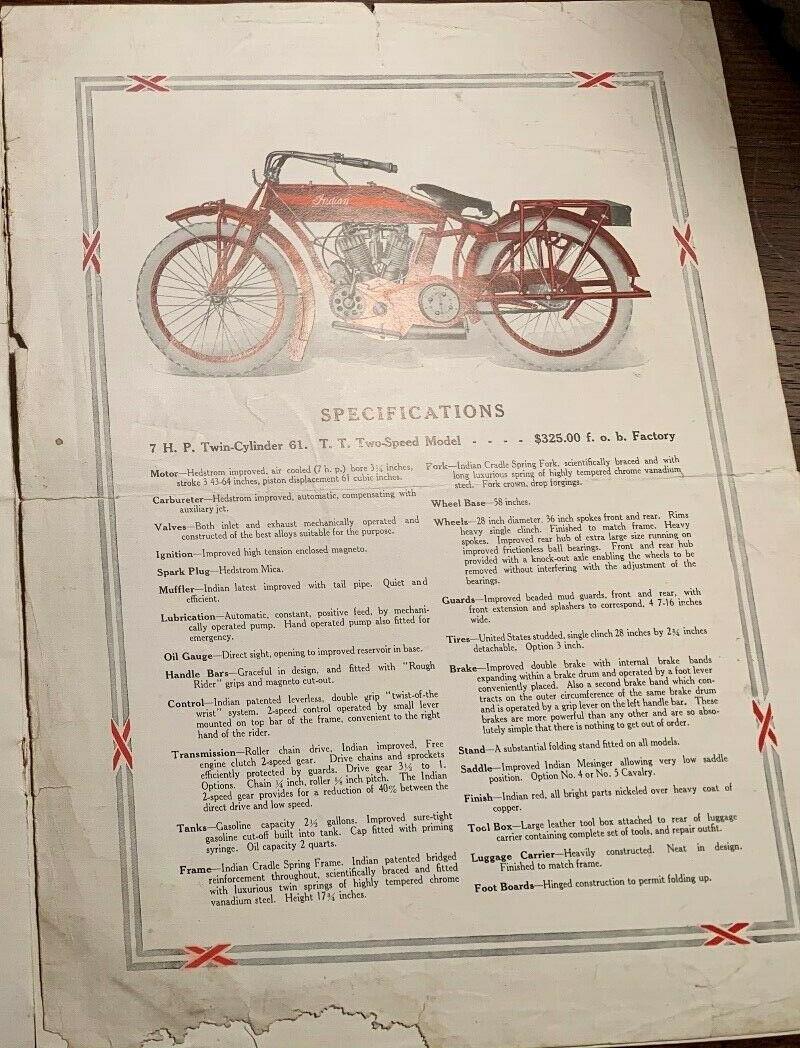

  1913 Indian TT twin 998,33 cc, 15k image from Kruse International,

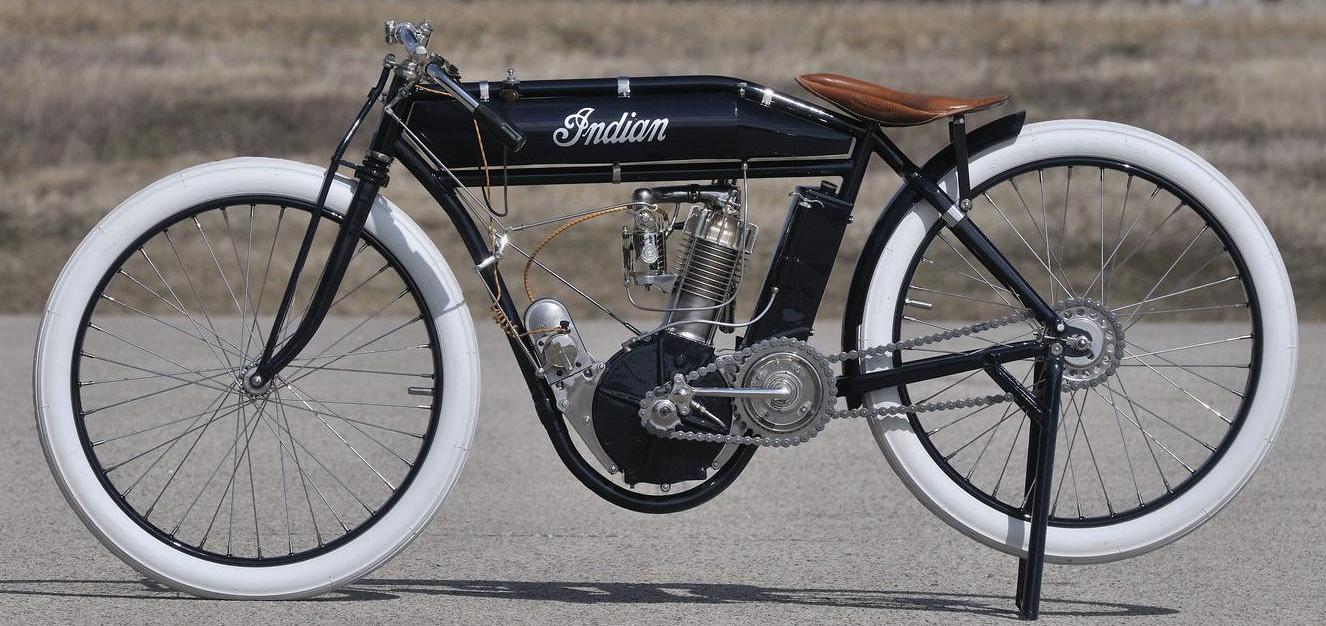

  1912 Indian twin, 16k image from Kruse International,

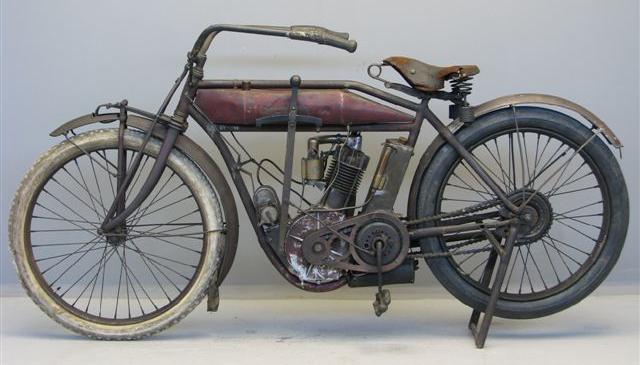

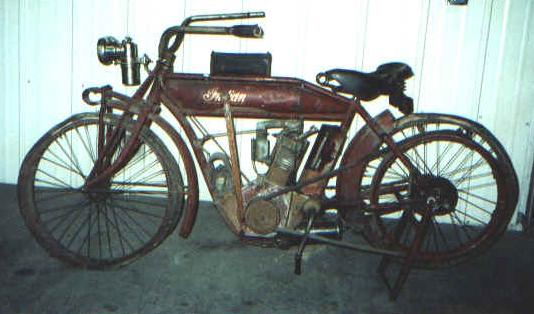

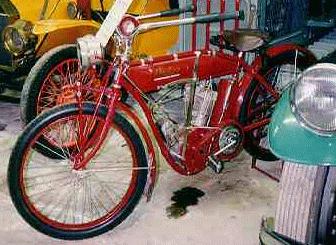

  1911 1-cyl., 26k image from Kruse International.
  1909 Indian single (first year of the loop frame, last year with the early style fork), 13k photo from Kruse International,   1908 Indian, 16k photo from Kruse International.
Photos and data are from:
Author's archive.
"Motorrad Markt" magazine, Germany.
Trader Online.
Carbuyer.com. (extincted link)
MS Webmasters. (extincted link)
The Highway One Classic. (extincted link)
Mobile.de.
eBay.
eBay Deutschland.
eBay Canada.
Kruse International. (no more oldtimer business)
Excite Classifieds. (extincted link)
Investment Bikes. (extincted link)
Klassisk Bil & MC. (extincted link)
Hemmings Motor News. (extincted link)
duPont REGISTRY.
Yesterdays antique motorcycles.
"Svet motoru" magazine, Czechoslovakia.
Bator International.
LuxuryAutoMotoSale.com.
MECUM Auctions.
PreWarCar.com.
Classic American Iron.
2040 motos.
Americanlisted.
Bonhams.
Vehicles-markets.com.
Bike-urious.
COYS.
"Popular Mechanics" magazine, 1924-1945.
Pastvu.com
oldthing
The Old Motor
Photos by Richard Spiegelman
Ted Tine Motorsports Inc.
Jim Parker Indian Motorcycles
Bring a Trailer
Classic American Iron
Kiwi Indian Inc.
WorthPoint
Ed Youngblood's Motohistory

Dutch Indian Motorcycle Club (in English) (extincted link)
thecybermuseum.com (in English) - site of Dave Schultz (USA), owner of 27 Indian motorcycles. (extincted link)

What else in the net:
Vintage American Motorcycles.
Jim Parker Indian Motorcycles
Kiwi Indian Inc.

Thanks for help to:
Evgenii Pevzner (Moskva), motorcycle historian,

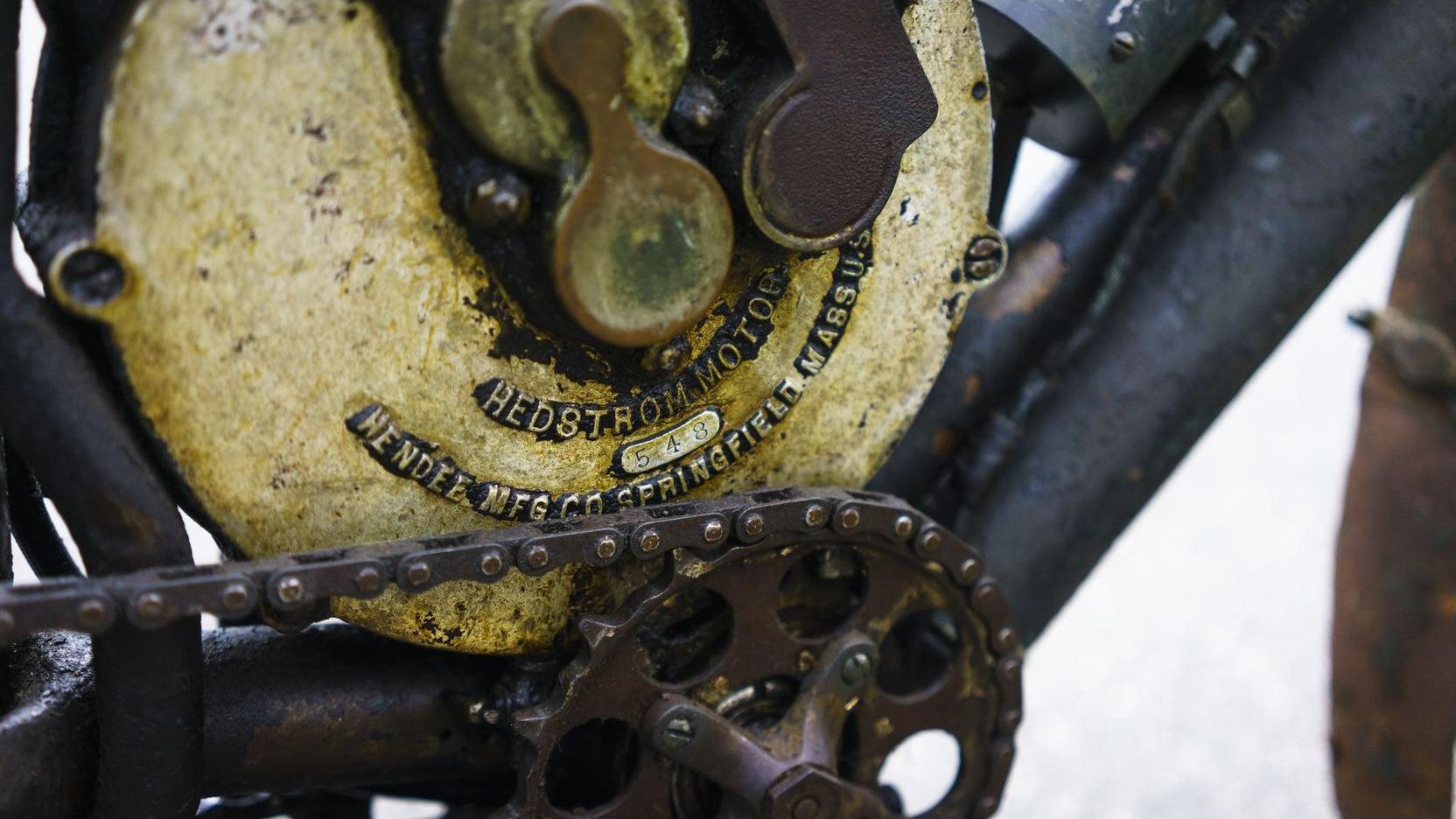

Mike Carver (Washington (state), USA), big admirer of Indian motorcycles and the owner of 1908 Indian. It is the diamond frame model with the high performance magneto ignition single cylinder (big bore) and fully mechanical intake valve. Mike needs following parts: magneto (open type Bosch), Hedstrom or other pre- 1910 carburator, handlebars, compensating clutch or 1911-13 Indian free engine clutch, and linkages or patterns to copy (20 IX 1999).
Thanks to all authors of books, articles and internet resources, to photographers - contemporary and old, to restorers and collectors!
You are welcome to write me by E-mail Contact. Andrei Bogomolov.
