Oldtimer picture gallery. Trucks. Indian.
1929-1953, Indian Motocycle Co., Springfield, Massachusetts, USA.
?-1906-1907-?, Hendee Manufacturing Co., Springfield, Massachusetts, USA.
Entrance   Gallery    Trucks   Indian cars    Indian motorcycles    Indian bicycles   Indian trailers
For commercial sidecars see Indian motorcycles.

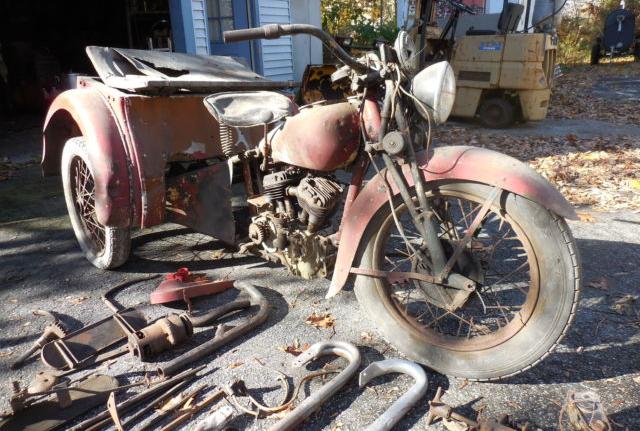

Indian Dispatch-Tow (3-wheeler)
(Sport Scout engine), 1934 - 1942, V2-cyl. SV (flathead), 45,44 cu in (744,7cc), 3-speed gearbox, 22hp/?rpm, ? mph (? km/h), ? built
(Scout Pony engine), 1934, V2-cyl. SV (flathead), 30,07 cu in (492,7cc), 3-speed gearbox, ?hp/?rpm, ? mph (? km/h), ? built
(Motoplane engine), 1933, V2-cyl. SV (flathead), 45,44 cu in (744,7cc), 3-speed gearbox, ?hp/?rpm, ? mph (? km/h), prototype(?) built
(101 Scout engine), 1931 (- 1932?), V2-cyl. SV (flathead), 45,44 cu in (744,7cc) or 36,38 cu in (596,2cc), 3-speed gearbox, 18hp/?rpm, ? mph (? km/h), ca. 400 built
External difference by years:
images
1931

101 DT, many differences with later models
28k
29k
134k
33k
1933 D.T. 13? , many differences with later models 17k primary
chain cover
distributor ignition
and 1936-1937
"T" oil lines
gear shift
lever position
instrument
panel
other differences
1934
D.T. 12, (30-50" motor) less body and tow bar, 310$
D.T. 13, ?
D.T. 14, (45" motor) less body and tow bar
D.B. 101, open natural finish wood body, 16$
D.B. 102, closed hinged cover metal body, 27$
Tow bar with all attachments, 13$
48k
71k
66k
1935

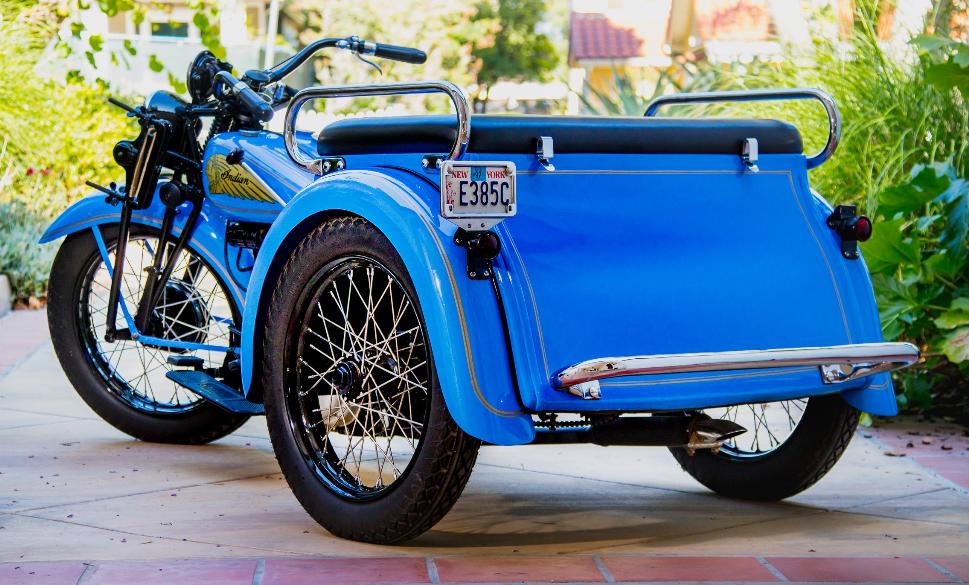

DT-15, steel body, less tow bar
DT-16, steel body, with tow bar
DT-17, steel body, with tow bar, +2 seaters pad, hand holds
DT-18, large body, with tow bar
DT-19, large body, with tow bar, +2 seaters pad, hand holds
131k DT-17
116k DT-17
5k DT-19

no distributor
heavier front fork
chain-driven generator
triple-row primary chain
1936
DT-20, steel body, less tow bar, +2 seaters pad, hand holds
DT-21, steel body, with tow bar
DT-22, steel body, with tow bar, +2 seaters pad, hand holds
DT-23, large body, with tow bar
DT-24, large body, with tow bar, +2 seaters pad, hand holds
231k DT-20
126k DT-20
as 1935
Auto-Lite distributor
onion-shaped
gear shift knob
new rear light
"bayonet" tank caps
1937

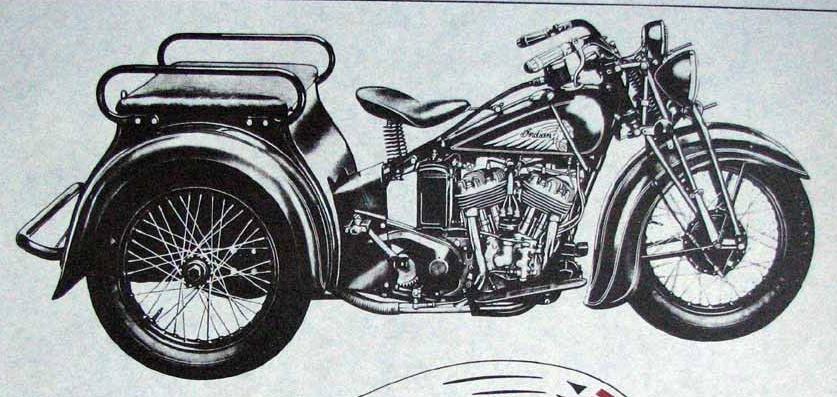

DT-25, steel body, less tow bar, +2 seaters pad, hand holds
DT-26, steel body, with tow bar
DT-27, steel body, with tow bar, +2 seaters pad, hand holds
DT-28, large body, with tow bar
DT-29, large body, with tow bar, +2 seaters pad, hand holds

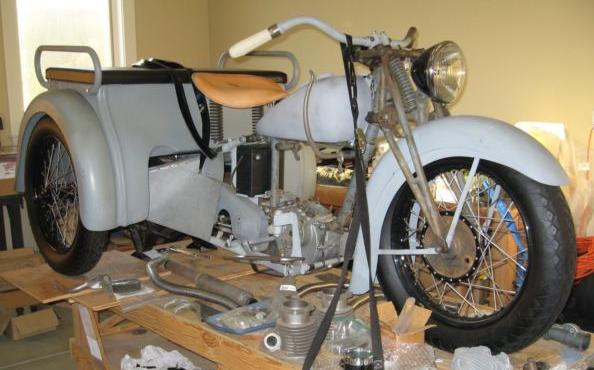

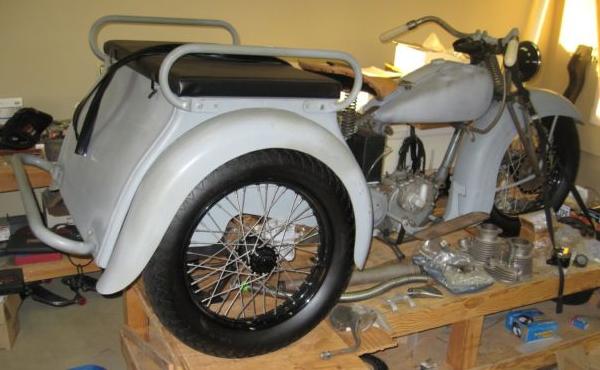

39k DT-25
37k DT-25
78k DT-27
187k DT-28
165k DT-28
65k DT-29
10k DT-29
as 1935as 1936 deep skirt of
front fender
1938
DT-30, steel body, less tow bar, +2 seaters pad, hand holds, 545$

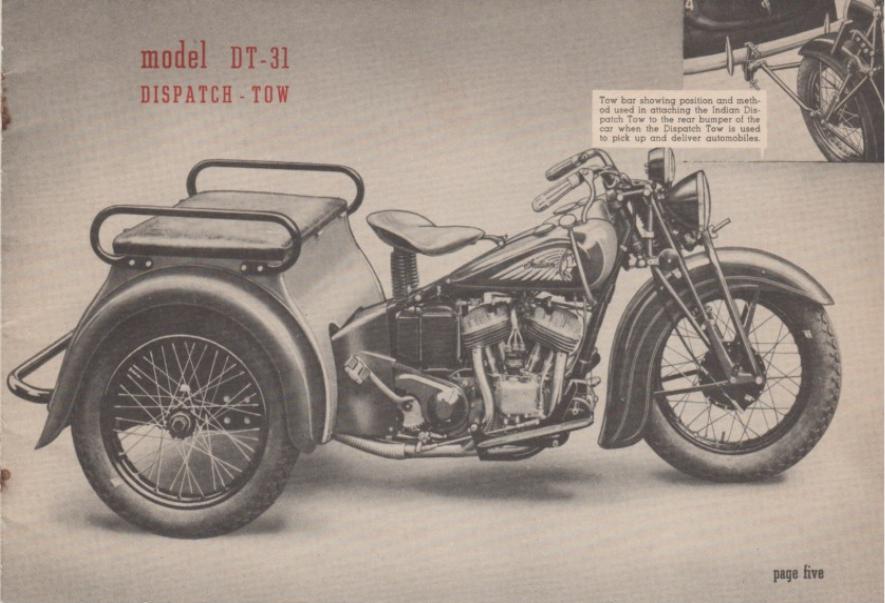

DT-31, steel body, with tow bar, +2 seaters pad, hand holds, 560$
DT-32, large body, less tow bar, 560$
DT-33, large body, with tow bar, 575$
Magneto ignition - 20$ Extra
27k DT-30
66k DT-31
58k DT-32
16k DT-33
new oil pump
images air cleanerfork stiffness
adjuster
fendersheadlight holderother differences
193880k
(Irene Dunne
and
Cary Grant)

air horn
1939

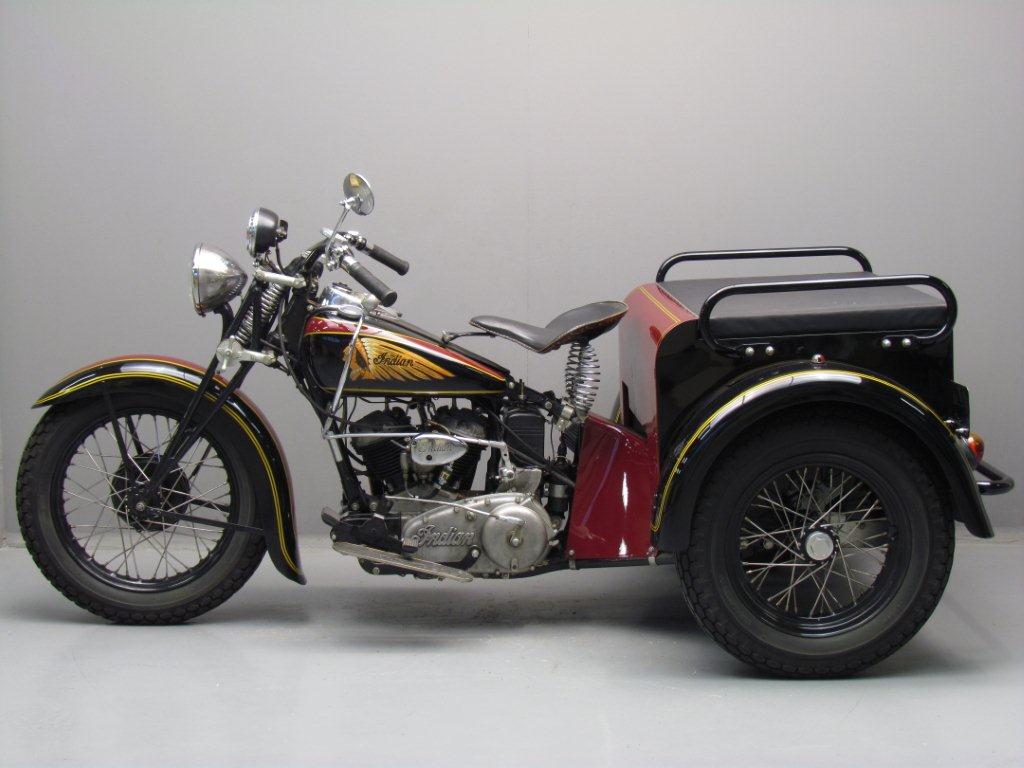

DT-35, steel body, less tow bar, +2 seaters pad, hand holds, 515$
DT-36, steel body, with tow bar, +2 seaters pad, hand holds, 530$
DT-37, large body, less tow bar, 530$
DT-38, large body, with tow bar, 545$
Magneto ignition - 20$ Extra

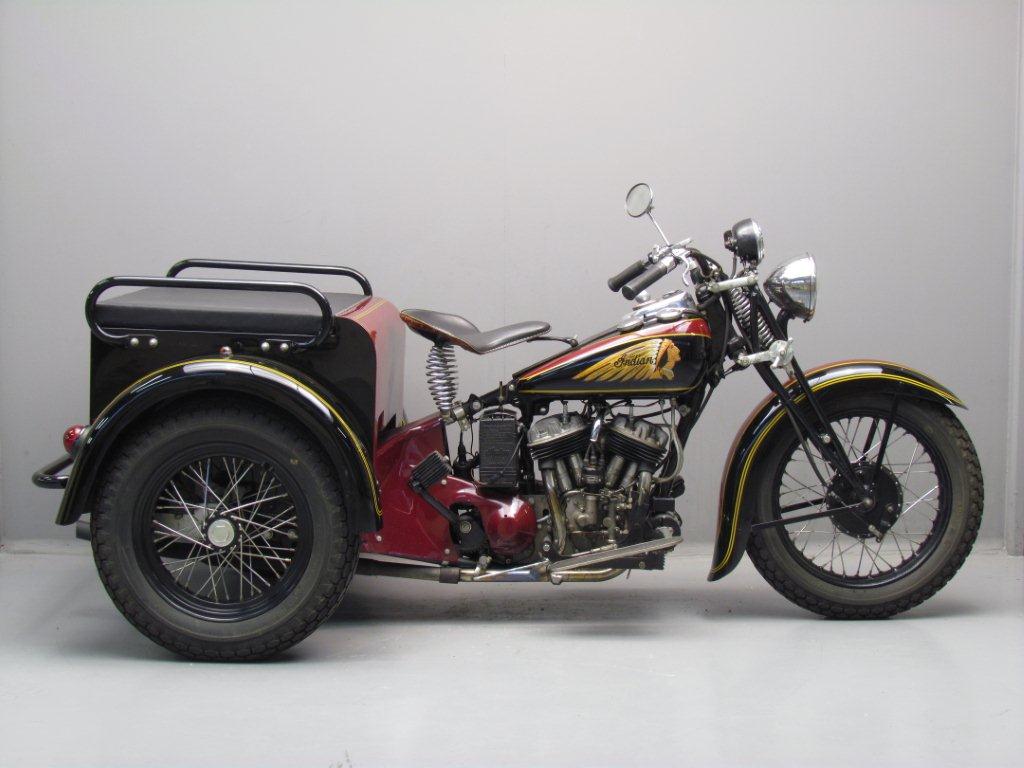

79k DT-35
74k DT-35
9k DT-36
87k DT-37
84k DT-37

air cleaner
1940

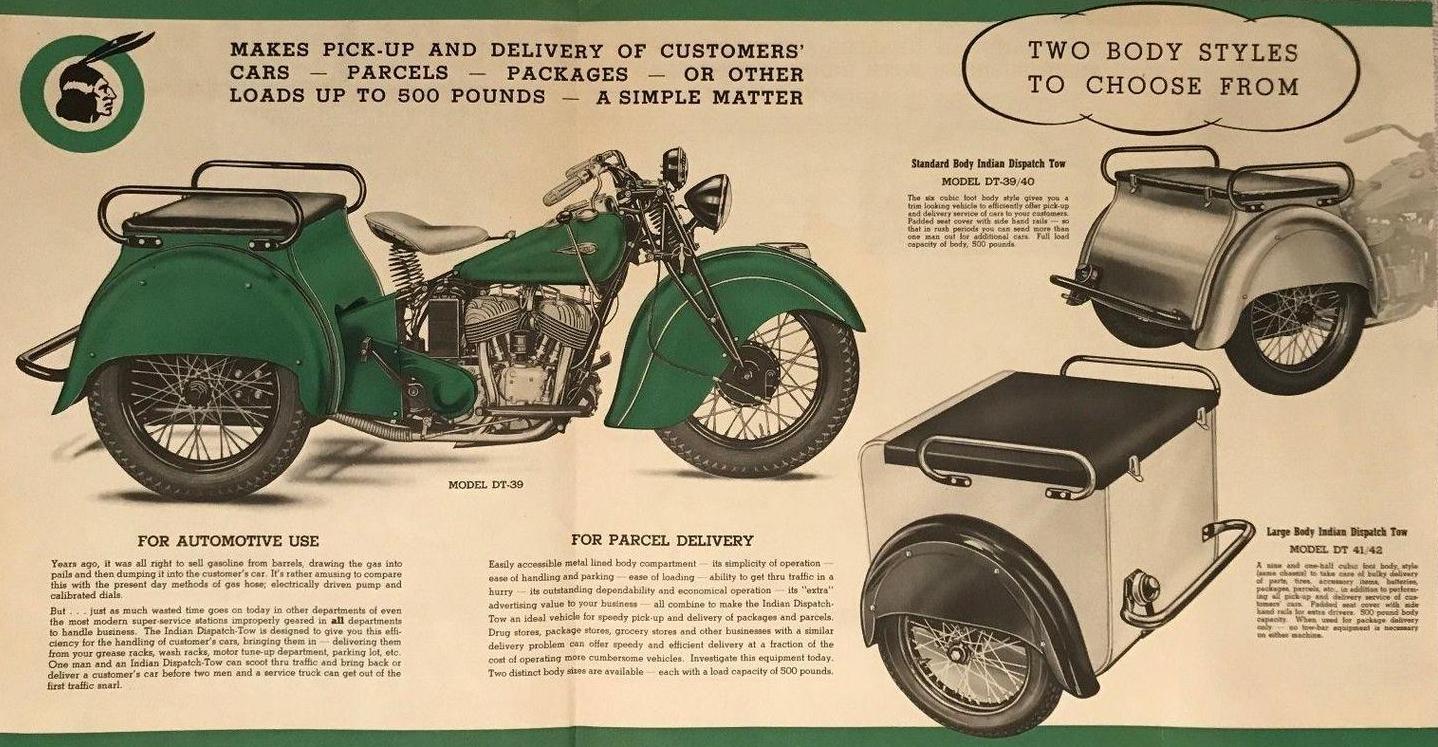

DT-39, steel body, less tow bar, +2 seaters pad, hand holds
DT-40, steel body, with tow bar, +2 seaters pad, hand holds
DT-41, large body, less tow bar
DT-42, large body, with tow bar
Magneto ignition - ?$ Extra
206k DT-39
72k DT-40
1941
DT-43, steel body, less tow bar, 525$
DT-44, steel body, with tow bar, 540$
DT-45, large body, less tow bar, 540$
DT-46, large body, with tow bar, 555$
Reverse gear - 13,50$ Extra
Magneto ignition - ?$ Extra
102k DT-43

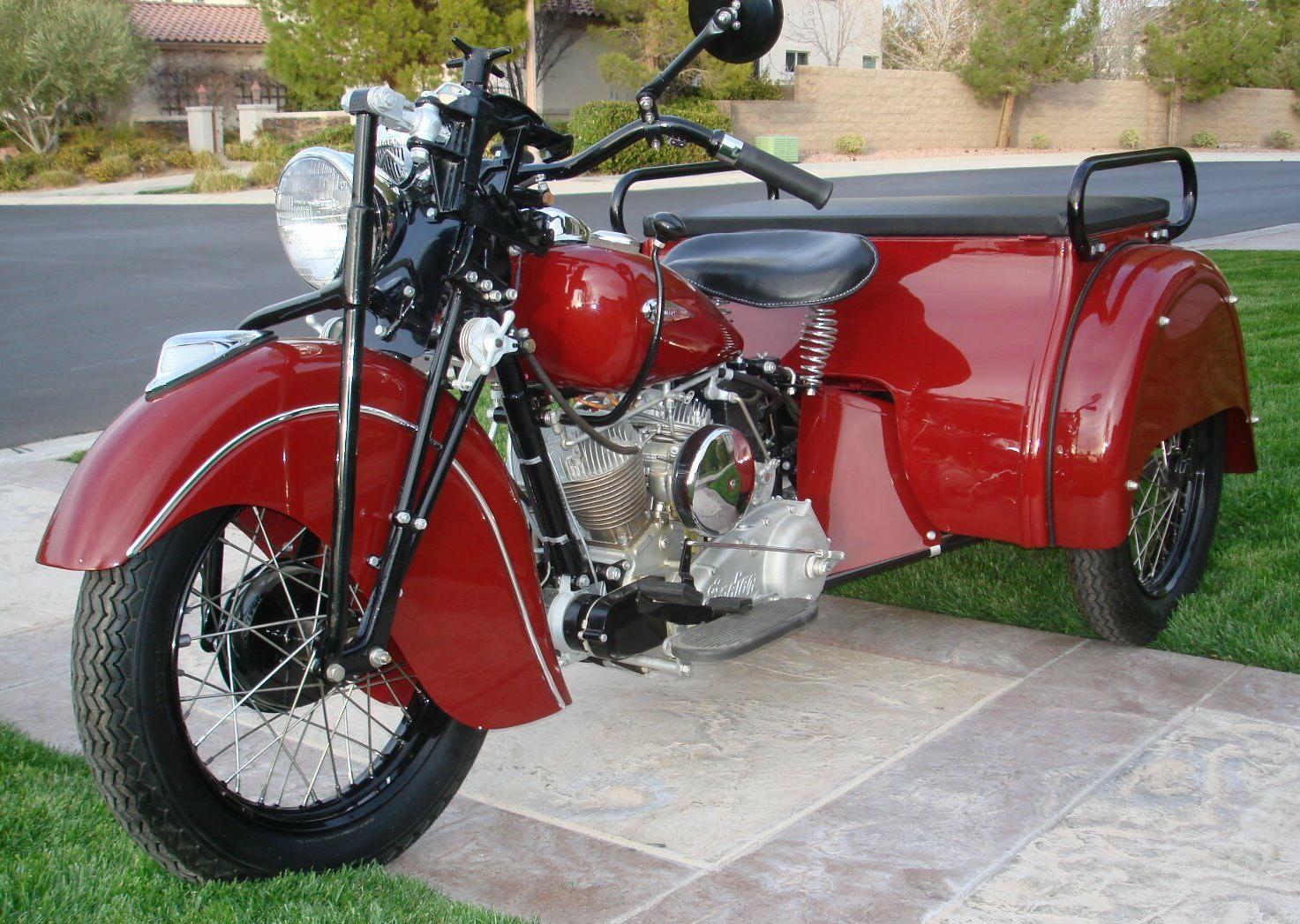

277k DT-44
191k DT-44
122k DT-46
76k DT-46
word OIL on oil cap
1942
DT-47, steel body, less tow bar
DT-48, steel body, with tow bar
DT-49, large body, less tow bar
DT-50, large body, with tow bar
8k DT-48
29k DT-50
tank emblem:

early 1942 used
1940 emblem,
no other visible
difference,
civilian production
ceased on February 9.
1941:
motor Nr. FDA101-up
frame Nr. 641101-up
1942:
motor Nr. FDB101-up
frame Nr. 642101-up

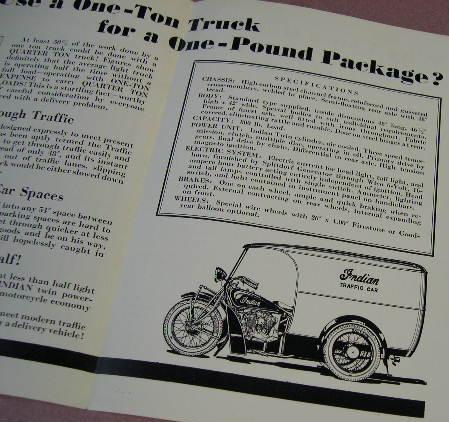

Indian Traffic Car (3-wheeler, 1200-1800 pounds payload (incl. body))
(Scout 37 engine), 1929 - 1930, V2-cyl. SV (flathead), 36,380 cu in (596,16cc), ?-speed gearbox, 18hp/?rpm, ? mph (? km/h), ? built
(Scout 45 engine), ? - 1934 - 1937, V2-cyl. SV (flathead), 45,443 cu in (744,67cc), ?-speed gearbox, 22hp/?rpm, ? mph (? km/h), ? built
(Chief engine), 1938 - 1940, V2-cyl. SV (flathead), 73,625 cu in (1206,50cc), ?-speed gearbox, 30hp/?rpm, ? mph (? km/h), ? built
For external difference by years see Indian Scout, Chief
images

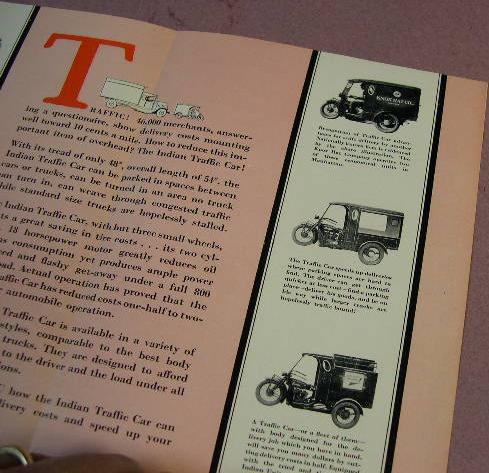

1929
Traffic Car
41k
59k
50k
1930
Traffic Car
44k
158k
1934
Traffic Car
T.C. 12, 475$
(less body)
1935
Traffic Car
T.C. 13, ?$
45k
39k

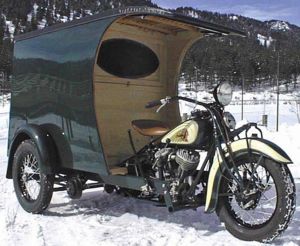

1936
Traffic Car
T.C. 14, ?$
29k
1937
Traffic Car
T.C. 15, ?$
1200 pounds
10k
1938
Traffic Car
T.C. 16, 581$
(less body)
M.T.C. 16, 581$
(short base,
less body)
magneto
ignition - +15$
119k M.T.C. 16
113k T.C. 16
113k (1944 photo)
9k T.C. 16
7k T.C. 16
7k M.T.C. 16
6k T.C. 16
1939
Traffic Car
T.C. 17, 550$
(less body)
M.T.C. 17, 550$
(short base,
less body)
225k T.C. 17
4k M.T.C. 17
1940
Traffic Car
T.C. 18, ?$
M.T.C. 18, ?$
(short base)
120k T.C. 18

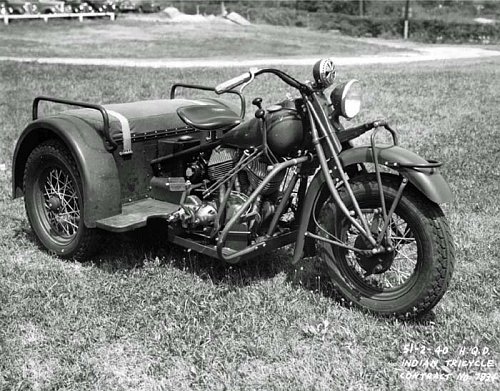

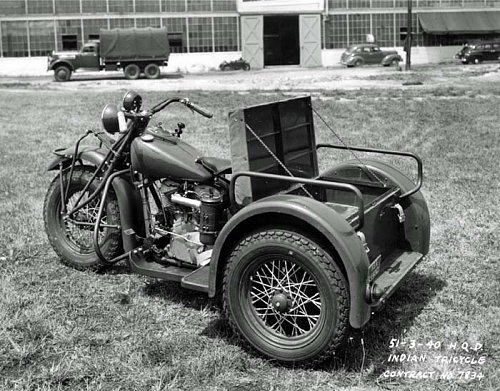

76k M.T.C. 18
74k M.T.C. 18

Indian Delivery Van, ? - 1906 - 1907 - ?, 1-cyl. F-head, 17,6 cu in (288cc) 21/4hp, 1-speed, 24k photo (1906), 161k photo (1906), 20k photo (1906), 291k (1907).

Legetøj, 173k photo
