Zündapp KS750

Years of production: (1939 pre-series) 1940 - 1948
Overall production: appr. 18695 units
3x2 military motorcycle with sidecar wheel drive
Engine: 26hp/4000rpm, opposite OHV 2-cyl, 4-stroke 751cc
Bore/Stroke: 75/85 mm
Compression ratio: 6,2 : 1
Length: 2385mm, width: 1650mm, height: 1010mm
55k photo of Zündapp KS75038k photo of Zündapp KS75069k photo of 1942 Zündapp KS750Wheelbase: 1410mm
Gearbox: 4 foot + 1offroad hand + 1back speeds
Weight: 420 (400?) kg
Cardan
Maximal speed: 95 km/h, minimal - 3 km/h
Tyres: 4,50/4,75-16 inches, offroad
Fuel tank capacity: 23 L
Petrol consumption: 7 L/100km (highway), 9 L/100km (offroad).
Production numbers by Hans-Peter Hommes:

Production year Produced Serial Numbers 1939 2 (Pre-series) 1940 7 600 000 - 600 006 1941 288 600 007 - 600 295 1942 7.228 600 296 - 607 523 1943 7.131 607 524 - 614 654 1944 3.515 614 655 - 618 169 1945 115 618 170 - 618 284 1946 205 620 001 - 1947 76 1948 68 620 349

What else in the net:
WEHRMACHTSGESPANNE by Hans-Peter Hommes (Germany) (in German/French/English) - real specialist's site.
Restoration, parts. Hans-Peter is an author of excellent brochure, devoted to Zündapp-KS750 and BMW R-75.
Their club organizes annual journeys to different countries on their bikes.
http://www.iptelecom.net.ua/~viking/ (in few languages) - high level restoration and trade of Zündapp-KS750, BMW R-75

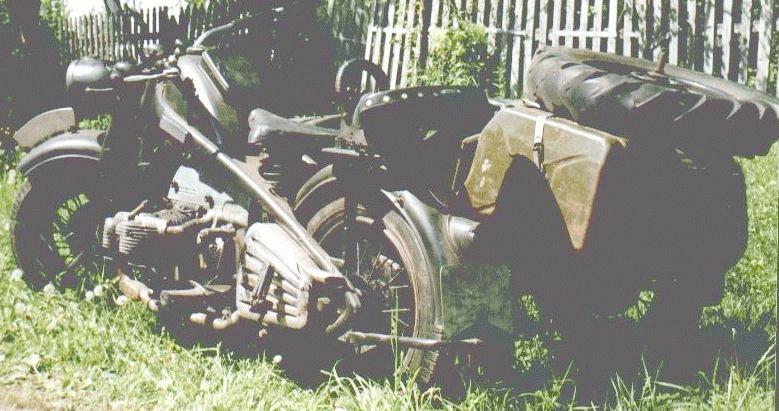

and Harley-Davidson WLA-42 in Ukraine. These are their KS750 on this page, only one (on the rearview) is Moscow bike,
