Oldtimer picture gallery. Motorcycles. Triumph-S350.

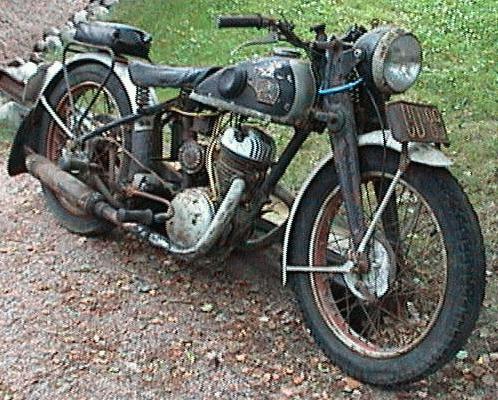

64k photo of 1938? Triumph-S350 of Petteri Nykänen44k photo of 1938? Triumph-S350 of Petteri Nykänen

Years of production: 1936 - 1938
Overall production: ? units
Engine: 11hp/4200rpm, 1-cyl, 2-stroke 346cc
Bore/Stroke: 72/85 mm
Compression ratio: ?
Carburettor: Amal 76/005
Length: 214cm, width: 74,5cm, saddle height: 690cm
76k photo of Triumph-S35072k photo of Triumph-S350Wheelbase: ?mm
Gearbox: 4 speed
Ratios: I - 17,32; II - 10,5; III - 7,19; IV - 5,25
Weight: 135 kg
Maximal speed: 100 km/h
Tyres: 26 x 31/4 inches
Fuel tank capacity: 12 L

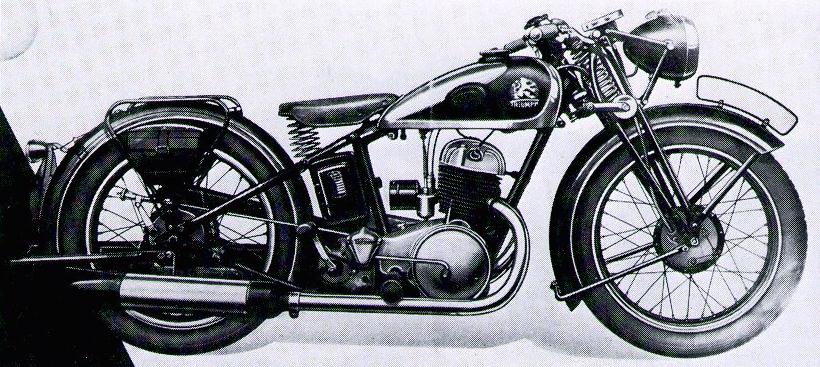

97k photo of 1936 Triumph-S35063k photo of Triumph-S350Fuel consumption: 3,8 Ltr./100km at 60 km/h, 2,8 Ltr. on straight and even road
Photos are from:

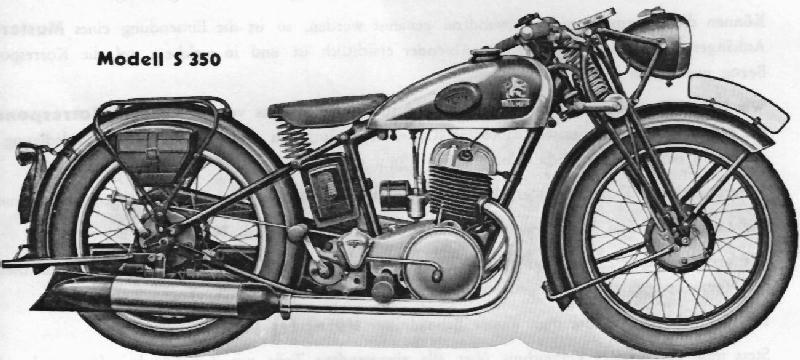

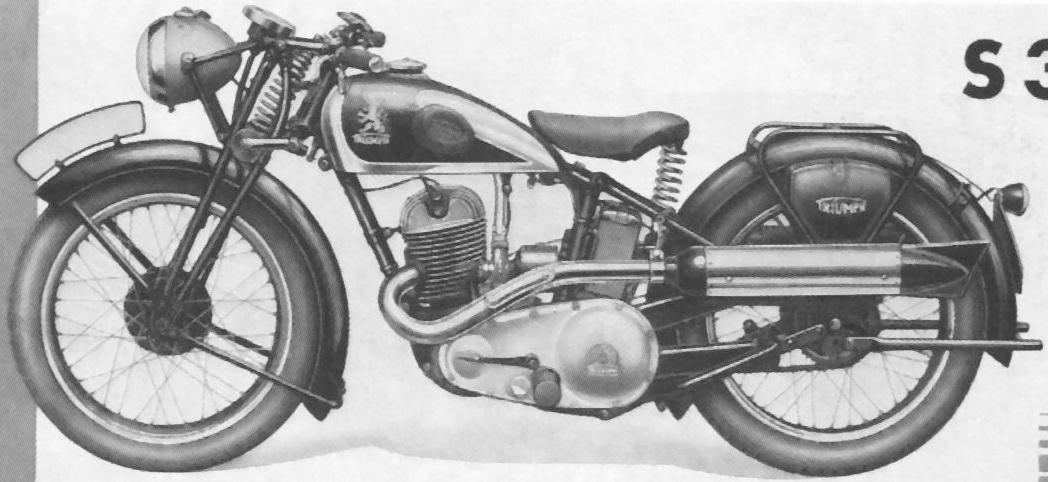

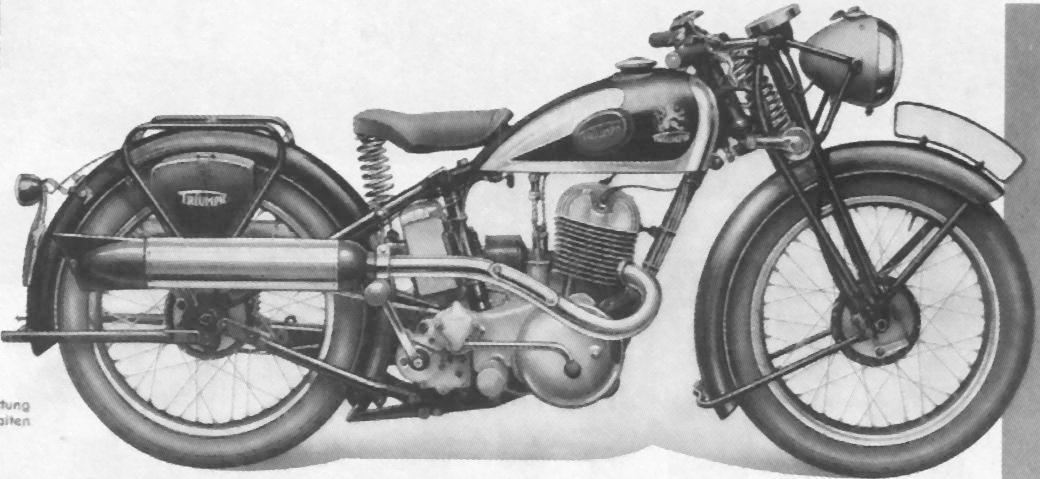

Triumph Parts Catalog for B200/B200L/B200LF/S350,
Tilman Werner's book "Von Ardie bis Zuendapp" (Stuttgart, 1993).
Thanks for help to Ernst Kristiansen (Skive, Denmark). Ernst is seeking for parts to restore his Triumph S350. Who is able to help?
These color photos arrived from Petteri Nykänen (Finland). Petteri is seeking for other owners of this model. Do you have "Parts catalog" or color photos of "S350"? Please share this information with Petteri.
If you have anything to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
