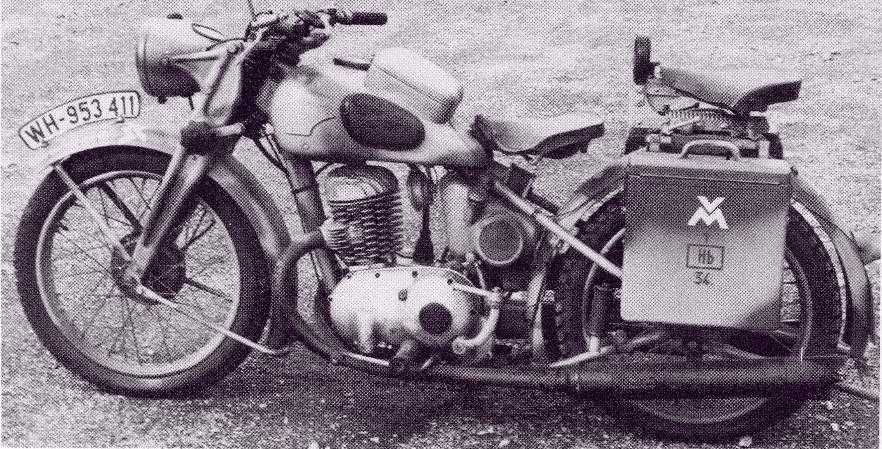

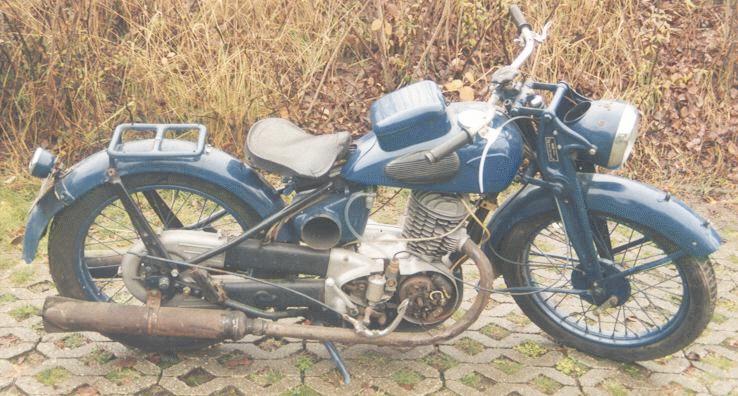

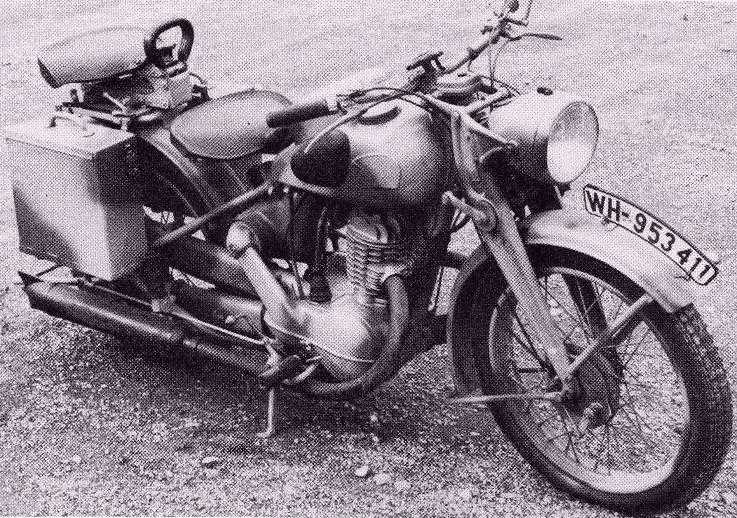

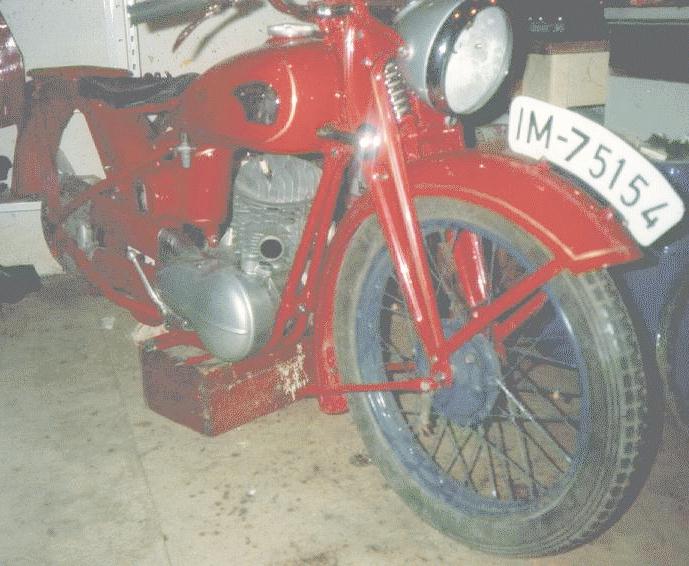

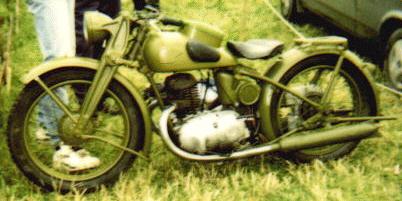

63k photo of 1939 Triumph BD25063k photo of 1939 Triumph BD250116k photo of Wehrmacht Triumph BD250/1
Triumph BD250,
BD250W (Wehrmacht version)
(Data are for Wehrmacht version)
Years of production: 1939 - 1943
Engine: 12hp/3800rpm, 1-cyl
double piston, 2-stroke rotary, 248cc
Bore/Stroke: 2 x 45/78 mm
Compression ratio: 5.5:1
Carburettor: Bing 2/24(?); 26(?) mm, there is a mistake in one of these numbers

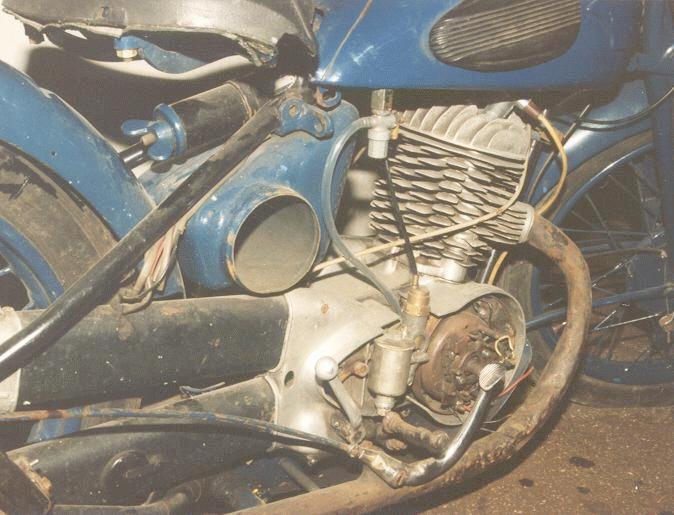

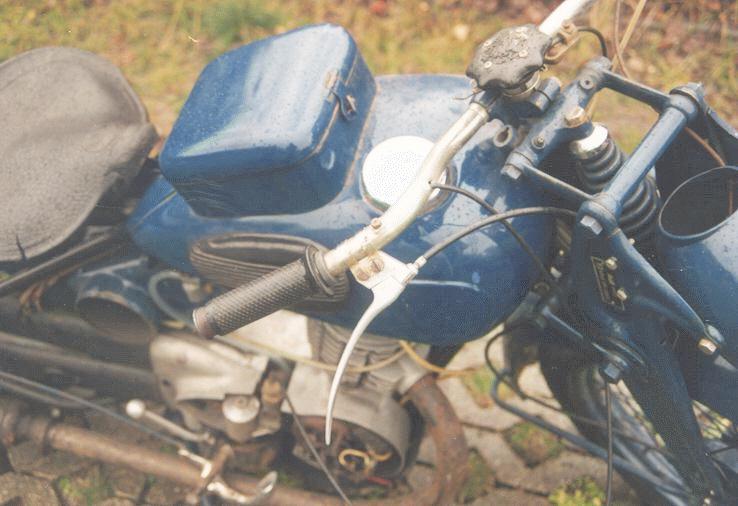

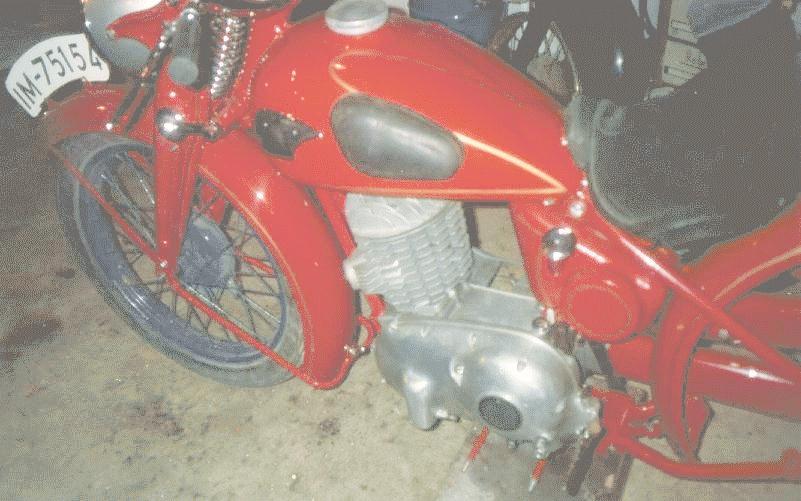

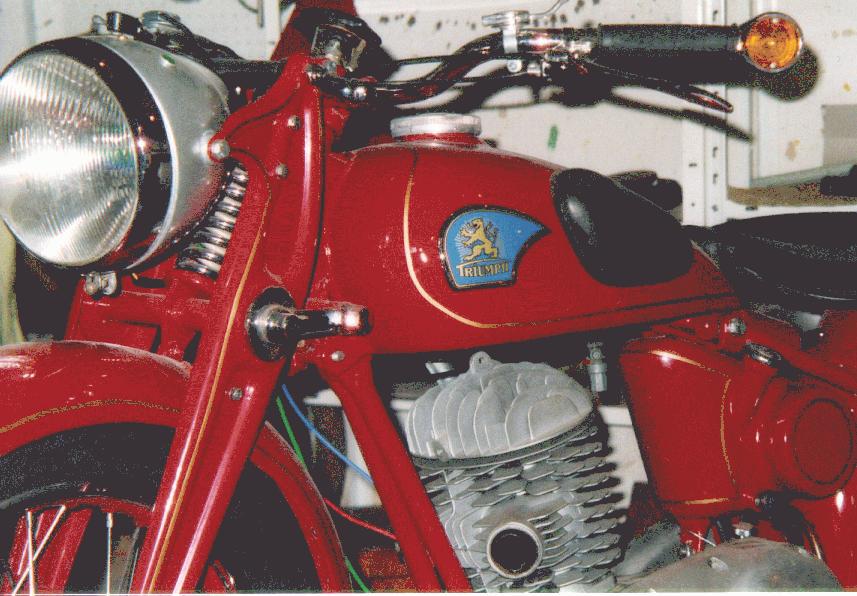

91k photo of 1939 Triumph BD25078k photo of 1939 Triumph BD25056k photo of 1939 Triumph BD250Chain
Length: 200cm, width: 76cm,
saddle height: 68cm
Wheelbase: 1320mm, clearance: 11cm
Gearbox: 4 speed foot
Tube frame
Parallelogram front fork
Weight: 140 kg

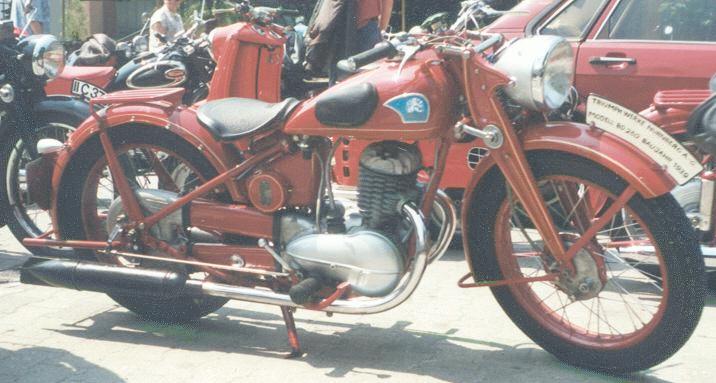

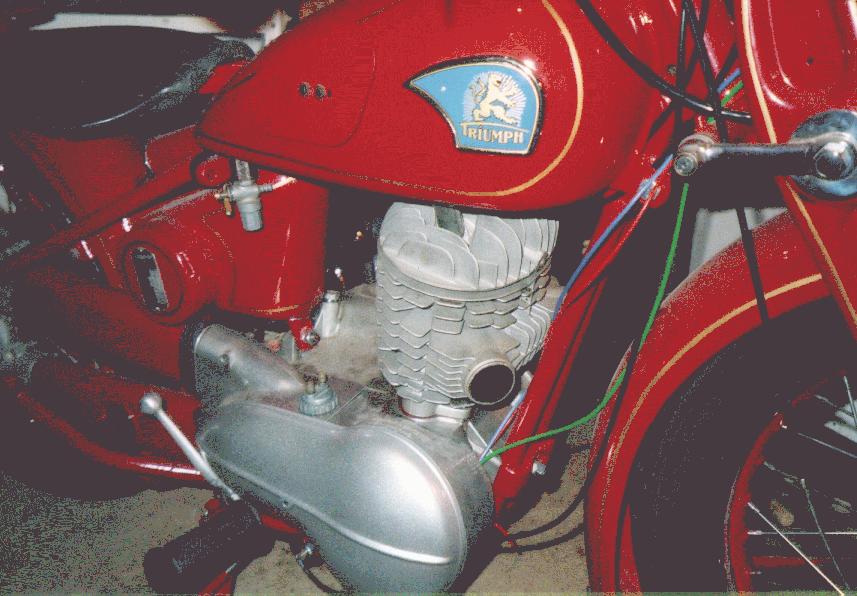

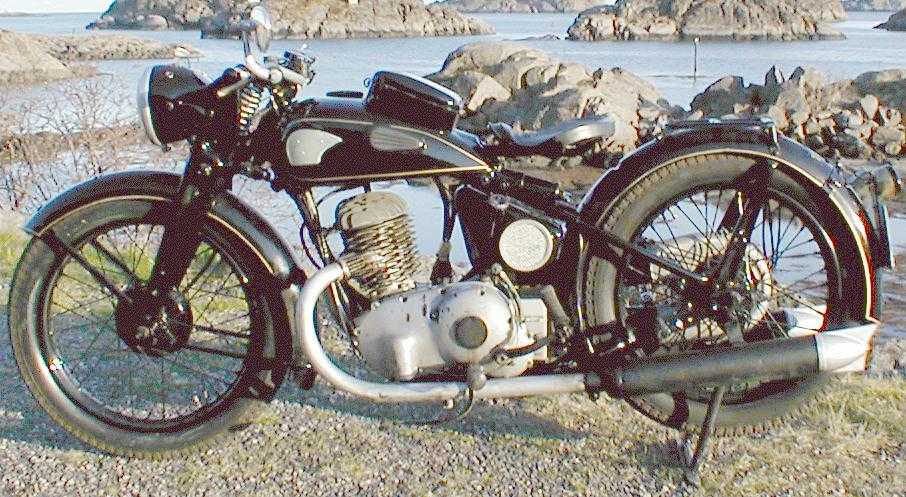

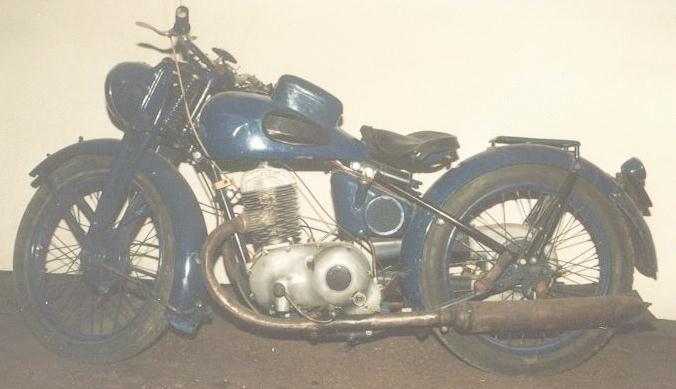

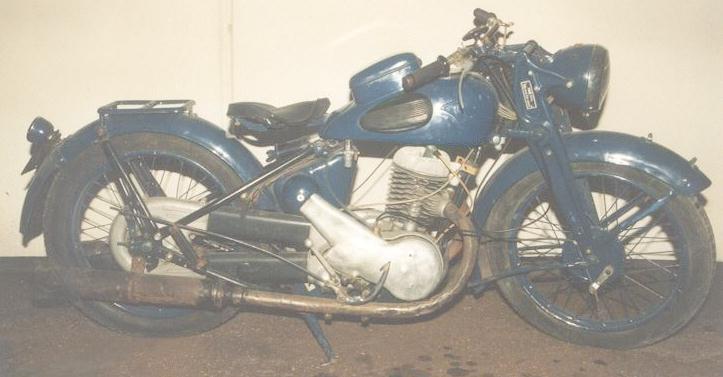

63k photo of 1939 Triumph BD25033k photo of 1939 Triumph BD250105k photo of 1940 Triumph BD250 of Jim GrønbechMaximal speed: 105 km/h
Tyres: 3,50-19 or 3,00-19 inches
Fuel tank capacity: 11.3 L
Fuel consumption: 2.6 L/100km
Photos are from:
Kai Künzel page (in German), Regensburg, Germany
(these detailed photos of two 1939 TWN BD250 show Kai motorcycles),
"German Motorcycles in World War II" by Schiffer Military, written by Stefan Knittel,
74k photo of 1939 Triumph BD25055k photo of Triumph BD25037k photo of 1939 Triumph BD250Jim Grønbech, owner of this civilian
1940 TWN BD 250 (Norway),

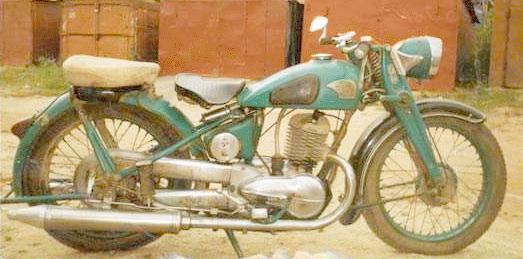

Molotok Auction (Russia).
