Oldtimer gallery. Cars. NSU-FIAT-1500 and FIAT-1500.

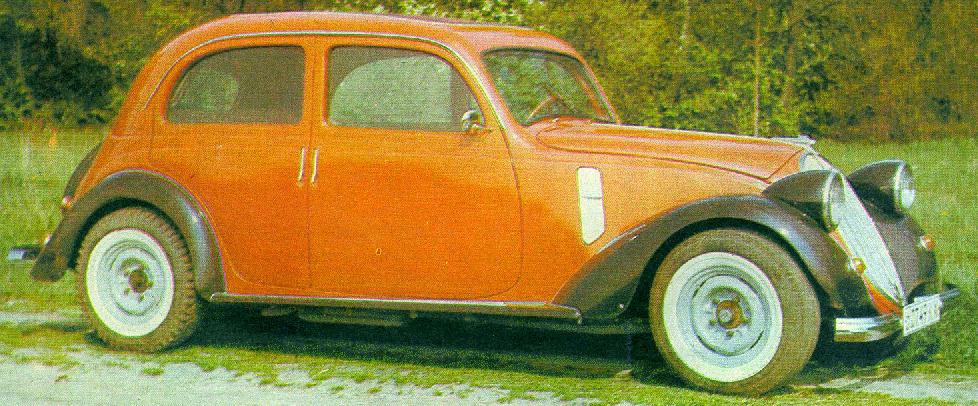

116k photo of 1940 NSU-FIAT 1500 Limousine
NSU-FIAT-1500 and FIAT-1500

Years of production: 1936-1941
Overall production: about 4000 units in Germany, see NSU-FIAT production
Engine: 45hp/4400rpm, straight 6-cyl, 4-stroke 1493cc
Bore/Stroke: 65/75 mm
Length: 4365mm, width: 1560mm, height: 1540mm
Wheelbase: 2800mm
Front wheel track/rear track: 1304/1344mm
Compression ratio: 5,75 : 1
Carburettor: Solex 35JFPS or Zenith 36VJF
Battery: 12V 50Ah
Alternator: 110W
Gearbox: 4-speed, synchronized III and IV
Frame: central box-frame
Hydraulical all-wheel drum brakes, drum diameter: 290mm
Weight (body/whole): 650/1505 kg
Maximal speed: 114 km/h
Tyres: 5,00-16 inches or 5,26-16 inches
Fuel tank capacity and place: 45 L, in rear part
Fuel consumption: 10-12 L/100km
Prices in ReichsMark:
4-door Limousine - 4250 RM
4-seater 4-light Cabriolet by Gläser, Dresden, - 5500 RM
2-3-seater 2-light Cabriolet by Gläser, Dresden, - 5500 RM
This car has been produced in Germany on FIAT 1500 licence.
This 1940 NSU-FIAT-1500 photo (116k) is from "Signal" magazine, Ukraine.
Some data are from Werner Oswald, "Deutsche Autos 1920-1945".
Thanks for help to Andrei Rebrov, Tallinn.
