Oldtimer picture gallery. Motorcycles. NSU-601OSL.

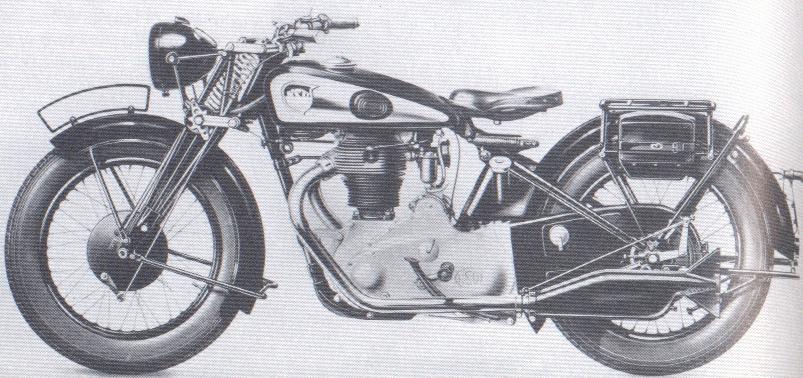

77k photo of 1938-1940 NSU 601OSL civilian version
NSU-601OSL
(data for Wehrmacht version)
Years of production: 1938 - 1940
Overall production: ? units
Engine: 24hp/5000rpm, 1-cyl, 4-stroke OHV, 562cc
Bore/Stroke: 85/99 mm
Compression ratio: 6.0:1
Carburettor: Amal M 76/434; 27 mm
Chain
Length: 223cm, width: 84cm, saddle height: 74cm
Wheelbase: 1460mm, clearance: 13cm
Gearbox: 4 speed foot
Tube frame
Parallelogram front fork
Weight: 185 kg (solo)
Maximal speed: 130 km/h (solo)
Tyres: 3.50-19 inches
Fuel tank capacity: 13.5 L
Fuel consumption: 3.8 L/100km
If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
