Oldtimer picture gallery. Trucks. MAZ-205.

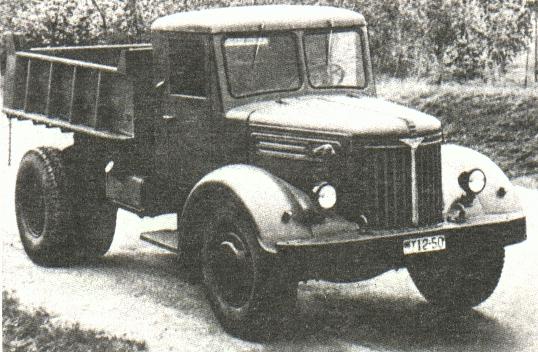

15k image of MAZ-205

Years of production: 1947 - 1966
Overall amount: ? units
4x2 5000kg dump-truck

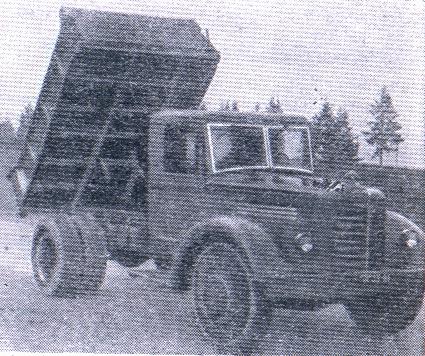

56k image of 1947 prototype - likely this is MAZ Nr.147k image of 1948 MAZ-205Engine: YaAZ-M204A diesel: 120hp/2000rpm, 4-cyl, 4650cc
Bore/Stroke: 108/127 mm
Length: 6065mm, width: 2640mm, height: 2430mm
Wheelbase: 3800mm, rear axis clearance: 290mm
Front wheel track: 1950mm
Rear track: 1920mm
Turning radius on front outer wheel: 9.0 m
Compression ratio: 17:1
Gearbox: 5 speeds (or 4 ?)
MAZ-205Pneumatical brakes
Weight (without load): 6600 kg
Maximal speed (loaded, highway): 55 km/h
Tyres: 12.00-20 inches
Fuel capacity: 105 L
Fuel consumption: 33 L/100km (diesel)
These images are from "Avtoprofi" newspaper, Ukraine, Nr.22, Lev Shugurov's book "Avtomobili Rossii i SSSR", Moscow, "Ilbi", Russia, 1993 and old issues of "Ogonyok" magazine, USSR. Thanks to Alexander Andryushin for help.
