Oldtimers picture gallery. Trucks. Tatra 92.

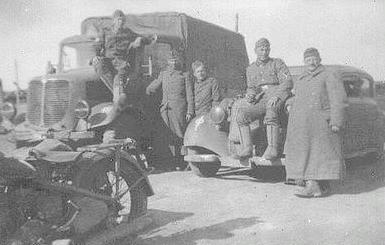

49k photo of Tatra 23 and 3 Tatra 9217k foto Tatra 92 oder 93, 79 I.D., raum Stalingrad, 1942
Tatra 92

Years of production: 1937-1940
6x4 2-ton (maximum - 3-ton) off-road truck with backbone tubular frame
Body types: cargo, troop carrier, ambulance
Overall production: 529 (including Tatra 93)
Engine: carburettor aircooled V8-cyl. OHC, 3981cc, 74hp/2500rpm
Dimensions (cargo): length - 5495mm, width - 2000mm, height - 2130mm/2610mm

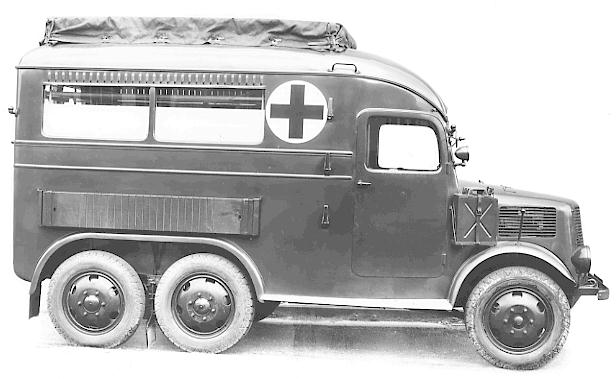

38k photo of Tatra 92 ambulance11k photo of Tatra 92 engineCargo platform: length - 3025mm, width - 1818mm, board height - ?mm
Wheelbase: 2800mm + 940mm
Bore/Stroke: 80/99mm
Compression ratio: 5,5 : 1
Carburetter: one Solex 35 JFF
Battery: two x 6 Volt, 87,5 Ah
Clutch: ?
Gearbox: 4-speed + back, 2-speed transfer box
Tatra 92 chassis, front viewTatra 92 cargoRatios: I - 6,20, II - 3,24, III - 1,975, IV - 1,00
Transfer box ratios: highway - 1,73, offroad - 3,74
Differential ratio: 3,00
Hydraulic brakes: on all wheels
Hand brakes: on 4 rear wheels
Front wheel track: 1500mm, transversal leaf-spring suspension
Rear track: both - 1545mm, swinging semi-axles with half-leaf-spring suspension for every
Road clearance: 255mm
19k photo of Tatra 92 cargoTatra 92 chassisWater ford depth: 390mm
Turning radius: 7,5 m
Weight: 3580 kg
Maximal speed on highway: 70 km/h
Tyres: 6,00x20 inches
Fuel tank capacity: 130 L
Fuel consumption: 35 L/100km (highway)
Optional 2500kg winch at the rear
Tatra 92 troop carrier
Photos and data are from:
Tatra World by Kees Smit, the Netherlands,
Werner Oswald's book "Kraftfahrzeuge und Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982, Motorbuch Verlag Stuttgart,
BAhR Automotive History Pages,
Reinhard Frank's book "Lastkraftwagen der Wehrmacht", PODZUN-PALLAS, 1992,
Molotok Auction (Russia).
Thanks a lot to Denis Orlov (Moscow) and Kees Smit (Tatra World, the Netherlands).
