Oldtimer picture gallery. Trucks.

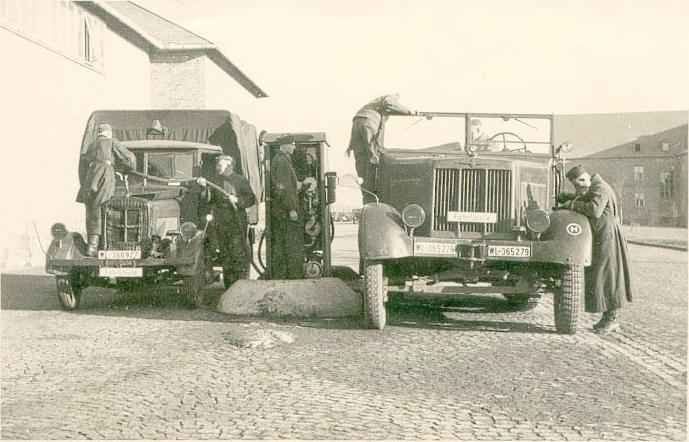

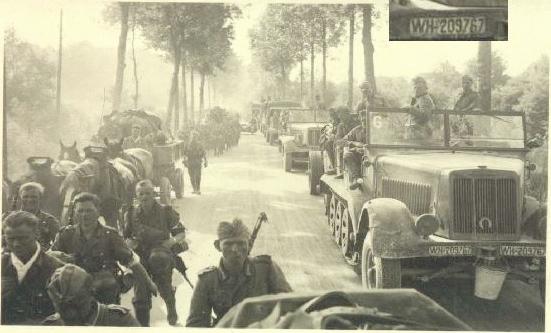

Krauss-Maffei KM m 11 & Borgward HL m 11.
Sd. Kfz. 7 (Sonder-Kraftfahrzeug 7);
m. Zgkw. 8 to (mittlere Zugkraftwagen 8 ton)
(data for Krauss-Maffei KM m 11)
Years of production:
1937-1944 (Krauss-Maffei),
1938-1943 (Borgward)
Overall production: 5026 (Krauss-Maffei), ? (Borgward)
8-ton half-track gun tractor and crew of 11 carrier
Modifications:
Sd. Kfz. 7 - 8-ton tractor for 15 cm s FH. 18 (heavy field howitzer),
10 cm field gun or 8,8 cm anti-aircraft gun
Sd. Kfz. 7/1 - self-propelled 2 cm anti-aircraft gun
Sd. Kfz. 7/2 - self-propelled 3,7 cm anti-aircraft gun
Sd. Kfz. 7/6 - anti-aircraft gun measurement crew fire control
armoured vehicle
Length: 6850mm, width: 2350mm, height: 2620mm (with canvas)
Road clearance: 400mm
Front wheel track: 2000mm; toe-in: ? mm; camber: ?o; caster: ?o
Rear track: 1800mm
Chain: length: 9720mm; width: 360mm, driving front sprockets
54 steel 180-mm elements with rubber in every chain, on 1+6+1 wheels (these 6 in chess order)
Turning radius: 8 m
Engine: carburetter Maybach HL 62 TUK 140hp/2600rpm,
watercooled straight 6-cyl. slope valve OHC 4-stroke, 6191cc
Bore/Stroke: 105/120 mm
Pistons type and material: ?
Compression ratio: 6,5 : 1
Carburettor: one offroad two-stage Solex 40 IFF II
Carburettor data: ?
Electrics: 12V, battery capacity - 105 A*h
Generator type and power: ?; 130W
Starter type and power: ?, 2,5 hp
Spark plugs type: ?; ?mm; electrode clearance: ? mm
Clutch: dry twin plate
Clutch pedal clearance: ?mm
Gearbox: (4 front + 1 back) x 2-speed transfer box
Ratios: ?
Frame: twin T-profile
Front suspension: transversal leaf spring
Rear suspension: torsion bars
Air brakes on chain front (drive) sprockets
Steering: worm + mechanical brakes with servo help
Weight: 9750kg + 1800kg load; trailer weight: 8000 kg
Maximal speed: 50 km/h
Tyres: 9,75x20 inches, offroad
Tyre pressures (atmospheres):?
Fuel tank capacity: 213 Ltr., late models - 203 Ltr.
Petrol consumption: 80 Ltr/100km (highway), 160 Ltr/100km (offroad)
Cooling system capacity: ? Ltr.
Gearbox oil carter capacity: ? L
Ford depth: 650mm
More WW2 photos with m11:
1. 23k WW2 photo of Sd. Kfz. 7 with field gun
2. 27k photo (6 VI 1942) of Borgward HL m 11 Sd.Kfz.7/1 of 11 Tank Division.
3. 40k WW2 photo of Sd. Kfz. 7, Typ m 11

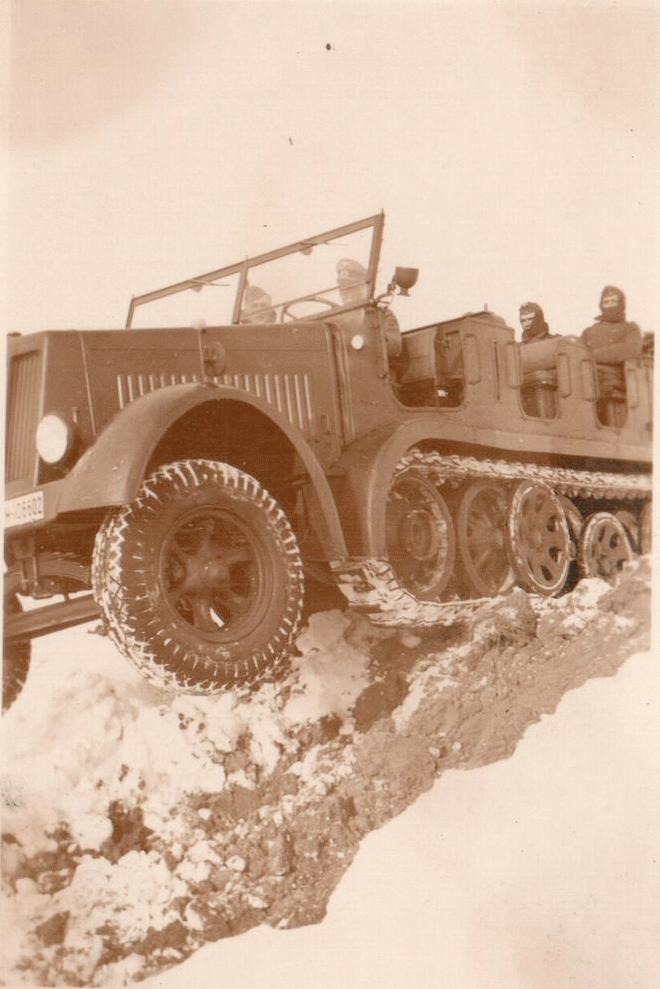

4. 58k WW2 photo of Krauss-Maffei KM m 11
5. 41k WW2 photo of Sd. Kfz. 7 with field gun
6. 13k WW2 photo of Sd. Kfz. 7/2, Africa
7. 38k WW2 photo of Krauss-Maffei KM m 11
8. 31k WW2 photo of Sd. Kfz. 7, Typ m 11
9. 62k WW2 photo of Krauss-Maffei KM m 11
10. 35k WW2 photo of Sd. Kfz. 7, Typ m 11, near Jussey
11. 62k WW2 photo of Sd. Kfz. 7 with field gun

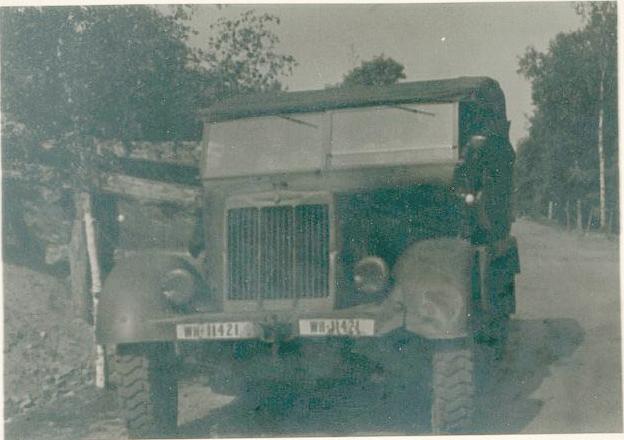

12. 33k WW2 photo of Borgward HL m 11
13. 76k photo of Sd. Kfz. 7/1, Typ m 11
14. 73k photo of prototype Krauss-Maffei KM m 11
15. 36k photo of Krauss-Maffei KM m 11
16. 89k photo of Krauss-Maffei KM m 11, late model?
17. 39k photo of Borgward HL m 11, USSR, 1943.
18. 38k photo of Sd. Kfz. 7, Typ m 11, Africa.

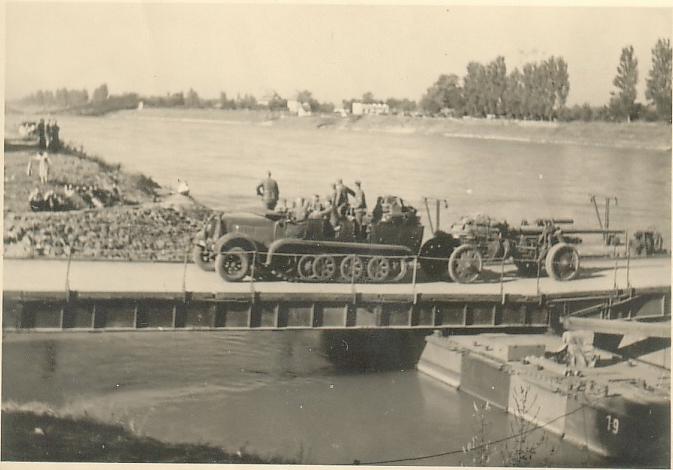

19. 37k photo of Sd. Kfz. 7, Typ m 11, crossing of Loire near Lully (or Sully), France, 1940.
20. 54k photo of Sd. Kfz. 7, Typ m 11, crossing of Loire near Lully (or Sully), France, 1940.
21. 28k photo of Sd. Kfz. 7, Typ m 11 with Luftwaffe plate WL-602433.
22. 28k color photo of Sd. Kfz. 7, Typ m 11.
23. 20k photo of Sd. Kfz. 7, Typ m 11 and German Ford BB, USSR, 1941.
24. 46k photo of Borgward HL m 11, France, 1940.
25. 44k photo of Sd. Kfz. 7, Typ m 11 and Opel Kapitän, USSR, Kaukasus, 1943.

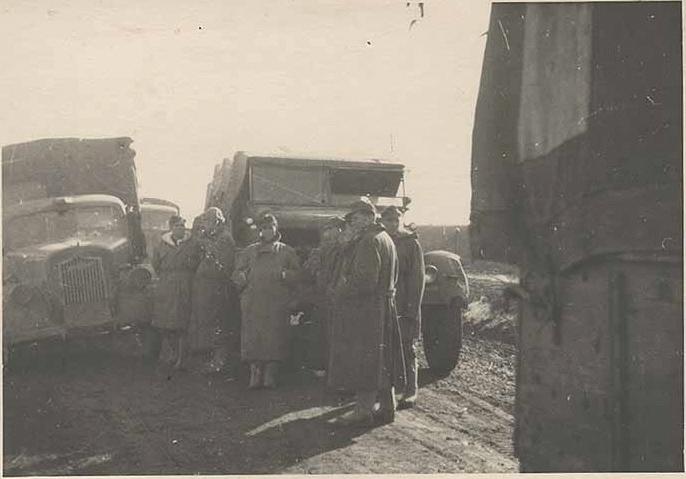

26. 43k photo of Sd. Kfz. 7, Typ m 11 and Opel Blitz, USSR, Kaukasus, 1943.
27. 42k photo of two Sd. Kfz. 7, Typ m 11 on the forest road.
28. 42k photo of Sd. Kfz. 7, Typ m 11 with 8,8-cm AA gun and Luftwaffe plate WL-400069, USSR (Crimea?), 19 I 1942.
29. 41k photo of Sd. Kfz. 7, Typ m 11.
30. 40k photo of Sd. Kfz. 7/1, Typ m 11 of Guderian Tank Group, USSR, 1941.
31. 64k photo of Sd. Kfz. 7, Typ m 11, France.

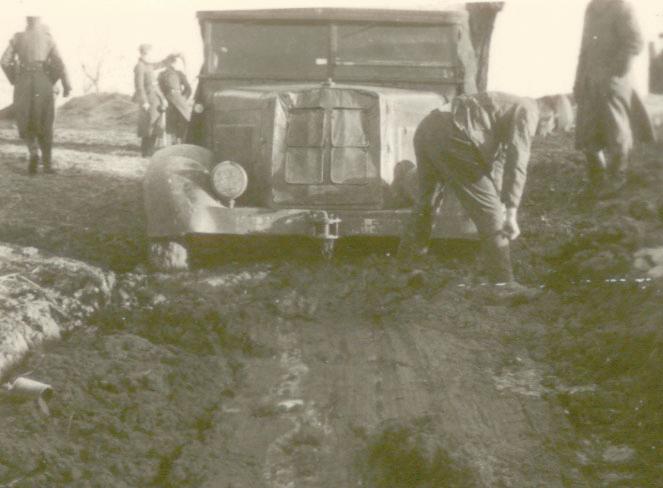

32. 39k photo of Sd. Kfz. 7, Typ m 11, USSR, Autumn 1941.
33. 57k photo of Sd. Kfz. 7, Typ m 11, Opel 2,0 Liter, Opel Olympia OL38 and DKW motorcycle, France, 1940.
34. 55k photo of Sd. Kfz. 7, Typ m 11, Wanderer W24, Horch 830 ambulance.
35. 54k photo of Sd. Kfz. 7, Typ m 11.
36. 52k photo of Sd. Kfz. 7, Typ m 11, France.

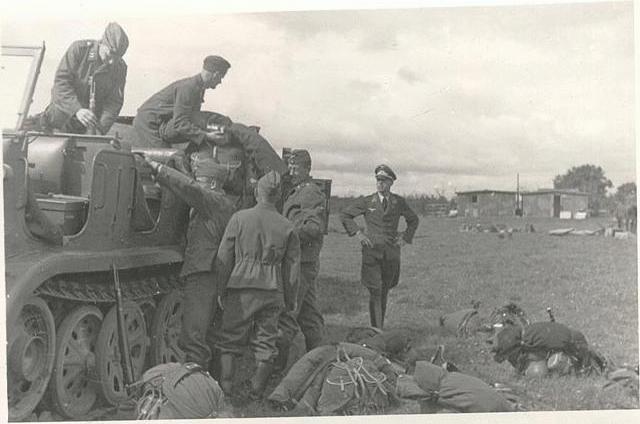

37. 50k photo of Sd. Kfz. 7, Typ m 11 with 8,8-cm Anti-Aircraft gun.
38. 48k photo of Sd. Kfz. 7/1, Typ m 11, four 2,0-cm Anti-Aircraft guns. (the same vehicle as on the photo 38).
39. 46k photo of Sd. Kfz. 7/1, Typ m 11, four 2,0-cm Anti-Aircraft guns.
40. 83k photo of Borgward HL m 11.
41. 80k photo of Sd. Kfz. 7, Typ m 11 and Krupp Protze.
42. 36k photo of Sd. Kfz. 7, Typ m 11, USSR, 1941.
43. 75k photo of Sd. Kfz. 7, Typ m 11 with Luftwaffe plate WL-300690.
44. 67k photo of Sd. Kfz. 7, Typ m 11 with Luftwaffe plate WL-300690 and Krupp Protze.
45. 72k photo of Borgward HL m 11.
46. 71k photo of Sd. Kfz. 7, Typ m 11, USSR, VII 1941 (more detailed central part is given above, under thumbnail).
47. 109k photo of Sd. Kfz. 7, Typ m 11, USSR.

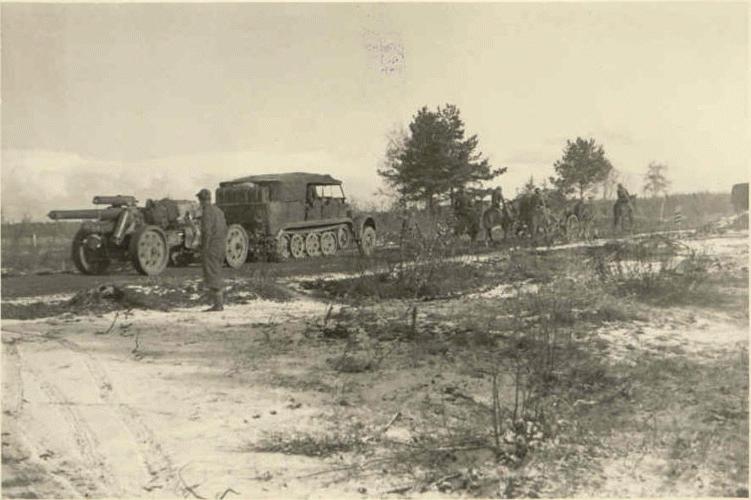

48. 87k photo of Sd. Kfz. 7 of Gross Deutschland Div., USSR.
49. 83k photo of Krauss-Maffei KM m11, Sd. Kfz. 7.

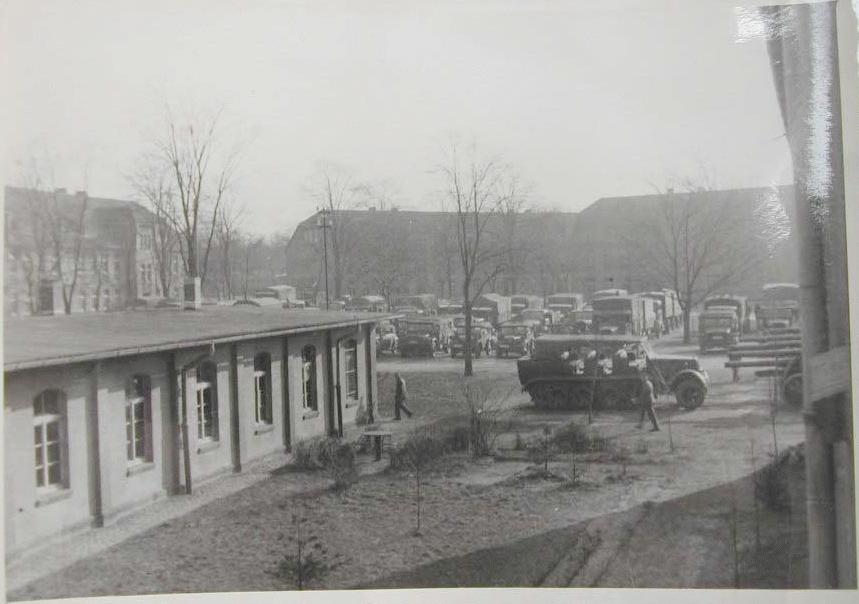

50. 77k photo of fuhrpark with Sd. Kfz. 7, Typ m 11 in the middle.
51. 77k photo of Sd. Kfz. 7, Typ m 11.

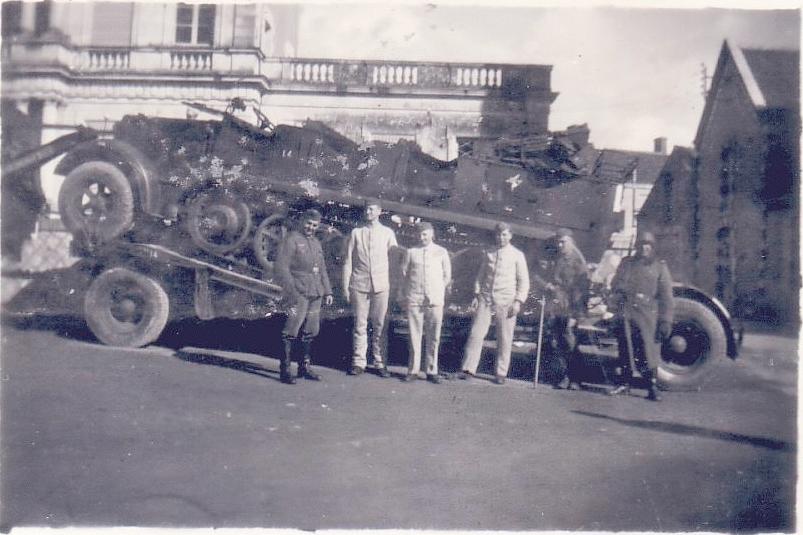

52. 74k photo of destroyed Sd. Kfz. 7, Typ m 11, Westfront.
53. 15k photo of Krauss-Maffei KM11 m11, Sd. Kfz. 7.
54. 13k photo of Borgward HL m11, Sd. Kfz. 7.
55. 80k photo of Krauss-Maffei KM11 m11, Sd. Kfz. 7.
56. 71k photo of Krauss-Maffei KM11 m11, Sd. Kfz. 7.
57. 63k photo of Sd. Kfz. 7, Typ m 11.
58. 57k photo of Sd. Kfz. 7, Typ m 11.
59. 52k photo of Sd. Kfz. 7, Typ m 11.
60. 49k photo of Sd. Kfz. 7, Typ m 11.
61. 45k photo of Sd. Kfz. 7, Typ m 11.
62. 44k photo of Sd. Kfz. 7, Typ m 11 (the same vehicle as on the photo 58).
63. 40k photo of Sd. Kfz. 7, Typ m 11 (the same vehicle as on the photo 60).
64. 25k photo of Krauss-Maffei KM m 11, Sd.Kfz.7.
65. 20k photo of Krauss-Maffei KM m 11, Sd.Kfz.7.
66. 69k photo of destroyed Sd. Kfz. 7, Typ m 11, Westfront (the same vehicle as on the photo 52).
67. 69k photo of destroyed Sd. Kfz. 7, Typ m 11.
68. 65k photo of Sd. Kfz. 7, Typ m 11.
69. 63k photo of Sd. Kfz. 7, Typ m 11, preparing to the shot, Jugoslavia, 1941.

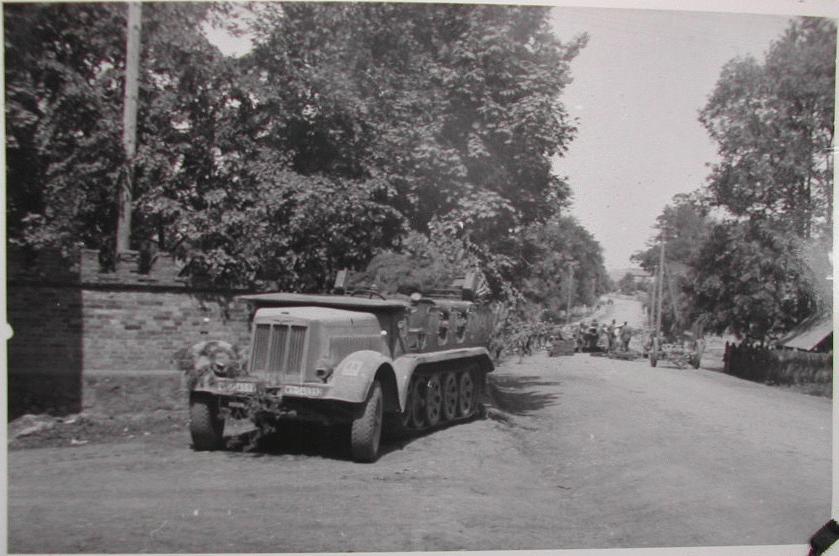

70. 63k photo of Borgward HL m11, Sd. Kfz. 7, Tarhovo village on the road Olenino-Belyi, Kalinin region, USSR, 5 VII 1942.
71. 61k photo of Sd. Kfz. 7, Typ m 11, II Battalion 518 Inf. Regt., Danube.
72. 58k photo of Sd. Kfz. 7, Typ m 11.

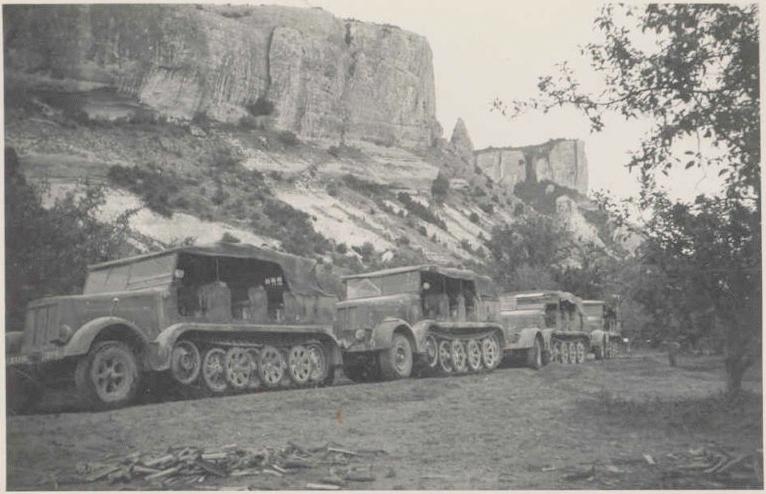

73. 57k photo of Sd. Kfz. 7, Typ m 11, and 3 following 12-ton Sd. Kfz. 8.
74. 56k photo of Sd. Kfz. 7, Typ m 11 with 8,8-cm Anti-Aircraft gun.
75. 54k photo of Borgward HL m11, Sd. Kfz. 7, Tarhovo village on the road Olenino-Belyi, Kalinin region, USSR, 5 VII 1942.
76. 51k photo of Sd. Kfz. 7, Typ m 11.
77. 51k photo of Sd. Kfz. 7, Typ m 11, Div. Grossdeutschland, USSR.
78. 51k photo of Sd. Kfz. 7, Typ m 11, II Battalion 518 Inf. Regt., Danube.
79. 50k photo of Sd. Kfz. 7, Typ m 11, tracks repair.
80. 49k photo of Borgward HL m11, Sd. Kfz. 7, Crimea, USSR.
81. 49k photo of Sd. Kfz. 7, Typ m 11.

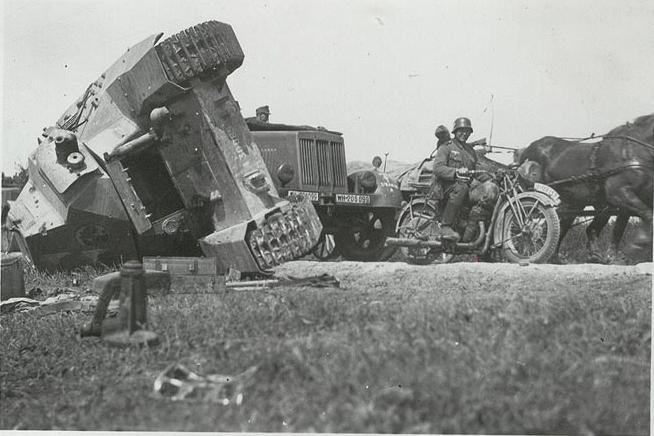

82. 47k photo of Sd. Kfz. 7, Typ m 11, and French tank Ouragan, in front of Lens.
83. 47k photo of Borgward HL m11, Sd. Kfz. 7.
84. 47k photo of Sd. Kfz. 7, Typ m 11, USSR.
85. 44k photo of Sd. Kfz. 7, Typ m 11, 16th Tank Division, in USSR, 1942/43.
86. 44k photo of Sd. Kfz. 7, Typ m 11, Westfront.
87. 44k photo of Sd. Kfz. 7, Typ m 11.
88. 44k photo of Borgward HL m11, Sd. Kfz. 7 towing Horch 830R Kfz.17, Tarhovo village on the road Olenino-Belyi, Kalinin region, USSR, 5 VII 1942.
89. 44k photo of Sd. Kfz. 7, Typ m 11 with 8,8-cm Anti-Aircraft gun.
90. 43k photo of Sd. Kfz. 7, Typ m 11.
91. 42k photo of Krauss-Maffei KM11 m11, Sd. Kfz. 7.
92. 39k photo of Sd. Kfz. 7, Typ m 11.
93. 38k photo of Sd. Kfz. 7, Typ m 11 (the same vehicle as on the photo 72).
94. 37k photo of Sd. Kfz. 7, Typ m 11, Anti-Aircraft gun (the same vehicle as on the photo 76).
95. 37k photo of Sd. Kfz. 7, Typ m 11 with 8,8-cm Anti-Aircraft gun (the same vehicle as on the photo 74).
96. 36k photo of Armoured Sd. Kfz. 7, Typ m 11 with 8,8-cm Anti-Aircraft gun.
97. 36k photo of Sd. Kfz. 7, Typ m 11 with Anti-Aircraft floodlight.
98. 36k photo of Borgward HL m11, Sd. Kfz. 7.
99. 35k photo of Sd. Kfz. 7, Typ m 11, USSR.
100. 35k photo of Sd. Kfz. 7, Typ m 11, 16th Tank Division, in USSR, 1942/43 (the same vehicle as on the photo 85).
101. 34k photo of Sd. Kfz. 7, Typ m 11.
102. 33k photo of Borgward HL m11, Sd. Kfz. 7.
103. 33k photo of Sd. Kfz. 7, Typ m 11, 16th Tank Division, in USSR, 1942/43 (the same vehicle as on the photos 85, 100).
104. 33k photo of Sd. Kfz. 7, Typ m 11.
105. 32k photo of Sd. Kfz. 7, Typ m 11.
106. 32k photo of Sd. Kfz. 7, Typ m 11, 16th Tank Division, in USSR, 1942/43 (the same vehicles as on the photos 85, 100, 103).
107. 32k photo of Sd. Kfz. 7, Typ m 11.
108. 32k photo of Sd. Kfz. 7, Typ m 11, USSR.
109. 32k photo of Sd. Kfz. 7, Typ m 11, 16th Tank Division, in USSR, 1942/43 (the same vehicles as on the photos 85, 100, 103, 106).
110. 31k photo of Sd. Kfz. 7, Typ m 11 (the same vehicle as on the photos 79, 92).
111. 31k photo of Sd. Kfz. 7, Typ m 11 towing Henschel 33, 16th Tank Division, in USSR, 1942/43 (the same vehicles as on the photos 85, 100, 103, 106, 109).

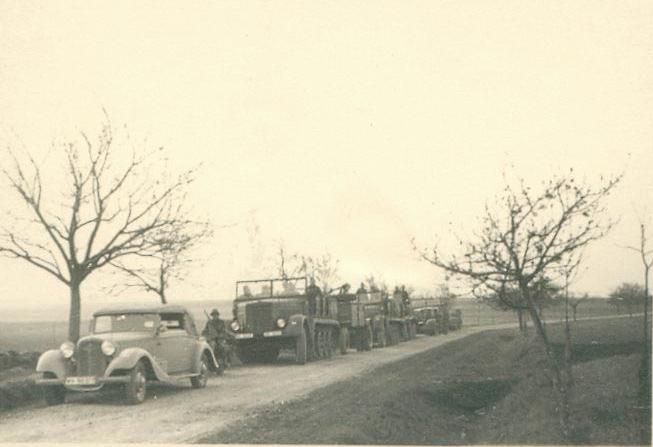

112. 31k photo of Sd. Kfz. 7, Typ m 11, 6th Tank Regt., in Poland (with Adler Trumpf leading).
113. 31k photo of Sd. Kfz. 7, Typ m 11, and Soviet 85-mm anti-aircraft gun 52-K (1939 model).
114. 30k photo of Sd. Kfz. 7, Typ m 11, and Mercedes-Benz 320WK, USSR.
115. 29k photo of Sd. Kfz. 7, Typ m 11 (the same vehicles as on the photo 76, 94).
116. 27k photo of Sd. Kfz. 7/1, Typ m 11.
117. 27k photo of Sd. Kfz. 7, Typ m 11.
118. 26k photo of Sd. Kfz. 7, Typ m 11 towing old Buessing-NAG.
119. 26k photo of Sd. Kfz. 7, Typ m 11, very rare cargo version (end of the War production).
120. 24k photo of Borgward HL m11, Sd. Kfz. 7, with 8,8-cm Anti-Aircraft gun, moving to Köln (Cologne).
121. 23k photo of Borgward HL m11, Sd. Kfz. 7, SS Div. Leibstandard Adolf Hitler.
122. 22k photo of Sd. Kfz. 7, Typ m 11, Tobruk, North Africa.
123. 21k photo of Sd. Kfz. 7, Typ m 11 (the same vehicles as on the photo 76, 94, 115).
124. 21k photo of Sd. Kfz. 7, Typ m 11.

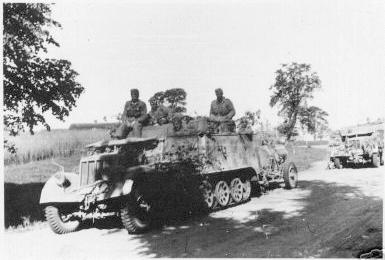

125. 20k photo of Armoured Sd. Kfz. 7, Typ m 11 with Nebelwerfer mine thrower in trailer.
126. 20k photo of Armoured Sd. Kfz. 7, Typ m 11, Panzer-Abwehr Division 3 from Frankfurt-Am-Oder.
127. 15k photo of Armoured Sd. Kfz. 7, Typ m 11 with cargo body, 23th Tank Regt., Tarnow, 1944.
128. 19k photo of Borgward HL m11, Sd. Kfz. 7
129. 17k photo of Sd. Kfz. 7/1, Typ m 11.
130. 15k photo of Armoured Sd. Kfz. 7/2, Typ m 11.
131. 14k photo of Armoured Sd. Kfz. 7, Typ m 11, Panzer-Abwehr Division 3 from Frankfurt-Am-Oder.
132. 13k photo of Armoured Sd. Kfz. 7/2, Typ m 11, road Stalino (Doneck) - Harkov (Ukraine), 1943.
133. 13k photo of Borgward HL m 11, Sd. Kfz. 7
134. 13k photo of Sd. Kfz. 7/2, Typ m 11, Africa.
135. 12k photo of Sd. Kfz. 7/2, Typ m 11, Africa (the same vehicle as on the photo 134).
136. 11k photo of Sd. Kfz. 7/2, Typ m 11.
137. 10k photo of Armoured Sd. Kfz. 7/2, Typ m 11.
138. 10k photo of Armoured Sd. Kfz. 7/2.
139. 96k photo of Sd. Kfz. 7, Typ m 11, Africa.
140. 66k photo of Sd. Kfz. 7, Typ m 11.
141. 64k photo of Sd. Kfz. 7, Typ m 11.
142. 60k photo of Sd. Kfz. 7, Typ m 11 with French 15,7-cm gun, Africa.
143. 57k photo of Sd. Kfz. 7, Typ m 11, Africa (the same vehicle as on the photo 139).
144. 57k photo of Sd. Kfz. 7, Typ m 11 (the same vehicle as on the photo 141).
145. 47k photo of Sd. Kfz. 7, Typ m 11, Africa (the same vehicle as on the photos 139, 143).
146. 45k photo of Krauss-Maffei KM m11, Sd. Kfz. 7 (WH-42022).
147. 39k photo of Sd. Kfz. 7, Typ m 11, Africa.
148. 37k photo of Borgward HL m 11, Sd. Kfz. 7, Dämmerung

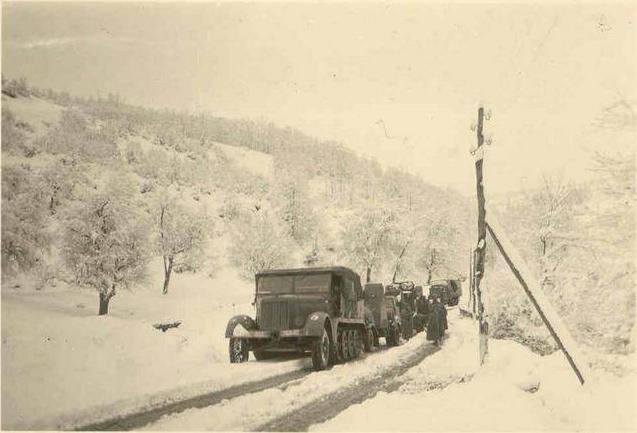

149. 34k photo of Sd. Kfz. 7, Typ m 11, road Sofia - Kjustendil.
150. 34k photo of Sd. Kfz. 7, Typ m 11 with skies on the front wheels.
151. 34k photo of Krauss-Maffei KM m11, Sd. Kfz. 7, Africa.
152. 31k photo of Sd. Kfz. 7, Typ m 11.
153. 31k photo of Sd. Kfz. 7, Typ m 11, Africa.
154. 28k photo of Sd. Kfz. 7, Typ m 11, Austria, 1938 (the same vehicle as on the photos 141, 144).
155. 20k photo of Krauss-Maffei KM m11, Sd. Kfz. 7 with skies on the front wheels (the same vehicle as on the photo 150).
156. 16k photo of Sd. Kfz. 7, Typ m 11.
Photos and data are from:
Werner Oswald "Kraftfahrzeuge und Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982, Motorbuch Verlag Stuttgart.
eBay Deutschland.
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
Reinhard Frank's book "Lastkraftwagen der Wehrmacht", PODZUN-PALLAS, 1992.
Entrance Gallery Trucks Krauss-Maffei Borgward m 9, m10 Sale Links
Last updated 15 XII 2005. Andrei Bogomolov. Contact Information.

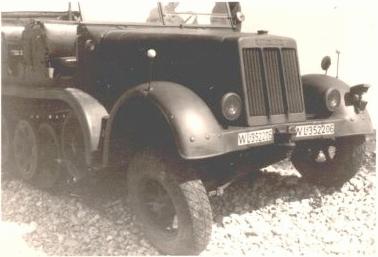

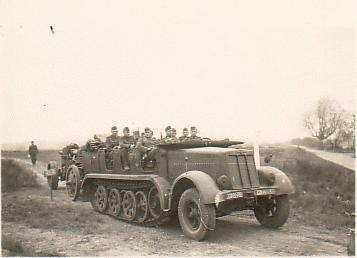

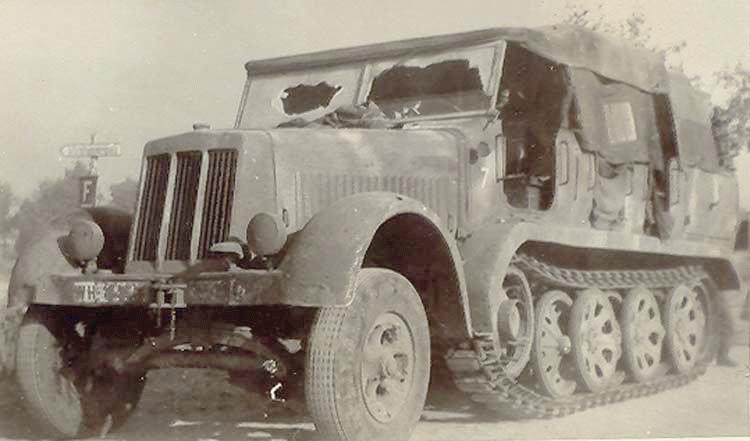

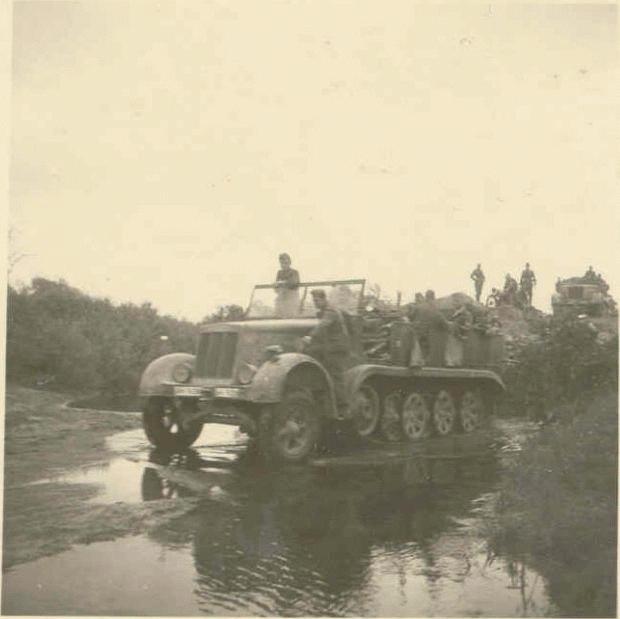

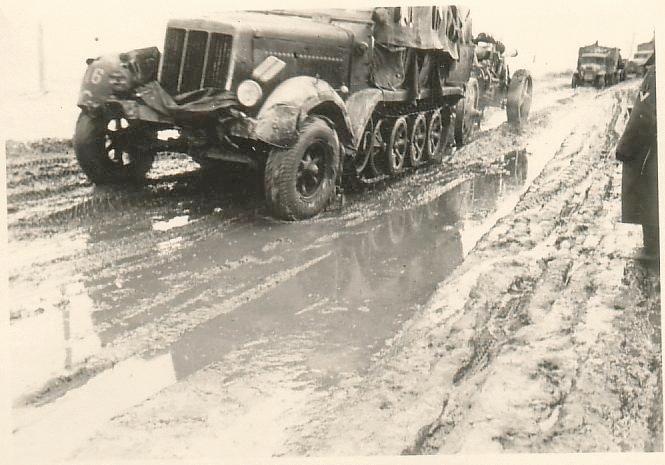

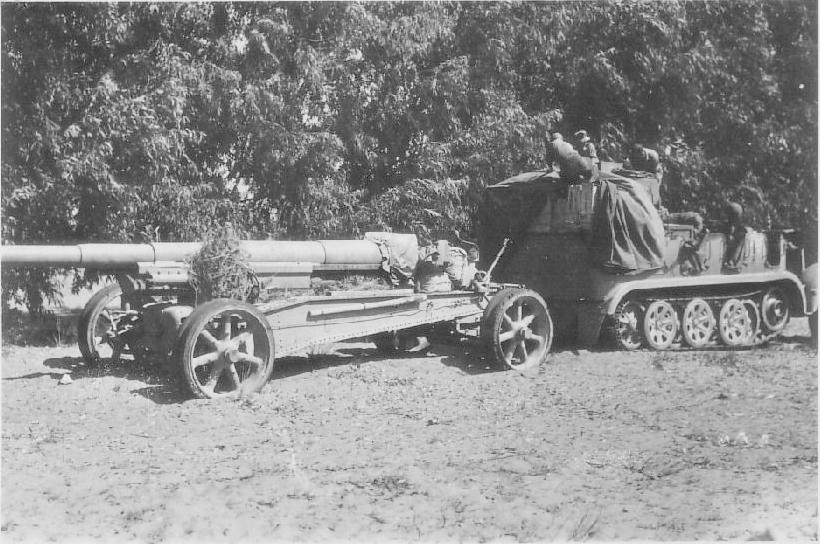

Sd. Kfz. 7 - 8-ton tractor for 15 cm s FH. 18 (heavy field howitzer),
Rear track: 1800mm
Pistons type and material: ?
Clutch: dry twin plate
