Oldtimer picture gallery. Motorcycles. DKW-NZ250.

42k photo of 1939 DKW-NZ25079k WW2 photo, DKW-NZ250 of Luftwaffe anti-aircraft battery, Holland17k photo of 1939 DKW-NZ250, Frame Nr. 475870
DKW NZ250

Years of production: 1938-1941
Overall production: 26700
Engine:
9hp/3250rpm, 1-cyl., 2-stroke SV 247cc
Bore/Stroke: 68/68 mm
Compression ratio: 5,9 : 1
Spark plug: Bosch W 175 T 1, 0,6mm
Carburetter (3 types used):
Amal M 76/426, Bing AJ 2/24, Graetzin H24; 24 mm
Chain
Length: 209cm, width: 75cm, saddle height: 70cm
Wheelbase: 1355mm, road clearance: 12cm
Gearbox: 4-speed, foot- and hand change
Ratios: I - 2,76; II - 1,77; III - 1,30; IV - 1,00
Pressed steel frame
Parallelogram front fork
Weight: 135 kg
Maximal speed: 98 km/h
Tyres: 3,00-19 inches
Tyre pressures, atmospheres: front - 1,2, rear - 1,4
Fuel tank capacity: 14 Ltr.

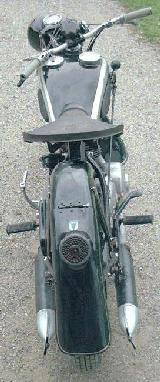

63k photo of 1939 DKW-NZ25077k photo of 1939 DKW-NZ25069k photo of 1939 DKW-NZ250Fuel consumption: 3,1 Ltr./100km
Gas/oil mixture ratio: 25 : 1

Photos are from:
eBay Deutschland.

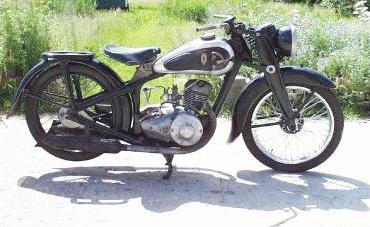

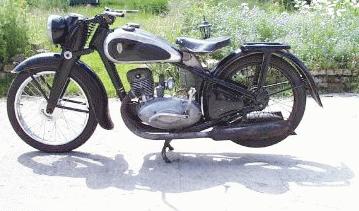

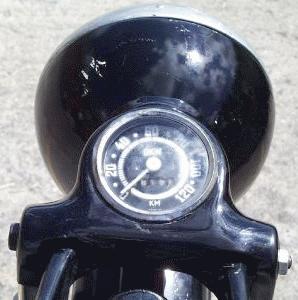

10k WW2 photo of DKW-NZ25024k photo of 1939 DKW-NZ250, Frame Nr. 47587020k photo of 1939 DKW-NZ250, Frame Nr. 475870
