Oldtimers picture gallery. Cars. Delahaye 135M.

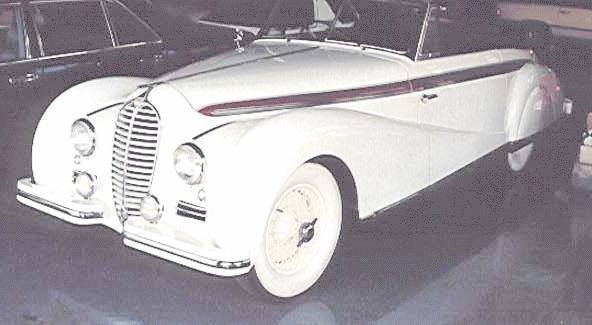

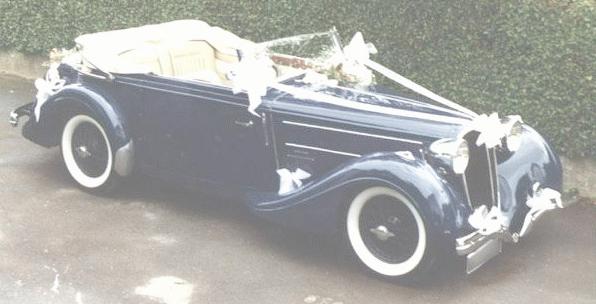

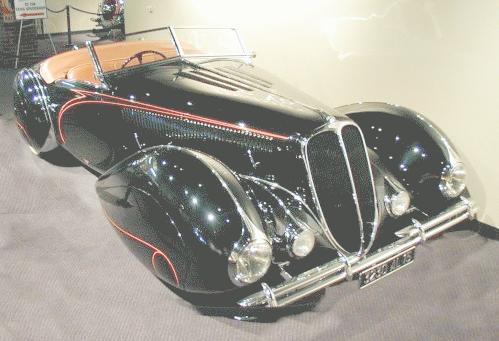

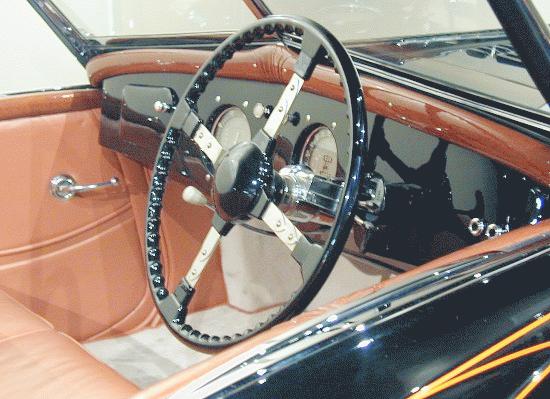

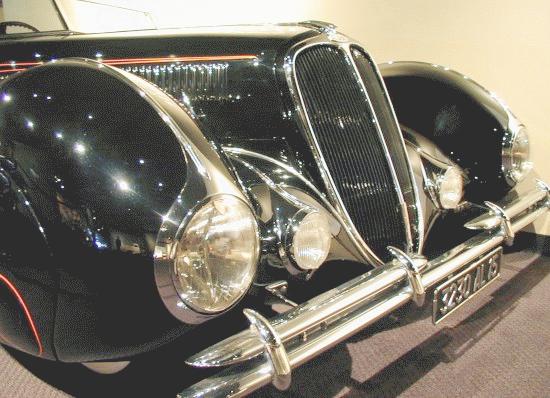

26k photo of 1937 Delahaye 135M48k photo of 1938 Delahaye 135M roadster46k photo of 1938 Delahaye 135M roadster, dashboard
Delahaye 135M

Years of production: 1936-1954
Overall production: 1155
4x2 front engine, rear wheel drive
Engine: 115hp/?rpm, 6-cyl. OHV, water
cooled, carburettor, 4-stroke, 3557cc
Bore/Stroke: 84/107 mm
Length: ?mm, width: ?mm, height: ?mm
Chassis: length: 4028mm, width: 1790mm

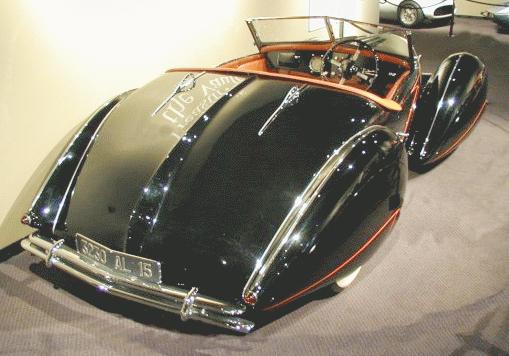

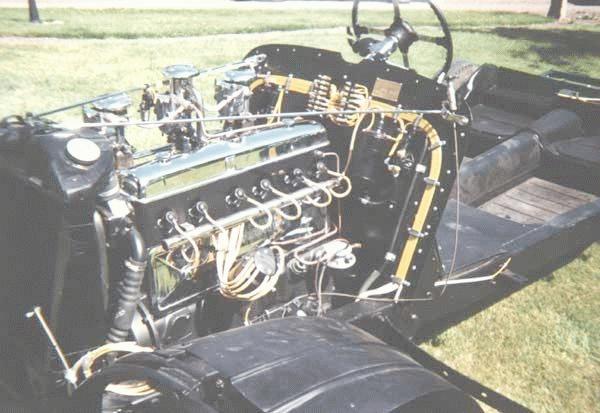

32k photo of 1938 Delahaye 135M roadster44k photo of 1937 Delahaye 135M cabriolet by Chapron, chassis Nr.47469, engine30k photo of 1938 Delahaye 135M roadsterWheelbase: 2950mm; road clearance: ?mm
Front wheel track: 1400mm
Rear track: 1472mm
Front axle: independent
Rear axle: pair of semielliptic leaf springs
Carburetters: 3 Solex
Gearbox: electromagnetic Crotal, 4-speed
Clutch: single plate
Bendix brakes

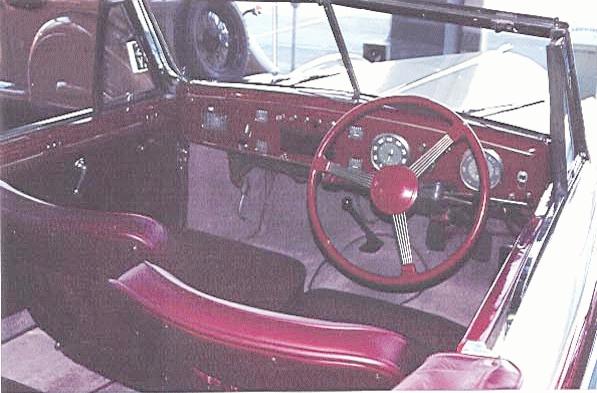

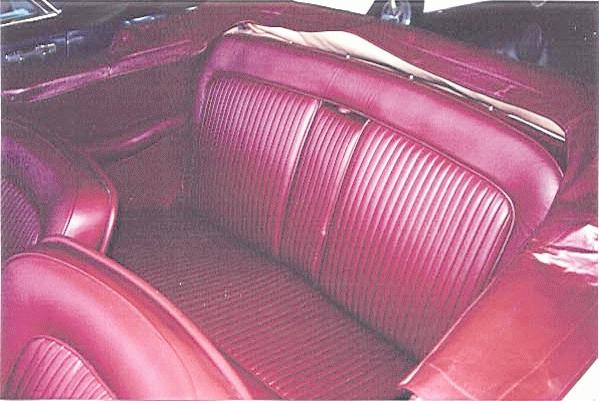

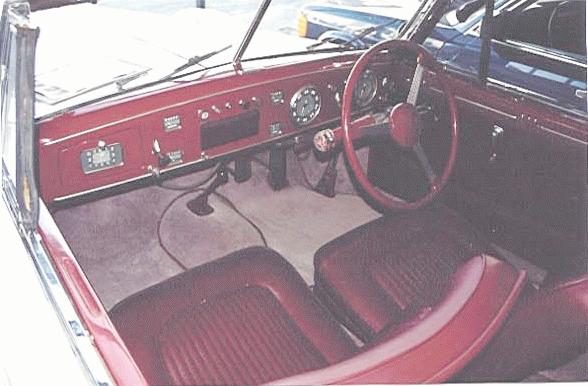

43k photo of 1937 Delahaye 135M, interior44k photo of 1937 Delahaye 135M, dashboard39k photo of 1937 Delahaye 135M, dashboard12 Volt electrics
Centre-lock wire wheels
Weight: ? (chassis - 935kg)
Maximal speed: 150 km/h
Tyre size: ?
Fuel tank capacity: 100 L
Fuel consumption: ? L/100km
Photos are from:
Cosmopolitan Motors. LLC,

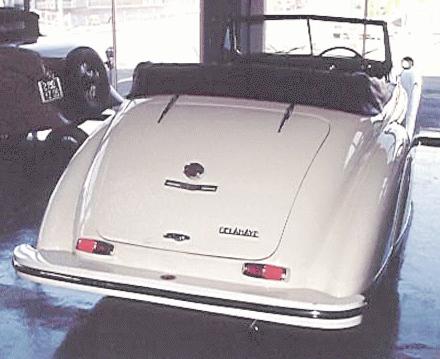

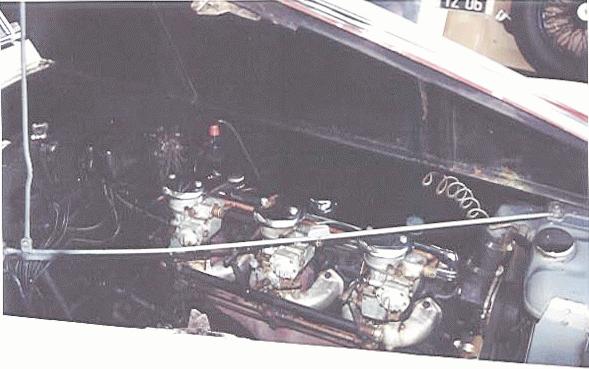

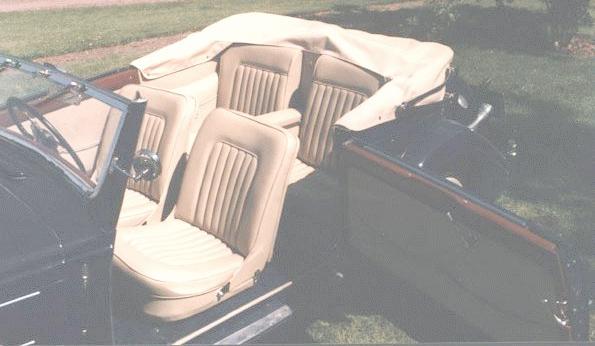

36k photo of 1937 Delahaye 135M, engine28k photo of 1937 Delahaye 135M cabriolet by Chapron, chassis Nr.47469, interior27k photo of 1937 Delahaye 135MClassic Car Collection,
MotorCities.com.
Some data are from Kai Rübenhagen
(Germany), thanks, Kai!.

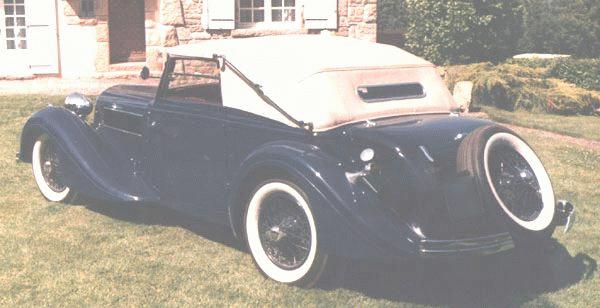

33k photo of 1937 Delahaye 135M cabriolet by Chapron, chassis Nr.4746928k photo of 1937 Delahaye 135M cabriolet by Chapron, chassis Nr.47469
