Oldtimers picture gallery. Cars. Delahaye 135.

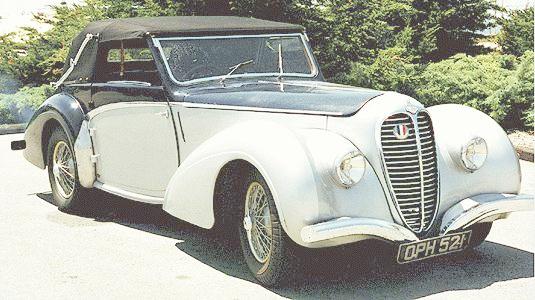

12k photo of 1930's Delahaye label43k photo of 1935 Delahaye 135 3-position cabriolet by Pennock, the Netherlands

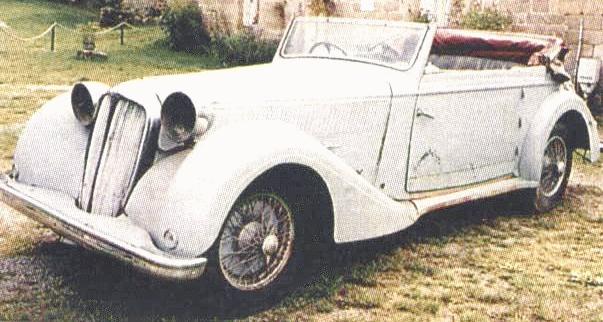

Delahaye 135 Coupe Des Alpes

Years of production: 1935-1939
Overall production: about 2000 all "135" model cars
4x2 front engine, rear wheel drive
Engine: 95hp(1 carburetter)(110hp with 3 carbs)/?rpm, 6-cyl. OHV,
water cooled, carburettor, 4-stroke, 3227cc
Bore/Stroke: 80/107 mm

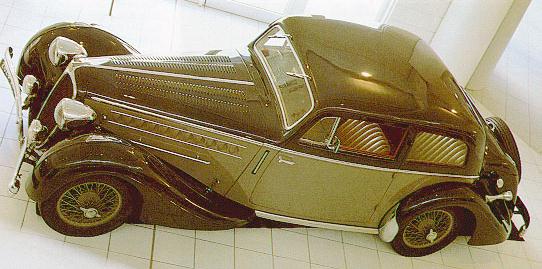

47k photo of 1935 Delahaye 135 cabriolet by Chapron37k photo of 1935 Delahaye 135 coupeLength: ?mm, width: ?mm, height: ?mm
Chassis: length: 4028mm, width: 1790mm
Wheelbase: ?mm; road clearance: ?mm
Front wheel track: 1380mm
Rear track: 1485mm
Both axles: transverse-leaf independent
Carburetter: Solex (1 or 3)
Gearbox: 4-speed
Bendix brakes

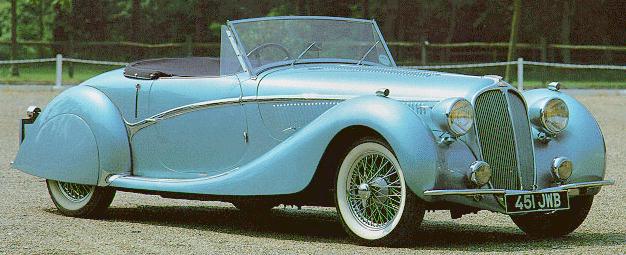

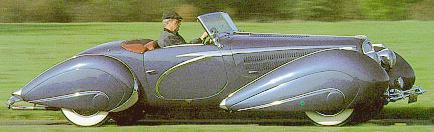

40k photo of 1938 Delahaye 135 cabriolet by Figoni et Falaschi16k photo of 1938 Delahaye 135 roadster by Figoni et FalaschiCentre-lock wire wheels
Weight: ? (chassis - 935kg)
Maximal speed: ? km/h
Tyre size: 5,50x17 inches
Fuel tank capacity: 75 Ltr.
Fuel consumption: ? L/100km
Photos are from:
Igor Guzienko (Kiev),
Classic Car Collection,
Blackhawk Collection,
Data are from "A-Z of Cars of the 1930s" by M.Sedgwick & M.Gillies and from Kai Rübenhagen (Germany), thanks, Kai!.
