Oldtimer picture gallery. Trucks. Sd. Kfz. 10 (le. Zgkw. 1 to). Typ D7.
Parentage firm: Demag, Wetter/Ruhr, Benrath, Berlin-Falkensee, Germany.
Co-producers: Phänomen (Mechanische Werke Cottbus), Adler,
Büssing-NAG, Saurer (Vienna), M.I.A.G., M.N.H. - Hannover.

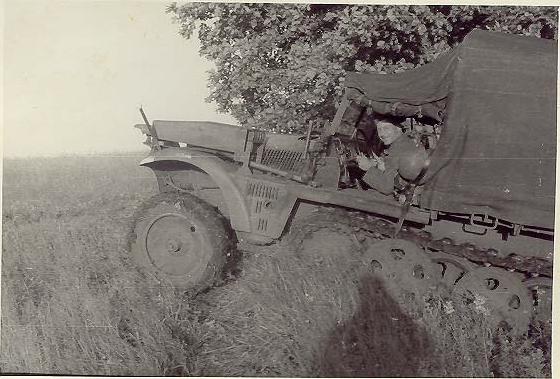

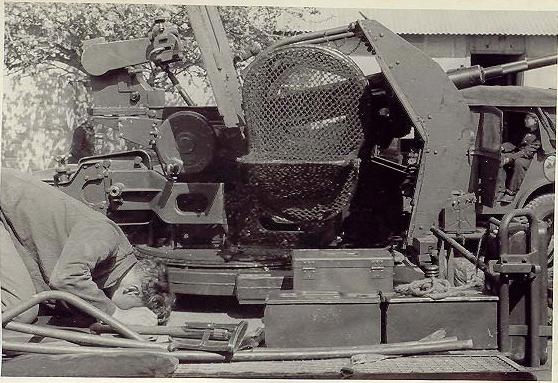

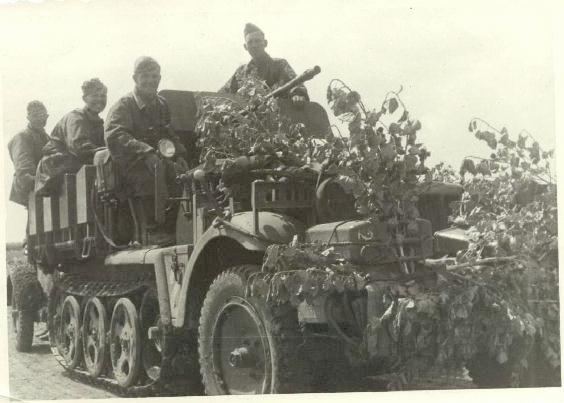

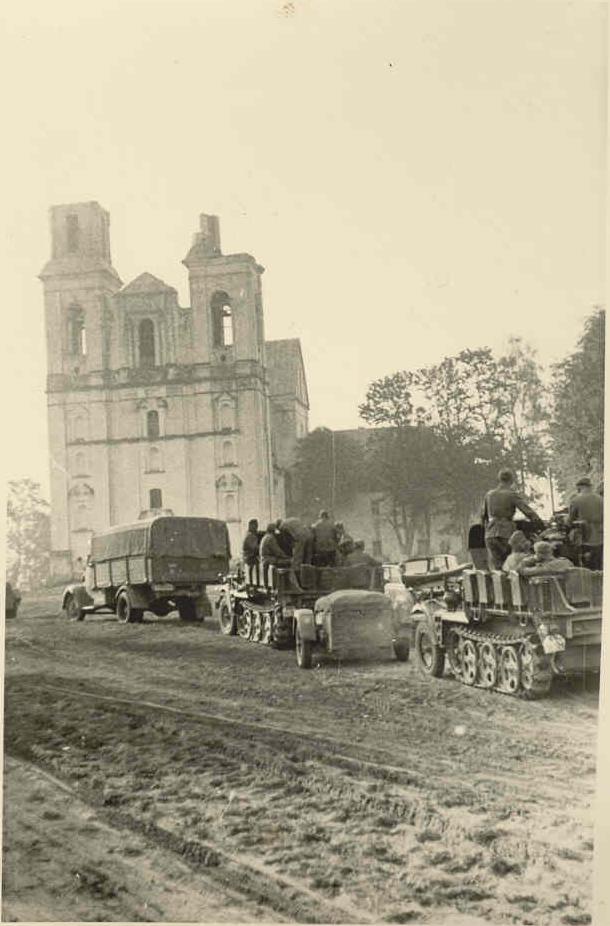

55k WW2 photo of Sd. Kfz. 1072k WW2 photo of Sd. Kfz. 10/4, Ostfront54k WW2 photo of Sd. Kfz. 10/4 of SS with Luftwaffe plates

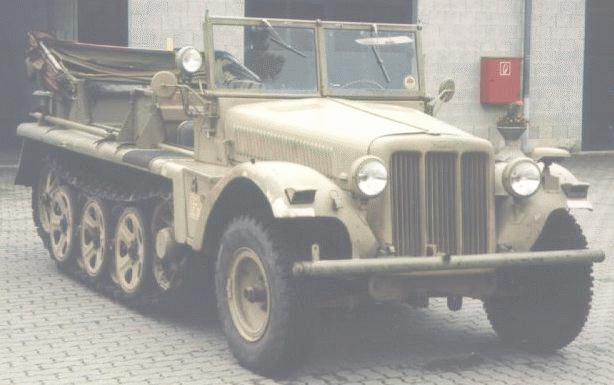

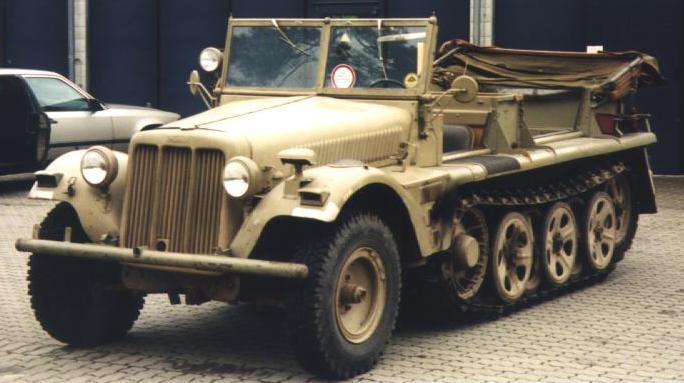

Sd. Kfz. 10 (Sonder-Kraftfahrzeug 10);
le. Zgkw. 1 to (leichte Zugkraftwagen 1 ton)
(Data for Demag D7 Sd. Kfz. 10)
Years of production: 1938-1945
(Phänomen), 1938-1944 (Demag),
1940-1944 (Adler), 1939-1943
(Büssing-NAG), 1938-1943 (Saurer).
Overall production: about 25000 units
(including about 7500 armoured SPW D7p
in 1940-1944)
By firms: about 7000 (Phänomen),
about 6000 (Demag), 5360 (Adler), about 4500 (Büssing-NAG),
about 2000 (Saurer)
By years: 1938: ?; 1939: ?; 1940: 3096; 1941: 3834; 1942: 2868 Sd.Kfz.10 + 1340 Sd.Kfz.250;

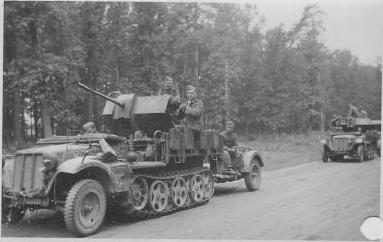

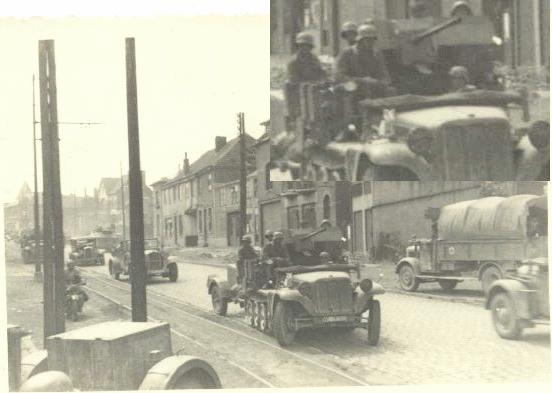

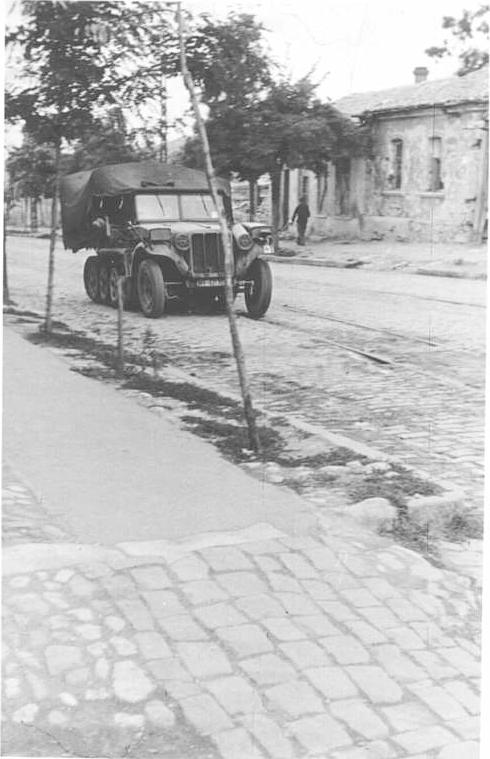

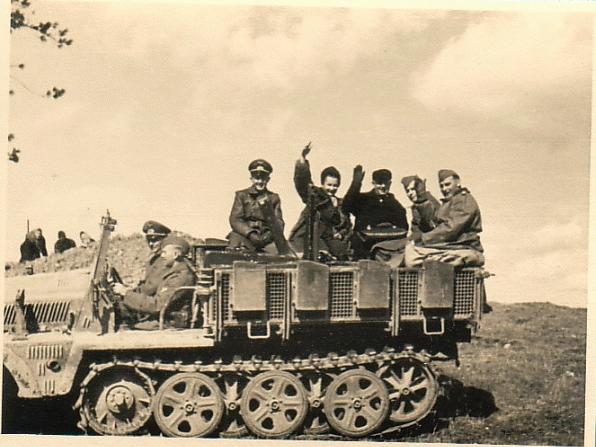

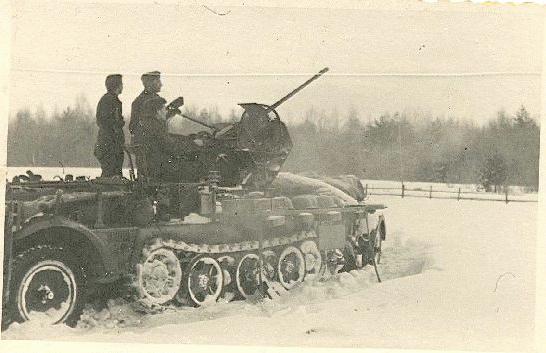

61k WW2 photo, Sd. Kfz. 10/4 of SS with Luftwaffe plates54k WW2 photo of Sd. Kfz. 10/446k VI 1943 photo of Sd. Kfz. 10/4, Russia1943:
2724 Sd.Kfz.10 + 2900 Sd.Kfz.250; 1944: 873 Sd.Kfz.10 + 1690 Sd.Kfz.250;
1945: ?
8-seater half-track gun tractor
Modifications:
Sd. Kfz. 10 - light 1 ton tractor for 5- and
7,5-mm gun and personnel carrier
Sd. Kfz. 10/1 - light fire throwing gun
Sd. Kfz. 10/2 - light chemical vehicle
Sd. Kfz. 10/3 - light loudspeaker vehicle
Sd. Kfz. 10/4 - light 2-cm anti-aircraft gun
Sd. Kfz. 10/5 - light 3,7- or 5-cm gun

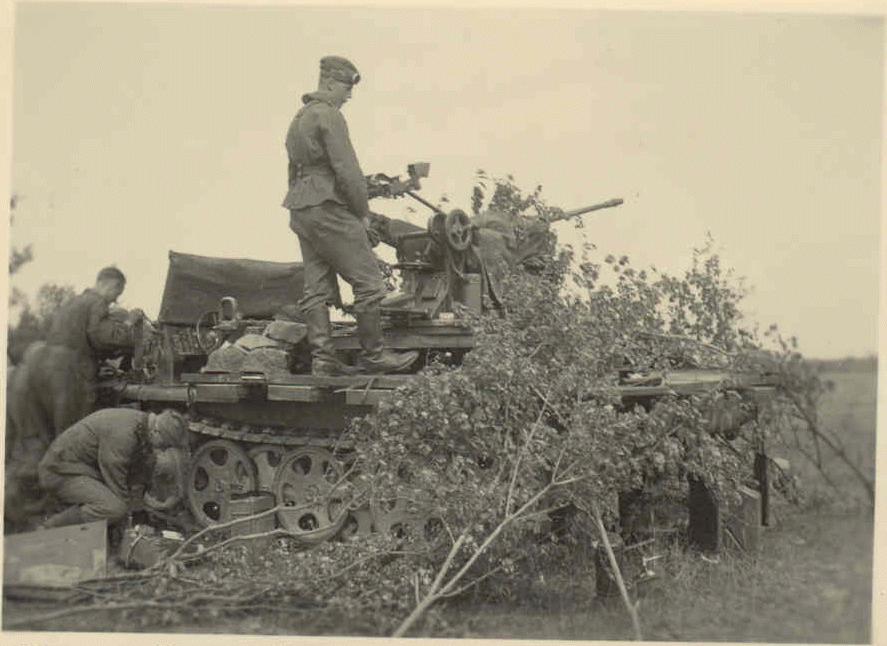

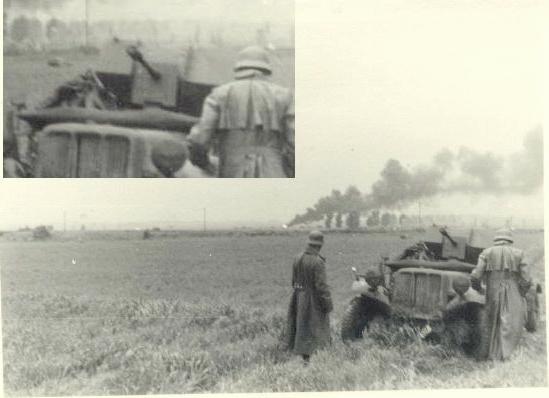

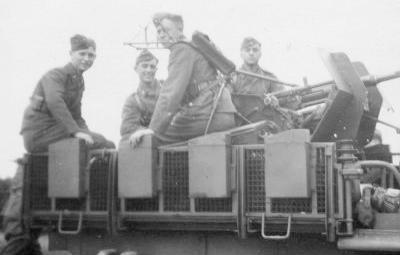

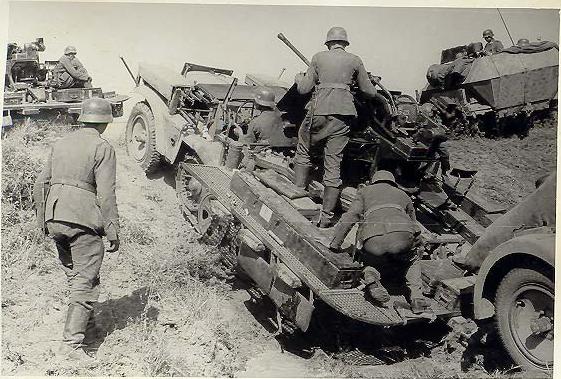

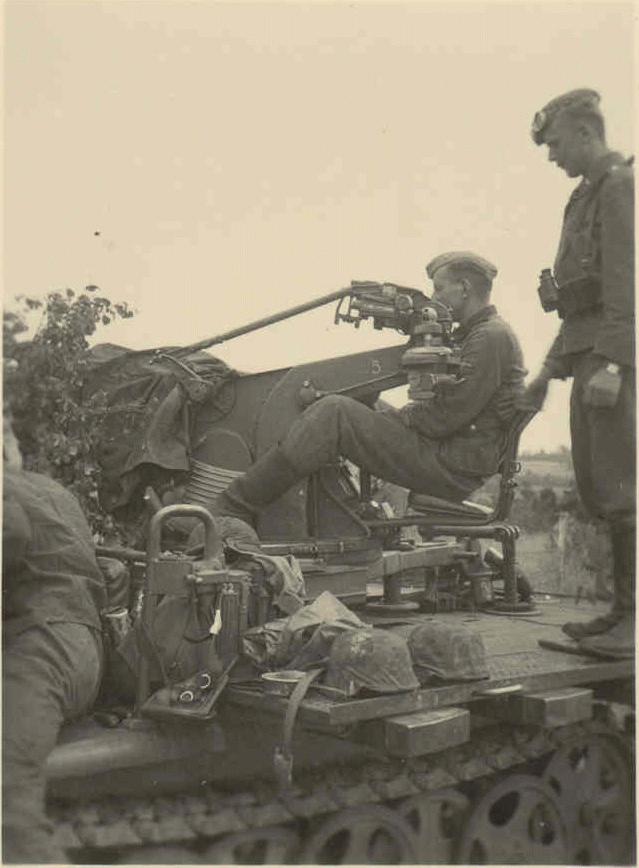

66k VI 1943 photo of Sd. Kfz. 10/4, Russia22k WW2 photo of Sd. Kfz. 10/469k WW2 photo of Sd. Kfz. 10/4 of SS with Luftwaffe platesArmoured modifications D7p included:
Sd. Kfz. 250, 250/1, 250/2, 250/3, 250/4,
250/5, 250/6, 250/7, 250/8, 250/9,
250/10, 250/11, 250/12, 252, 253.
Length: 4750mm, width: 1930mm,
height: 1620mm (2000mm with canvas)
Cargo platform: length - 2100mm,
width - 1860mm
Road clearance: 325mm

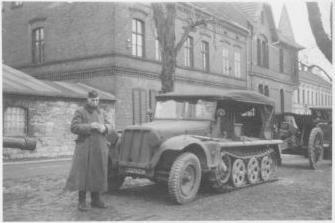

26k WW2 photo of Sd. Kfz. 10/436k WW2 photo of Sd. Kfz. 10/429k WW2 photo of Sd. Kfz. 10/4Front wheel track: 1630mm; toe-in: ? mm;
camber: ?o; caster: ?o
Rear track: 1580mm
Chain: length: 6560mm; width: 240mm,
driving front sprockets
41 steel 160-mm elements with rubber in
every chain, on 1+5+1 wheels (these 5 in chess order)
Turning radius: 5 m

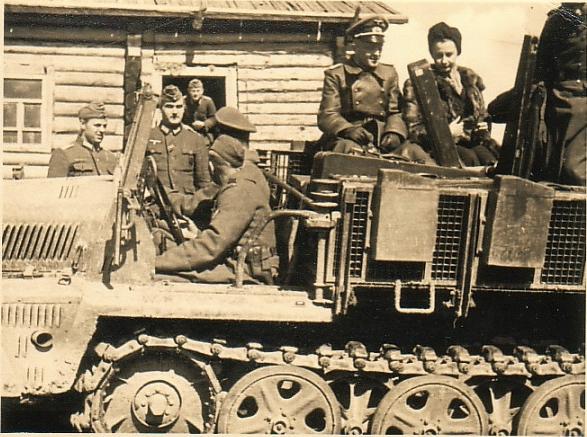

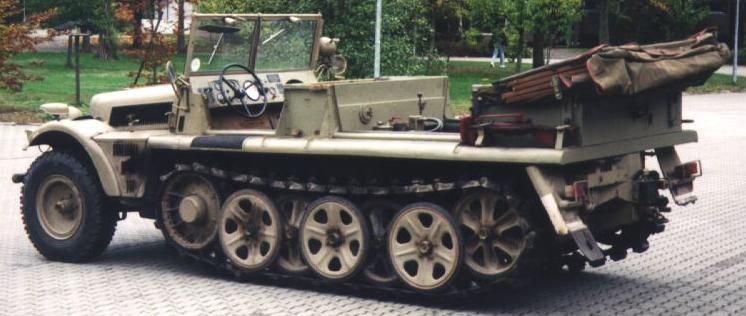

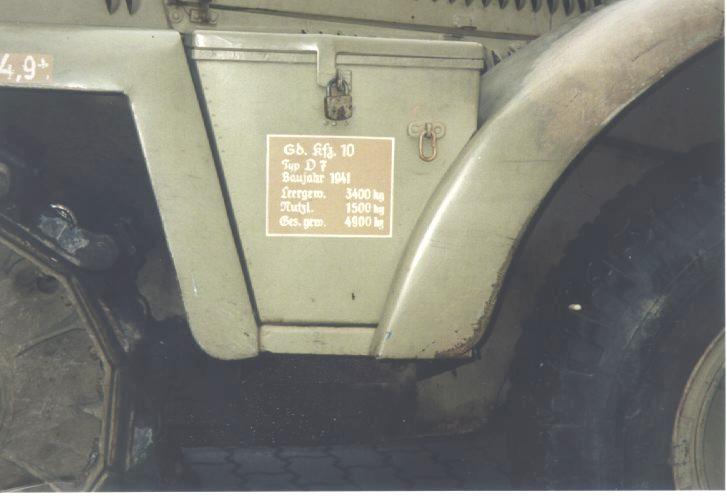

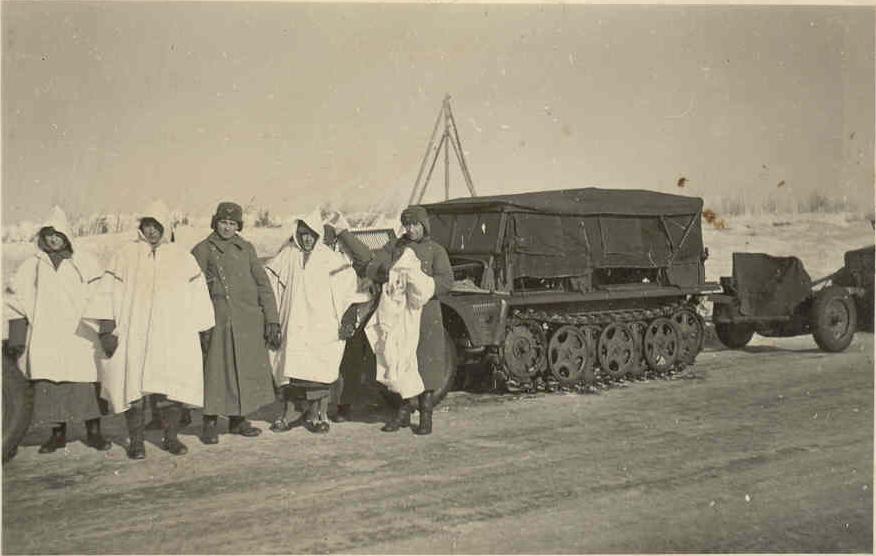

26k WW2 photo of Sd. Kfz. 10 and Pak 3760k WW2 photo of Sd. Kfz. 10/435k photo of 1941 Sd. Kfz. 10, right side boxEngine:
carburetter Maybach HL 42 TRKM
100hp/3000rpm, watercooled straight
6-cyl. slope valve OHC 4-stroke, 4170cc
Bore/Stroke: 90/110 mm
Pistons type and material: ?
Compression ratio: 6,6 : 1
Carburettor: one offroad two-stage Solex 40 IFF II

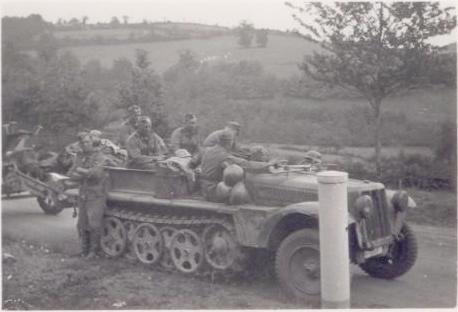

20k WW2 photo of Sd. Kfz. 1065k WW2 photo of Sd. Kfz. 10/447k WW2 photo of Sd. Kfz. 10Carburettor data: ?
Electrics: 12V, battery capacity - 75 A*h
Generator type and power: ?; 130W
Starter type and power: ?, 1,8 hp
Spark plugs type: ?; ?mm;
electrode clearance: ? mm
Clutch: dry twin plate
Gearbox: semi-automatic pre-selector Maybach Variorex SRG 102128 H, 7 forward, 3 back speeds, controlled differential

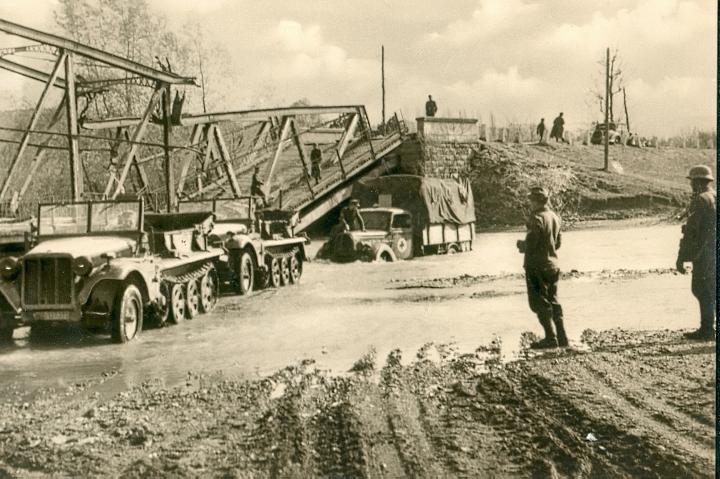

74k WW2 photo of 2 Sd. Kfz. 10 and Ford G917T or 997T, Serbia, 4 G.Div.60k WW2 photo of Sd. Kfz. 1013k WW2 photo of Sd. Kfz. 10Ratios, forward:
I - 8,2; II - 5,4; III - 3,53; IV - 2,28;
V - 1,49; VI - 1,02; VII - 1,00;
back - ?
Frame: steel bath
Front suspension: transversal leaf spring
Rear suspension: torsion bars
Hydraulical brakes on chain front sprockets

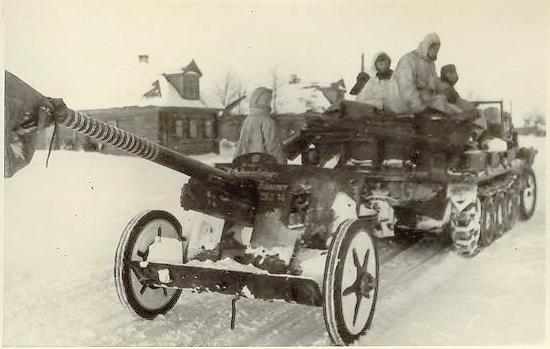

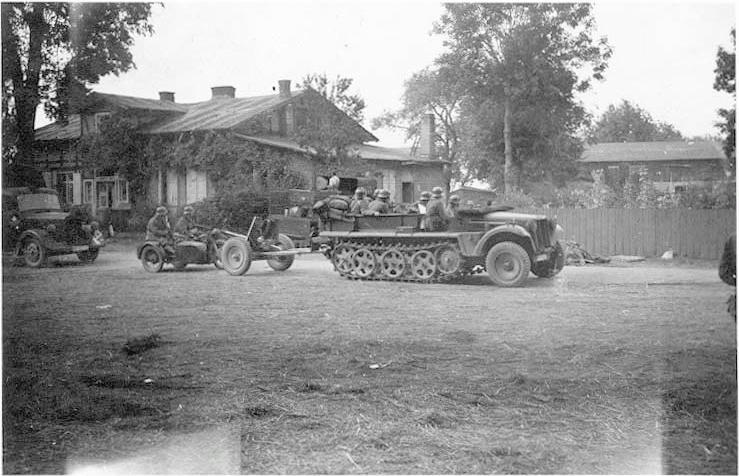

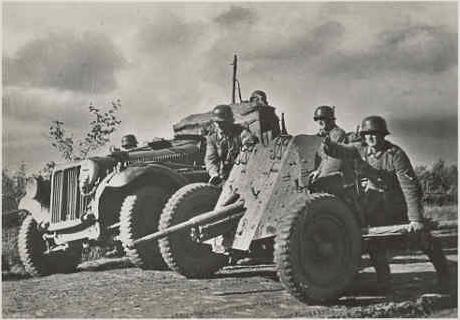

34k WW2 photo of Sd. Kfz. 10/469k WW2 photo of Sd. Kfz. 10 with Pak 37 gun, Poland30k WW2 photo of Guderian group Sd. Kfz. 10, RussiaWeight: 3400kg + 1500kg load;
trailer weight: 1000 kg,
maximal hook ability: 2700kg
Maximal speed: 65 km/h
Tyres: 6,00-20 inches, offroad
Tyre pressures (atmospheres): ?
Fuel tank capacity: 115 Ltr. (under driver's seat)
Petrol consumption: 38 Ltr/100km (highway), 67 Ltr/100km (offroad)
13k WW2 photo of Sd. Kfz. 10/457k WW2 photo of Sd. Kfz. 10 with Pak 3733k photo of 1941 Sd. Kfz. 10Cooling system capacity: ? Ltr.
Gearbox oil carter capacity: ? L
Ford depth: 700mm

Photos and data are from:
Werner Oswald "Kraftfahrzeuge und
Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982, Motorbuch Verlag Stuttgart.
eBay Deutschland.

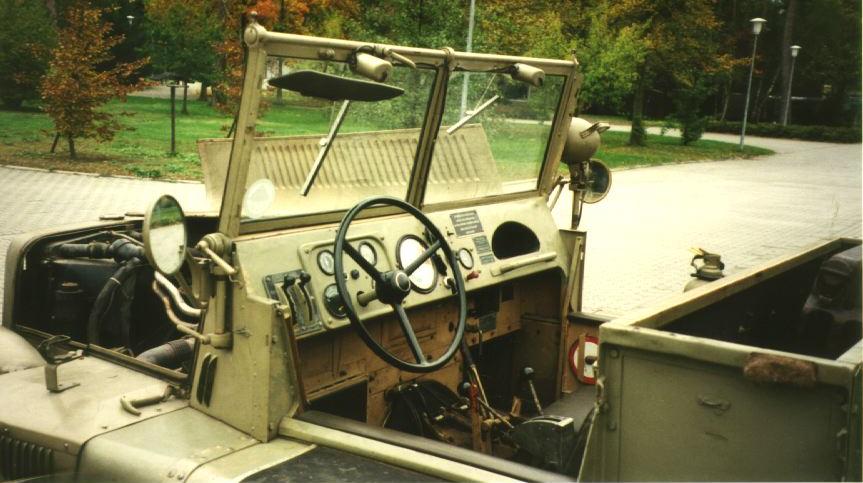

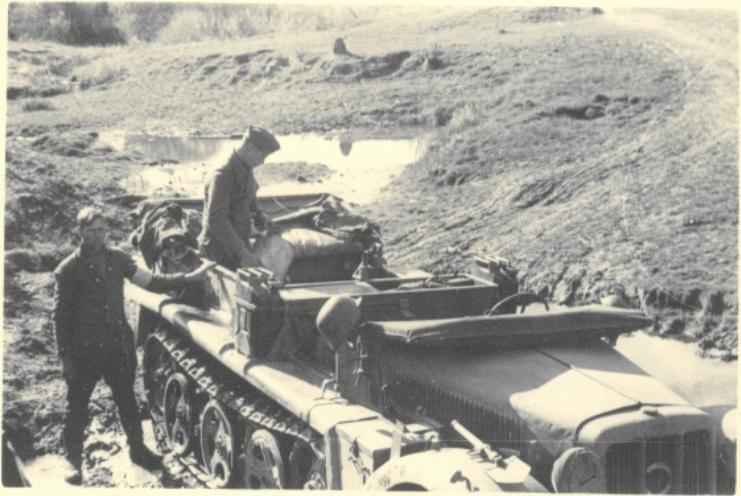

17k WW2 photo of Sd. Kfz. 10/41942 photo of Sd. Kfz. 10, Russia73k photo of 1941 Sd. Kfz. 10, dashboardIgor Guzienko (Kiev).







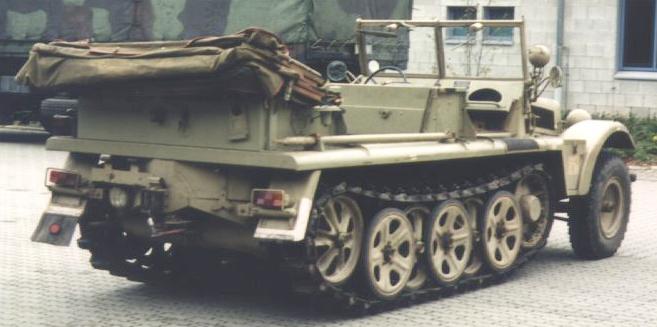

42k photo of 1941 Sd. Kfz. 1034k photo of 1941 Sd. Kfz. 1044k photo of 1941 Sd. Kfz. 10
