Oldtimer picture gallery. Motorcycles. Victoria KR 35 SS "Pionier".

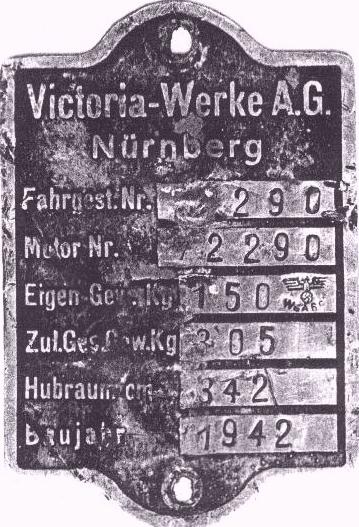

57k photo of 1942 Victoria Pionier, factory plate51k photo of 1942 Victoria KR35SS(?) of Adam L. Zinkiewicz63k photo of 1942 Victoria KR35SS(?) of Adam L. Zinkiewicz
Victoria KR 35 SS

Years of production: VIII 1938 - 1940 (-1942?)
Overall production: about 7500 of all "Pionier"s
Engine: 20hp/5000rpm, 1-cyl, 4-stroke OHV, 342cc
Bore/Stroke: 69/91,5 mm
Compression ratio: 6 : 1
Length: 2160mm, width: 780mm, height: 1000mm
Wheelbase: 1400mm
Frame: tubular, opened in the down
Gearbox: Hurth with foot-control, 4 speeds
Battery ignition
Weight: 145 kg
Maximal speed: 115 - 125 km/h
Tyres: 3,50x19 inches
108k photo of 1939 Victoria KR35SS62k photo of 1942 Victoria KR35SS(?) of Adam L. Zinkiewicz43k photo of 1938 Victoria KR35SSFuel tank capacity: 14 L
Fuel consumption: 2,6 L/100km
Serial numbers of Victoria KR 35 SS and KR 35 SN:
1938: 63504 - 64400 (or from 63501?)
1939: 64401 - 66155
1940: 66156 - ...
Photos are from:

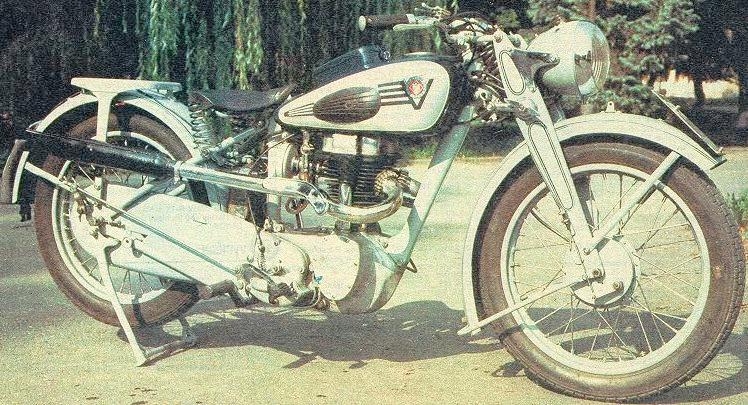

White motorcycle is property of Klaus Weber from MC Nossen, Germany, photo from "Svet Motoru" magazine, Czechoslovakia.

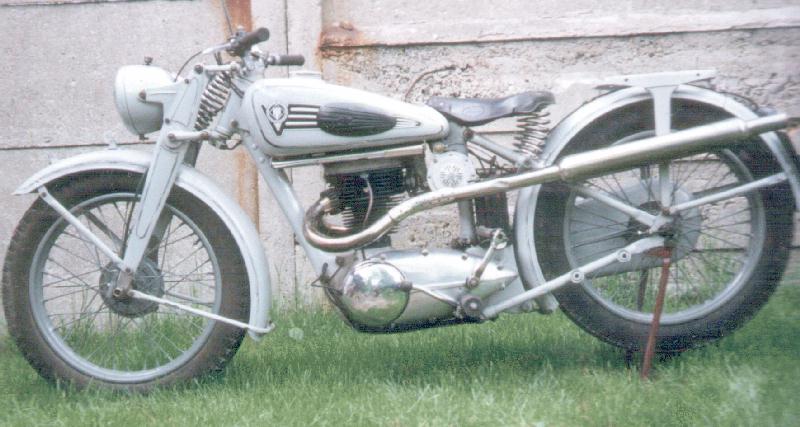

Adam Leszek Zinkiewicz (Zinkiel), Poland, the owner of 1942 Victoria on the upper photo (Nr. of engine and frame :72 290).
Thanks for help to Adam Leszek Zinkiewicz (Zinkiel), Poland.
If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
