Oldtimer picture gallery. Cars. Mercedes-Benz G5.

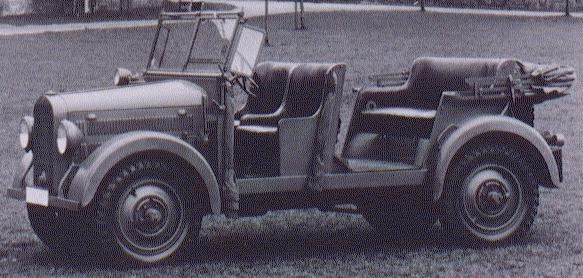

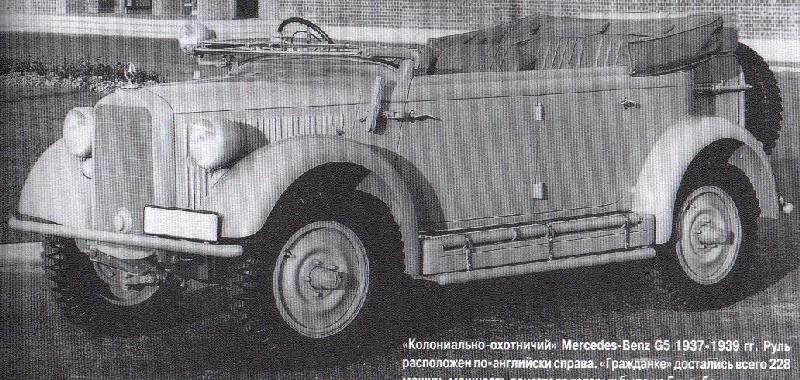

45k image of Mercedes-Benz G5 Wehrmachtwagen41k image of Mercedes-Benz G5 Kolonial- und Jagdwagen
Mercedes-Benz G5 (Geländewagen 5) W152

Years of production: 1937-1941 (Kolonial- und Jagdwagen - 1937-1939)
Overall production: 378, see Production table, (Kolonial- und Jagdwagen - 228 of 378)
Engine: straight 4-cyl SV, 4-stroke M149 II: 2,006cc 45hp/3700rpm; (Kolonial- und Jagdwagen - 50hp)
Wheelbase: 2530mm
Length: 3990mm, width: 1680mm, height: 1900mm (with tarpauline)

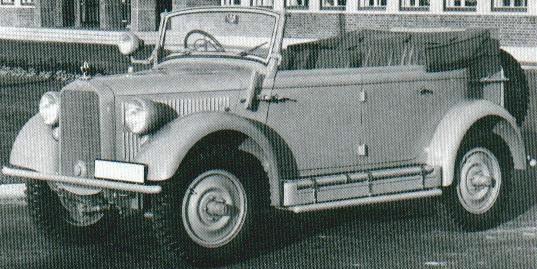

88k image of Mercedes-Benz G5 Kolonial- und Jagdwagen44k image of Mercedes-Benz G5 BergwachtwagenCompression ratio: 6,5 : 1
Bore/Stroke: 82/95mm
Clutch: dry single plate
Front wheel track/Rear track: 1422/1422mm, also 1410/1410mm
Rear axle clearance: 250mm
Turning radius: 6m with fixed rear wheels, 3,5m with controlled rear wheels

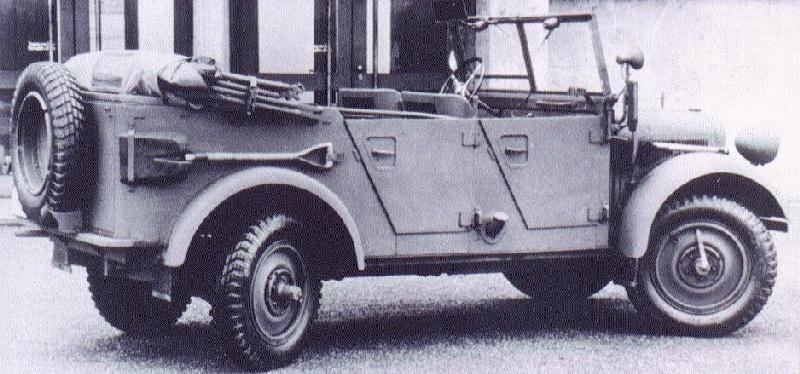

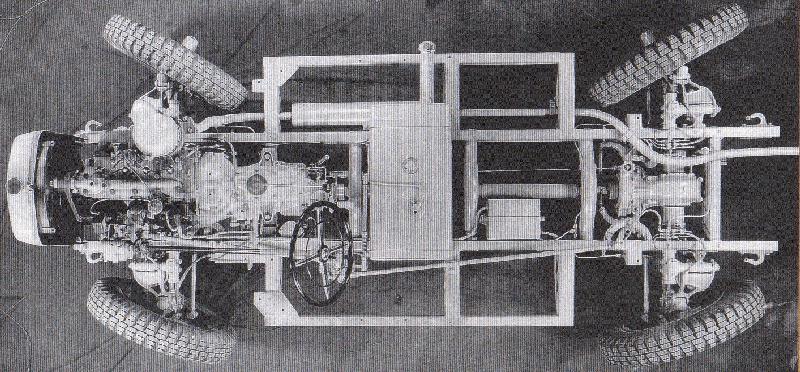

73k image of Mercedes-Benz G5 Wehrmachtwagen100k image of Mercedes-Benz G5 ChassisGearbox: 5 speeds
Ratios: I - 7,22; II - 4,82; III - 2,26; IV - 1,18; V - 0,885; rear - 6,86
Hydraulical brakes on 4 wheels, with thermovacuum amplifier
Weight: 1880 kg
Maximal speed: 85 km/h
Tyres: 6,00x18 inches, SS Gelände
Fuel tank capacity: 50 L
Fuel consumption: 18 L/100km, offroad - 27 L/100km

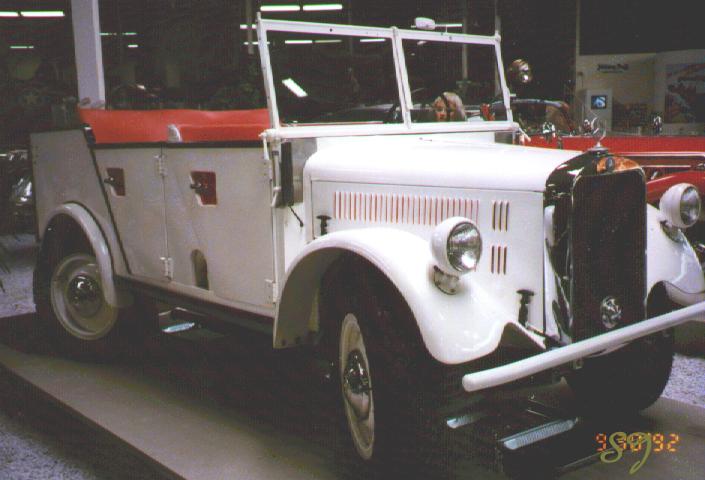

44k photo of white Wehrmacht staff G5 is gift of Jan Szatan.
The rest images and data are from "4x4 Club" magazine, Russia, article by Denis Orlov,
and from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
