Oldtimer picture gallery. Cars. Mercedes-Benz G4.

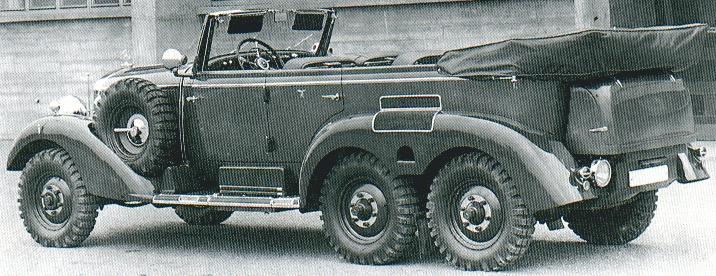

46k image of Mercedes-Benz G452k image of Mercedes-Benz G4
Mercedes-Benz G4 W31

Years of production: 1934-1936, 1937-1938-1939
Overall production: 57, see Production table
Engine: straight 8-cyl, 4-stroke (1934-36 M24: 5,018cc 100hp/3400rpm; 1937-38 M24: 5,252cc 115hp/3400rpm; 1938-39 M24 II: 5,401cc 110hp/3400rpm)
Wheelbase: 3100+950mm
Length: 5360-5720mm, width: 1870mm, height: 1900mm
73k image of 1937 Mercedes-Benz G447k image of 1939 Mercedes-Benz G4 Reichspost RadiostationCompression ratio: 1934-38 - 5.6:1; 1938-39 - 5.2:1
Bore/Stroke: 1934-36 M24: 86/108mm; 1937-38 M24: 88/108mm; 1938-39 M24 II: 88/111mm
Clutch: dry single plate
Front wheel track: 1620mm
Rear track: 1570mm (both axles)
Rear axle clearance: 233mm
Turning radius: 8.5m
74k image of 1939 Mercedes-Benz G472k image of 1934 Mercedes-Benz G4Gearbox: 4 speeds
Hydraulical shoe brakes on 4 wheels
Weight: 3550 kg
Maximal speed: 67 km/h
Tyres: 7.5x17 inches
Fuel tank capacity: 90 or 140 L
63k image of 1939 Mercedes-Benz G4Fuel consumption: 28 L/100km, offroad - 38 L/100km
Images and data are from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
