Oldtimer picture gallery. Cars. Mercedes-Benz 320 n.

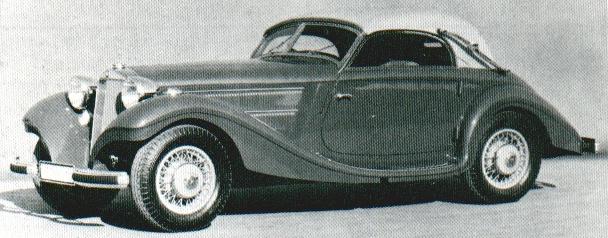

36k image of Mercedes-Benz-320 n Cabriolet A
Mercedes-Benz 320 n (W142 I)

Years of production: II 1937-1938
Overall production: 1060, see Production table
Body modifications (price in RM):

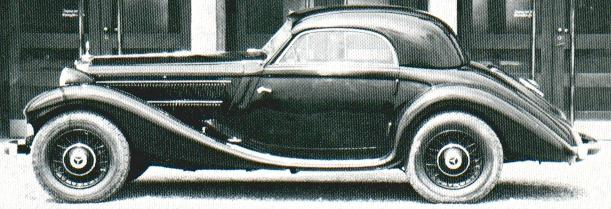

39k image of Mercedes-Benz-320 n Combinations-CoupeChassis: 6500 RM
Cabriolet A (2-light 2+1): 11800 RM, 1937-38,
Coupe (with removable roof): 12300 RM, 1937-38,
Miscellaneous bodies by special order.
Length: 4700mm, width: 1770mm, height: 1500mm
Wheelbase: 2880mm
Engine: 78hp/4000rpm, straight 6-cyl, 4-stroke 3,207cc
Compression ratio: 5.6-7.25:1
Bore/Stroke: 82.5/100mm
Clutch: dry single plate, Komet-Mecano, F&S
Front wheel track: 1475mm
Rear track: 1500mm
Rear axle clearance: 200mm
Turning radius: 5.5m
Gearbox: 4 speeds Daimler-Benz
Hydraulical shoe brakes on all wheels
Weight: 1725 kg
Maximal speed: 130 km/h
Tyres: 6.50x17 inches
Fuel tank capacity: 72+4.0 L
Fuel consumption: 17 L/100km
Both images and some data are from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
