Oldtimer picture gallery. Cars. Mercedes-Benz 170H.

15k image of Mercedes-Benz 170H Limousine
Mercedes-Benz 170H (W28)

Years of production: 1935-1939
Overall production: 1507 examples, see Production table
Body modifications (price in RM):
Chassis (3300 RM, 1936-39)
2-door Limousine (4350 RM, 1936-39)
31k image of Mercedes-Benz 170H Limousine2-door Cabrio-Limousine (4500 RM, 1936-39)
Engine: M28 38hp/3400rpm, straight 4-cyl, 4-stroke 1,697cc
Compression ratio: 6 : 1
Bore/Stroke: 73.5/100mm
Clutch: dry single plate
26k image of Mercedes-Benz 170H Cabrio-LimousineLength: 4200mm, width: 1580mm, height: 1600mm
Wheelbase: 2600mm
Front wheel track: 1315mm
Rear track: 1270mm
Rear axle clearance: 205 mm

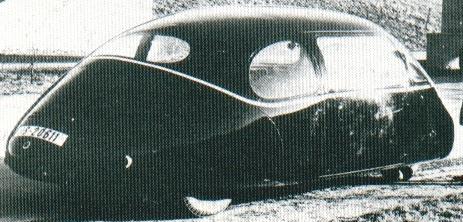

25k image of 1938 Mercedes-Benz 170H Stromlinien-Limousine prototype by Ludewig, EssenTurning radius: 5.7m
Gearbox: 4 speeds (4th - overdrive) + rear
Hydraulical brakes on all wheels
Weight: 1125 kg
Maximal speed: 110 km/h
Tyres: 5.00x17 inches
30k image of 1938 Mercedes-Benz 170H Stromlinien-Limousine prototype by Ludewig, EssenFuel tank capacity: 40 + 6 L
Fuel consumption: 11 L/100km
15k color image of Mercedes-Benz 130 Limousine has been kindly sent by Martin Vorwahl, collector of oldtimer photos, Oldenburg, Germany.
Many images and data are from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
