Oldtimers picture gallery. Trucks. Tatra 82.

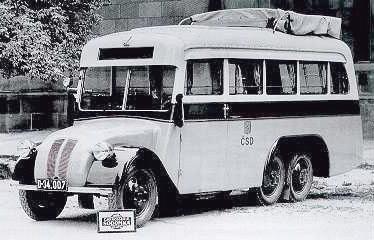

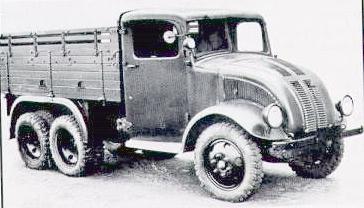

23k photo of Bohemia bus by Sodomka11k photo of early Tatra-82 cargo
Tatra 82

Years of production: 1935-1937 (early models with lower bonnet)
6x4 2-ton cargo truck, command car, integral van, bus and others.
Overall production: 325
Engine: air cooling 4-cyl. HO, 2494cc, 54hp/3500rpm
Dimensions: length - 5600mm, width - 2000mm, height - 1950mm
Cargo platform: length - ?mm, width - ?mm, board height - ?mm
Wheelbase: 3360mm + 920mm

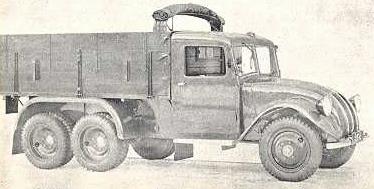

1935 Tatra-82 command car19k photo of late Tatra-82 cargoBackbone frame chassis
Front wheel track: ?mm, independent transversal leaf-spring suspension
Rear track: ?mm, longitudinal leaf-spring suspension
Road clearance: ?mm
Water ford depth: ?mm
Turning radius: ? m
Compression ratio: ? : 1
16k photo of early Tatra-82 cargo14k photo of 1935-1936 Tatra-82 command carBore/Stroke: ?/?mm
Carburetter: ?
Battery: ? Volt, ? Ah
Clutch: ?
Gearbox: 4-speed + back, 2-speed transfer box
Ratios: I - ?, II - ?, III - ?, IV - ?
Differential ratio: ?
Hydraulic brakes: on all wheels(?), hand brakes - on ... (?)
Weight: 3150 kg (command car - about 2500 kg)
Maximal speed on highway: ? km/h
Tyres: 6,00x20 inches (command car - 9,75x20 inches)
Fuel tank capacity: ? L
Fuel consumption: ? L/100km
Optional winch

Photos and data are from:
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
"Encyklopedija avtoznamenitostei", Za ruljom, Moscow, 2000.
"Motor-revju" magazine, Czechoslovakia.
BAhR Automotive History Pages,
Werner Oswald's book "Kraftfahrzeuge und Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982, Motorbuch Verlag Stuttgart.
Thanks a lot to Denis Orlov (Moscow).
