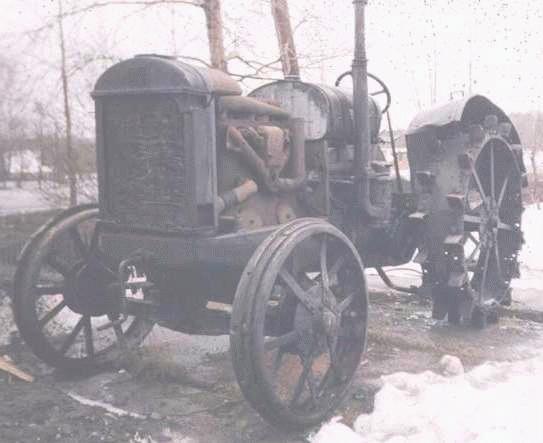

28k photo of HTZ built STZ-HTZ23k 1941 photo of STZ-HTZ
STZ-HTZ


Years of production: STZ: 17 VI 1930 - 15 V 1937;
HTZ: 1 X 1931 - 1937; 2-i Avtoremontnyi Zavod: 1948-1950
Overall production: 390500
STZ - 207036(?) units, HTZ - ? (Nr. 100000 in 1935), 2-i Avtoremontnyi Zavod - ?
Kerosene engine agricultural tractor
Engine: own 30hp/1000rpm, straight 4-cylinder petrol start kerosene working OHV, 6315cc
1942 photo of STZ-HTZ1942 photo of STZ-HTZTowing pintle power: 15hp
Bore/Stroke: 115/152 mm
Compression ratio: 4,13 : 1
Length: 3485 mm, width: 1685 mm,
height: 2450 mm (1770 mm without spurs and air input funnel)
Road clearance: 267 mm
6 Volt electrics
Gearbox: 3-speed auxilliary, in rear axle
41k WW2 photo of STZ-HTZ12k VII 1941 photo of STZ-HTZRatios: I - 3,20; II - 2,50; III - 1,52; back - 2,70
Rear wheeldrive
Steering: of automobile type
Suspension: front - swinging
Mechanical tape brakes, hand control
Wheelbase: 2172 mm
Wheel track: 1350 mm
Weight: own 2630 kg, fuelled (without driver) 3000 kg
24k photo of STZ-HTZ57k photo of STZ-HTZTowing capacity: with gearbox ratios:
I - 1200 kg; II - 900kg; III - 550 kg
Maximal speed: with gearbox ratios:
I - 3,5 km/h; II - 4,5 km/h; III - 7,4 km/h; back - 4,2 km/h
Fuel tank capacity: petrol - 3,5 Ltr., kerosene - 70 Ltr.
Fuel consumption: ? /100km

Photos and data are from:
"Traktory i avtomobili", S.M.Davidovich, K.I.Talvik, OGIZ.Selhozgiz, Leningrad, 1946,
eBay Deutschland.
Vladimir Kolotovkin (Moscow, Club RKKA, VARS).
Iz Ruk v Ruki - Avto (Moscow).
