Oldtimers picture gallery. Cars. Steyr 100.

70k photo of Steyr-100 Limousine on 1935 Monte Carlo Rally
Steyr 100

Years of production: 1934-1936
Overall production: 2850
4x2 4-seater front motor rear wheel drive car
Body types: Cabriolet, 4-door Limousine, ... ?
Engine: 32hp/3600rpm, petrol, water cooled straight 4-cyl. SV, 4-stroke, 1385cc
Compression ratio: ? : 1
Bore/Stroke: 70/90mm
Carburettor: Pallas HJL
Battery: ?V, ? A*h
Steyr-100 CabrioletGenerator: ?, ? A*h
Interrupter-distributor: BOSCH VE4 ARS138
Spark plugs type: ?, ?mm
Cylinder firing order: 1-3-4-2
Thermosyphon cooling
Clutch: semi-moistured single plate
Length: 4370 mm, width: ? mm, height: ? mm
Wheelbase: 2600mm

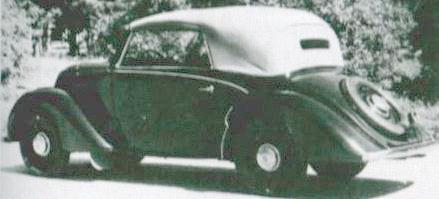

15k photo of Steyr-100 CabrioletPlatform-type frame
Front wheel track: 1240 mm
Rear track: 1240 mm
Road clearance: ? mm
Turning radius: 5,6 m
Gearbox: 4 speed + rear (synchronized III and IV)
Ratios: IV - 5,08, III - 2,85, II - 1,69, I - 1,00, rear - 8,2
Rear axle ratio: 4,55
Front suspension: independent, on 2 semi-elliptic leaf springs
Rear suspension: independent, on 2 quarter-elliptic leaf springs
Brakes: all-wheel, hydraulic
Weight: 995 kg (Cabriolet), chassis - 550 kg
Maximal speed: 105 km/h
Tyres: 4,75-17 inches
Fuel tank capacity: 33 Ltr
Fuel consumption: 9...10,5 Ltr/100km
Cooling system capacity: ? Ltr.

Photos and data are from:
Bogdan Coconoiu (Bucharest), owner of Steyr 100.
"A-Z of Cars of the 1930s", Michael Sedgwick & Mark Gillies, Bay View Books Ltd..
