Oldtimer picture gallery. Motorcycles. Horex T5, T6.

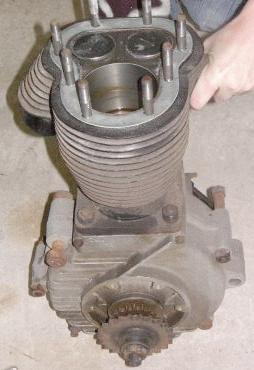

17k photo of Horex T6 motor29k photo of Horex T5 or T6, Luftwaffe17k photo of Horex T6 motor
Horex T5, T6

Years of production:
T5 - 1935-1937-1940;
T6 - 1935-1937-1941
Overall production: ?
Engines:
T5: Columbus C 1 M; 16hp/4500rpm,
1-cyl. SV 493cc
Bore/Stroke: 80/98 mm
Compression ratio: 5,3 : 1
T6: Columbus D 1 M; 18hp/4750rpm,
1-cyl. SV 591cc
Bore/Stroke: 80/117,5 mm
Compression ratio: 5,3 : 1
14k photo of Horex T6 motor10k photo of Horex T6 motor56k photo of Horex T5 or T6, LuftwaffeSpark plug: ?, ?mm
Carburetter:
T5, T6: Amal 76/011
Chain
Length: ?mm, width: ?mm,
saddle height: ?mm
Wheelbase: ?mm, road clearance: ?mm
Gearbox: ?-speed
Ratios: ?
Parallelogram front fork
Weight: ? kg
Maximal speed:
T5: 104 km/h (solo), 85 km/h (with sidecar)
T6: 112 km/h (solo), 90 km/h (with sidecar)

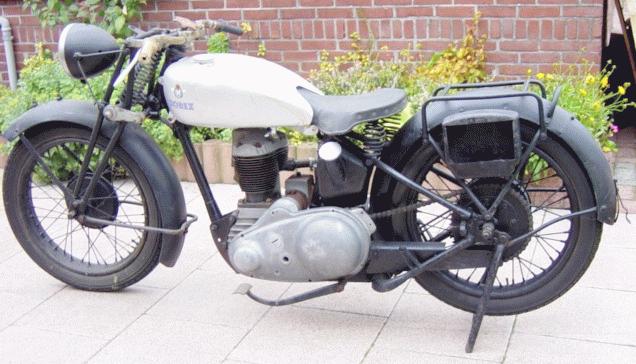

47k photo of Horex T5 or T6, Luftwaffe48k photo of 1938 Horex T5Tyres: ?-? inches
Tyre pressures, atmospheres: front - ?, rear - ?
Fuel tank capacity: ? Ltr.
Fuel consumption:
T5: 3,5 Ltr./100km (solo), 4,3 Ltr./100km (with sidecar)
T6: 3,8 Ltr./100km (solo), 4,6 Ltr./100km (with sidecar)
Oil consumption: 0,125 Ltr./100km (T5, T6)

Photos are from:
eBay Deutschland.
Albert Eringfelds Horex Homepage.
