Oldtimer gallery. Cars. Horch 830R Kfz.15.

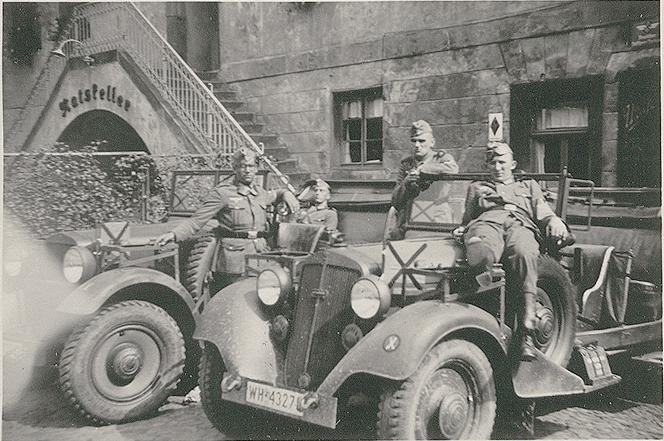

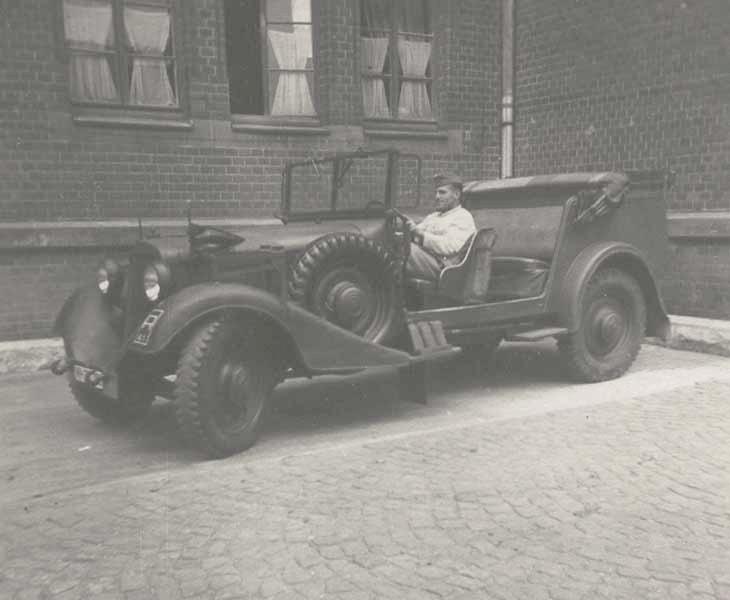

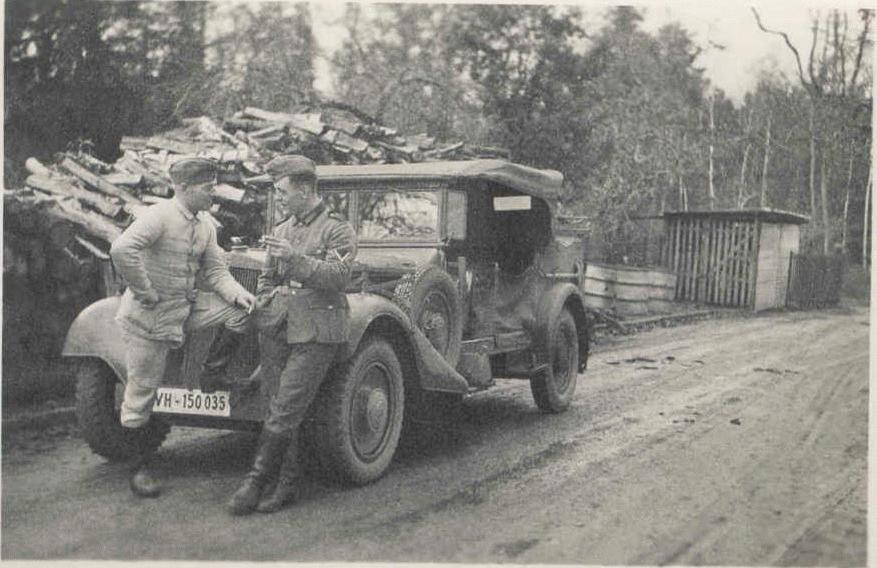

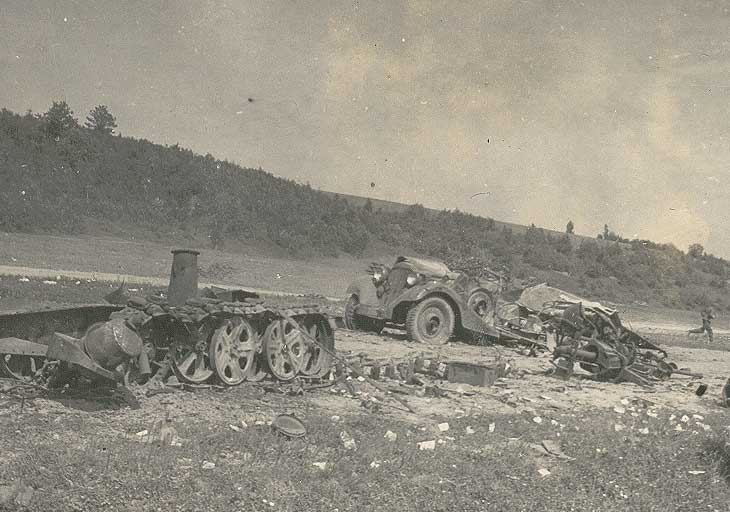

Horch 830R Kraftfahrzeug 15.
4x2 (rear wheeldrive) army signals car
(Nachrichten Kraftwagen),
based on Horch 830.
Years of production: 1934 - 1937
Overall production
(including Kfz.17 and Kfz.12):
3972 (3250cc motor, 1934-1937) + 564 (3004cc motor, 1934)
Length: 4750mm, width: 1780mm, height: 1850mm
Wheelbase: 3200mm, road clearance: ?mm
Front wheel track: 1456mm
Rear track: 1516mm
Turning radius: 7m
Engines:
1934-1937 - 70hp/3200rpm, V8-cyl.
(60o V-form) 4-stroke SV, 3250cc
Bore/Stroke: 78/85 mm
Compression ratio: 6,3 : 1
1934 - 62hp/3200rpm, V8-cyl.
(60o V-form) 4-stroke SV, 3004cc
Bore/Stroke: 75/85 mm
Compression ratio: 6,0 : 1
Carburettor: one Solex 30 JFPP
Battery 12V (under front seat),
battery capacity - 60 A*h
Generator type and power:
?, 90 or 100 W
Starter type and power:
?; 1,2, 1,4 or 1,8 hp
Cooling by water pump
Clutch: dry single plate
Clutch pedal clearance: ?mm
Gearboxes (2 types):
ZahnradFabrik-Aphon Gb 25:
4 forward, 1 back
Ratios: I - 4,85, II - 2,35, III - 1,41,
IV - 1,00, rear - ? (II - IV synchronized)
Prometheus AGN 8: 4 forward, 1 back
Ratios: I - 4,52, II - 2,62, III - 1,49, IV - 1,00, rear - ? (not synchronized)
Axle gear ratio: 4,90 : 1 (49 : 10)
Box-profile frame
Front suspension: leaf spring
Rear suspension: leaf spring
Main brakes: hydraulic all-wheel
Hand brakes: ?
Weight: 1820kg
Maximal speed: 110 km/h
Tyres:
offroad, 6,00-20 or 6,50-20 inches
Tyre pressures (atmospheres):
front - ?, rear - ?
Fuel tank capacity: 75 Ltr. (in the rear)
Fuel consumption:
20 Ltr./100km (highway), ? Ltr./100km (offroad)
Cooling system capacity: 21 Ltr.
Water ford: ?mm

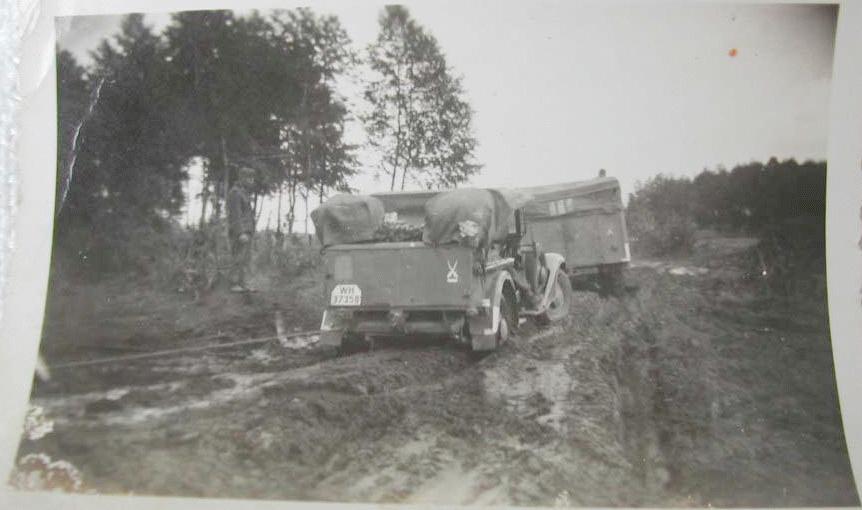

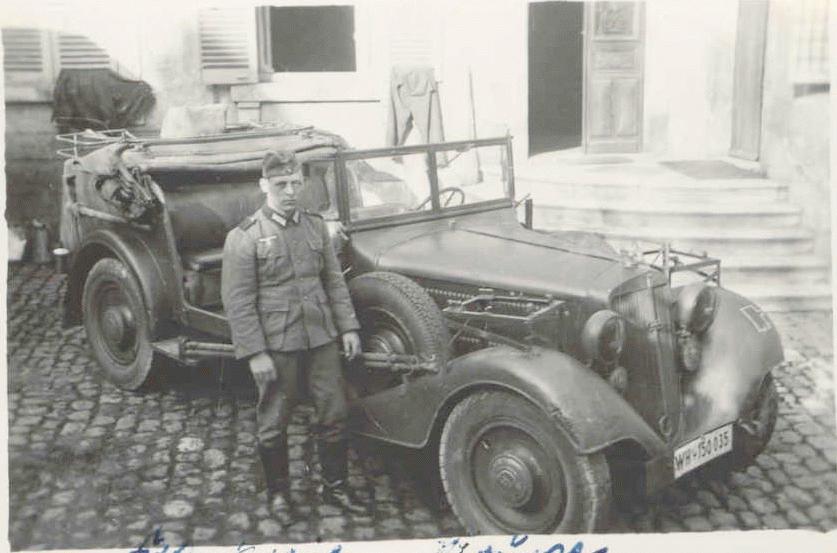

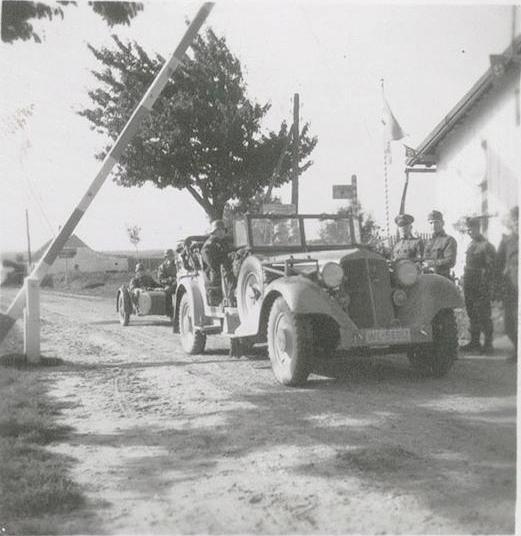

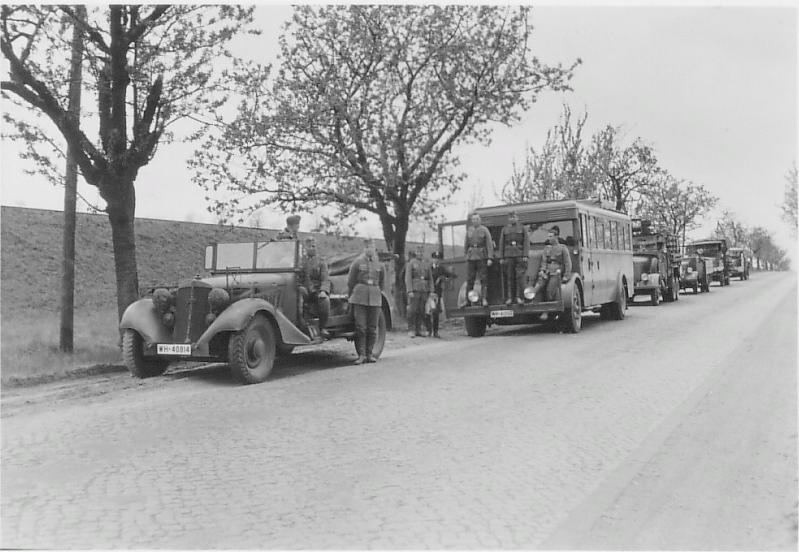

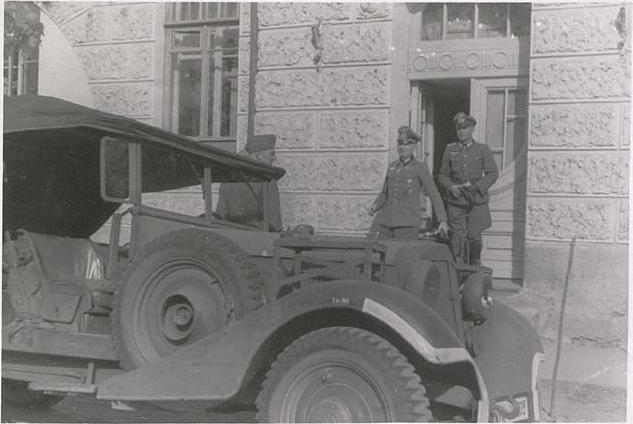

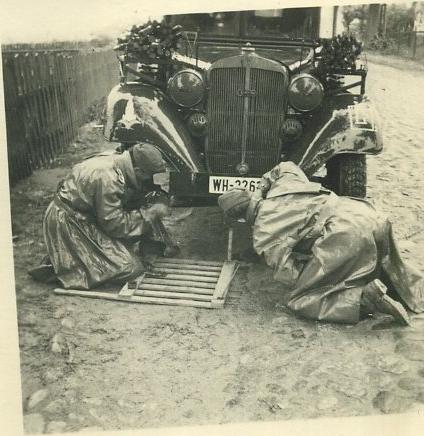

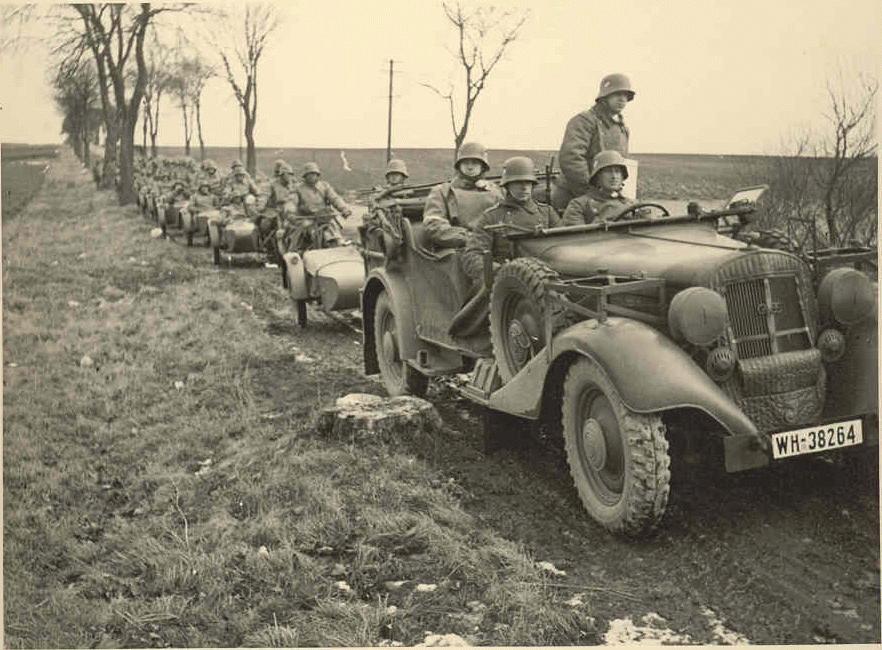

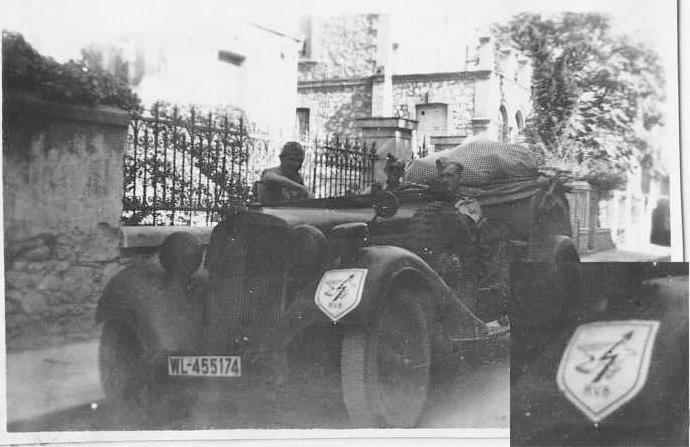

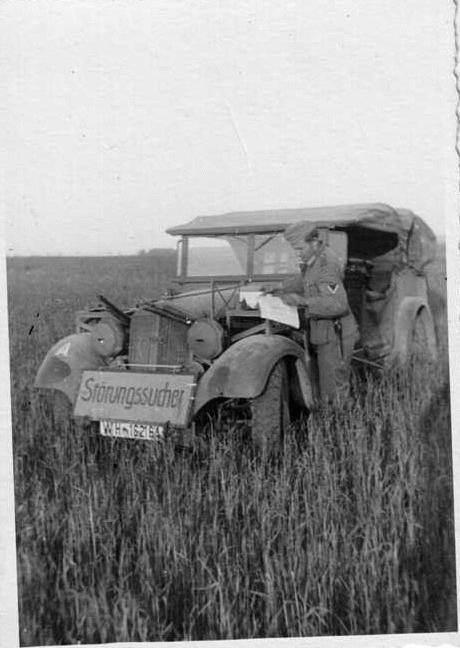

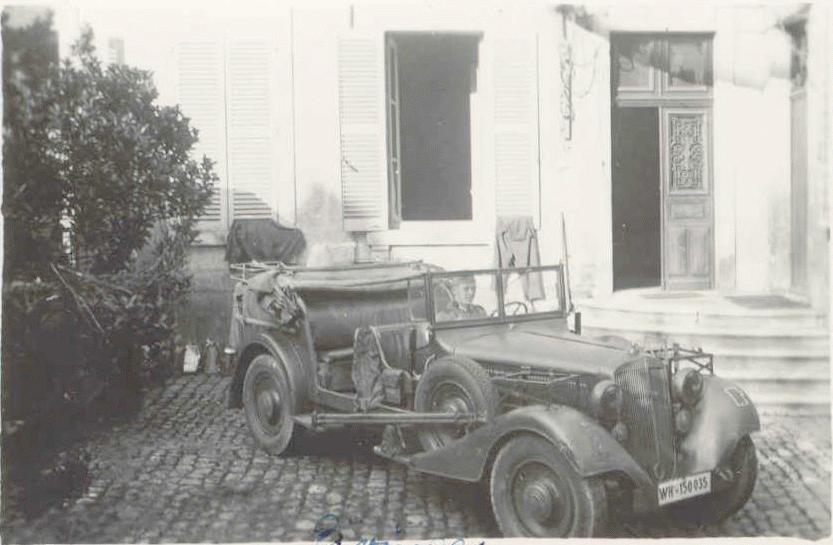

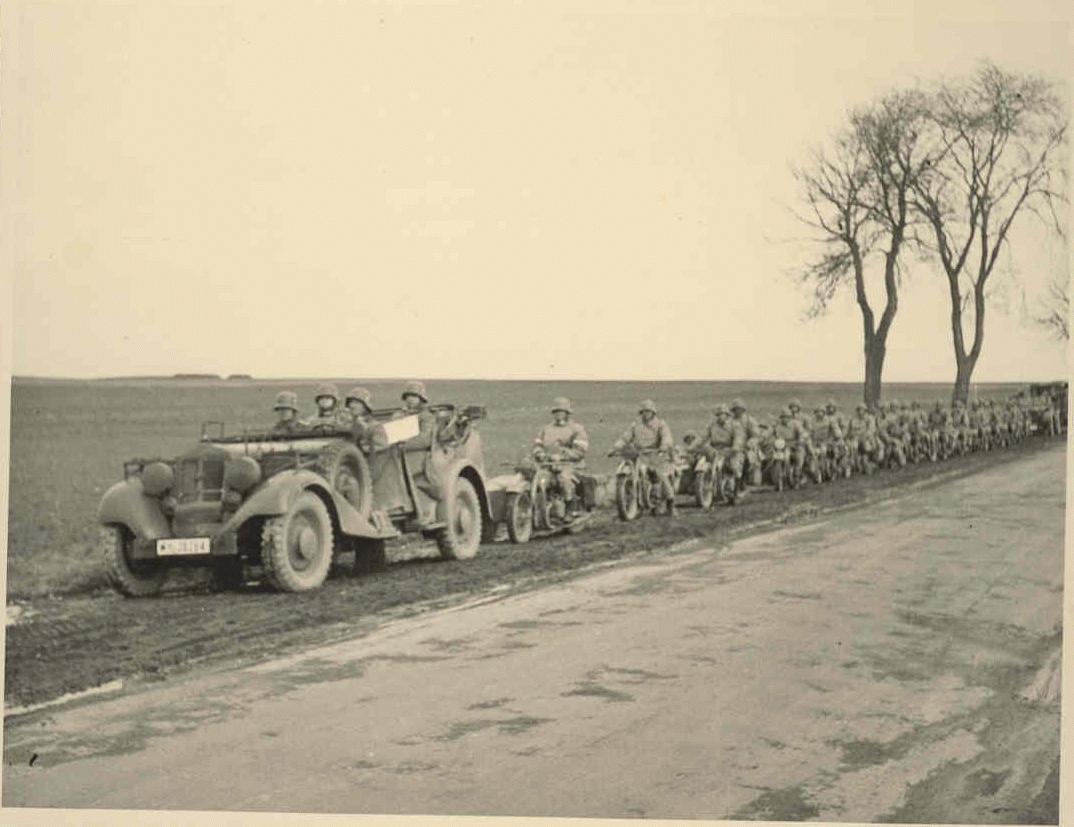

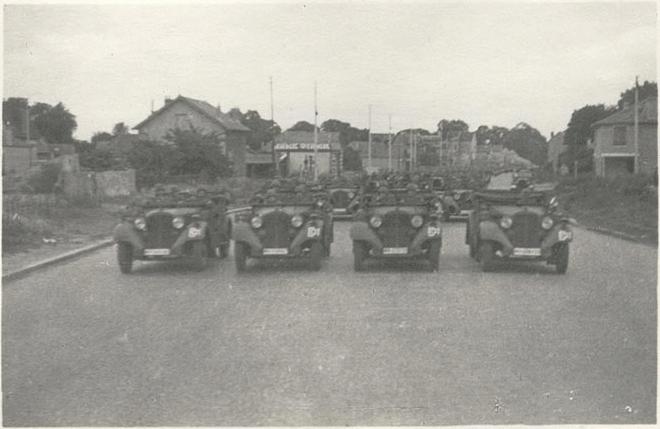

More WW2 photos with m11:

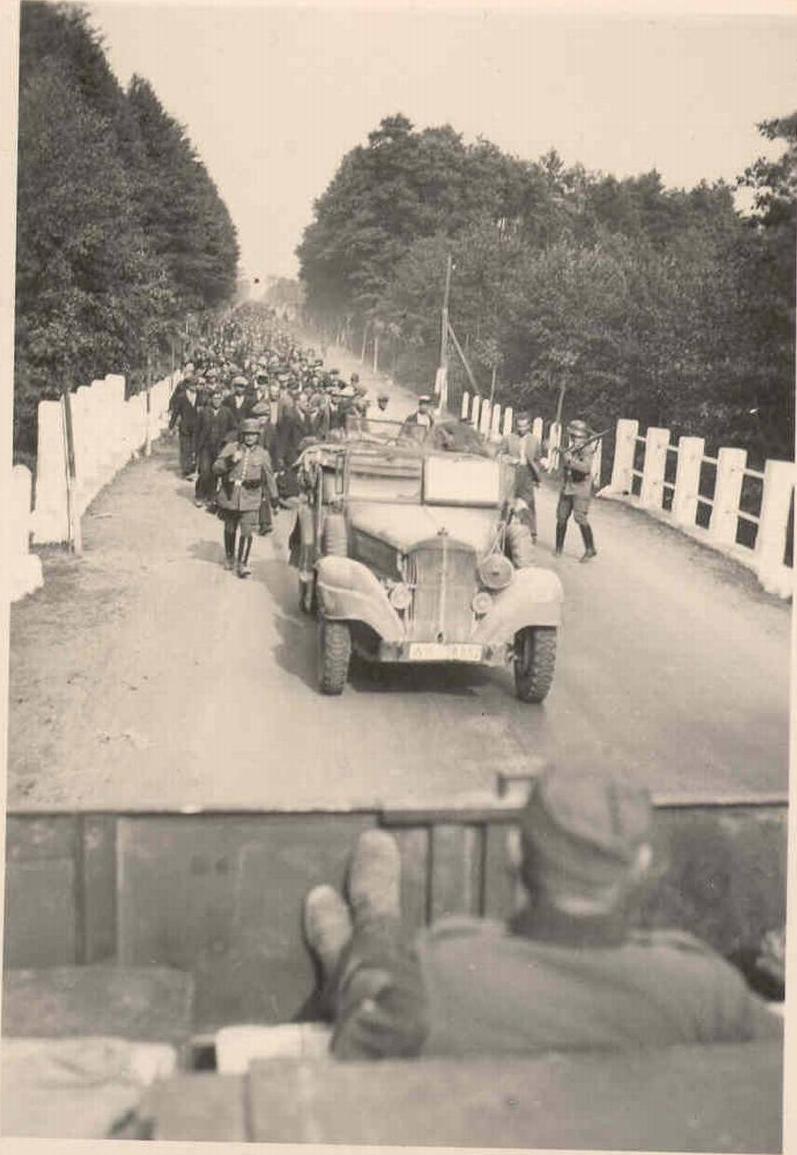

1. 94k WW2 photo of Horch 830R Kfz. 15 taken from Einheits-Diesel

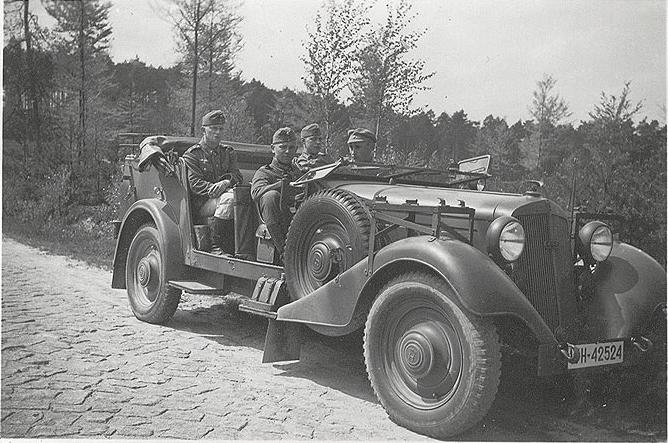

2. 77k photo of Horch 830R Kfz. 15 WH-42524, 44th Pionier Battl. Riesa.
3. 70k photo of Horch 830R Kfz. 15, Bad Pyrmont.

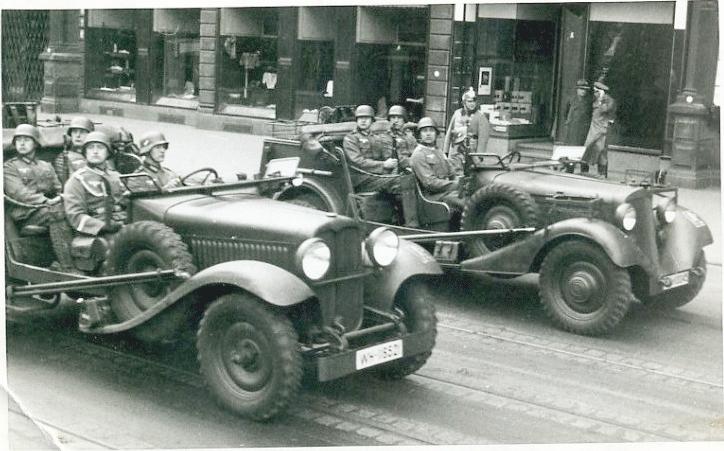

4. 62k photo of Stoewer M12 and Horch 830R Kfz. 15.

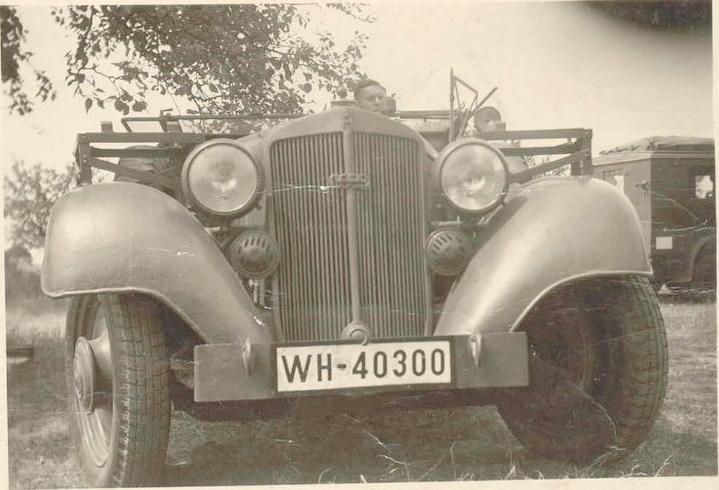

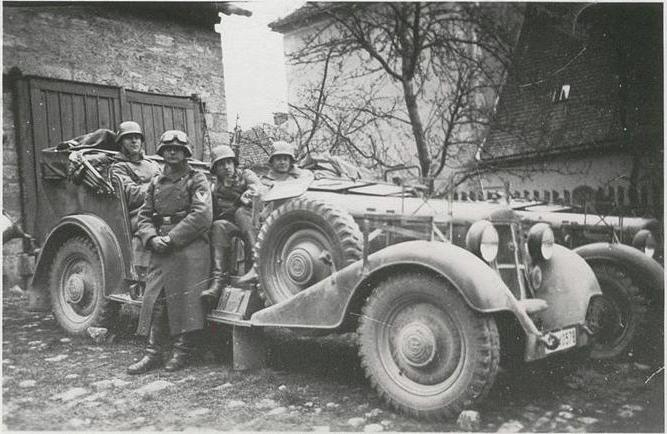

5. 53k photo of Horch 830R Kfz. 15 WH-40300.

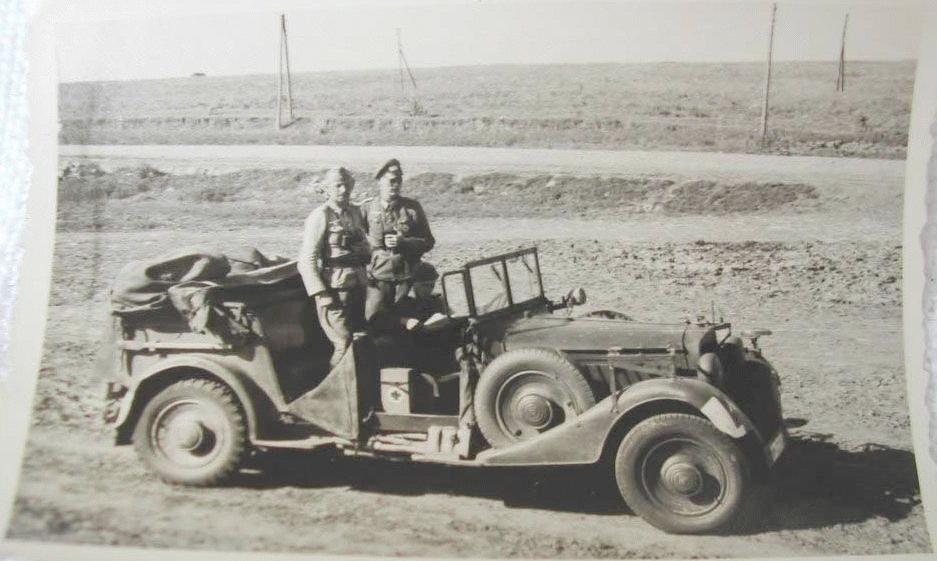

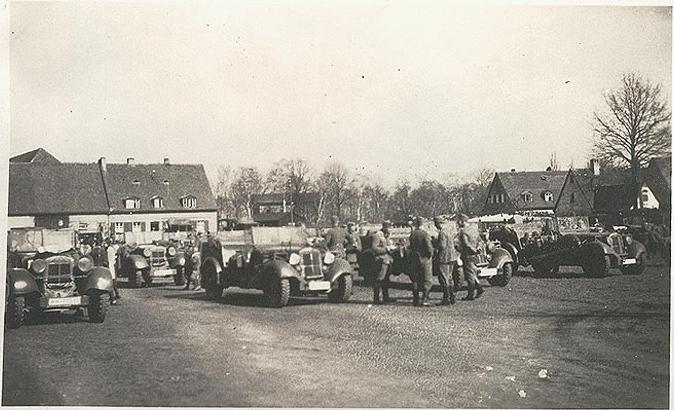

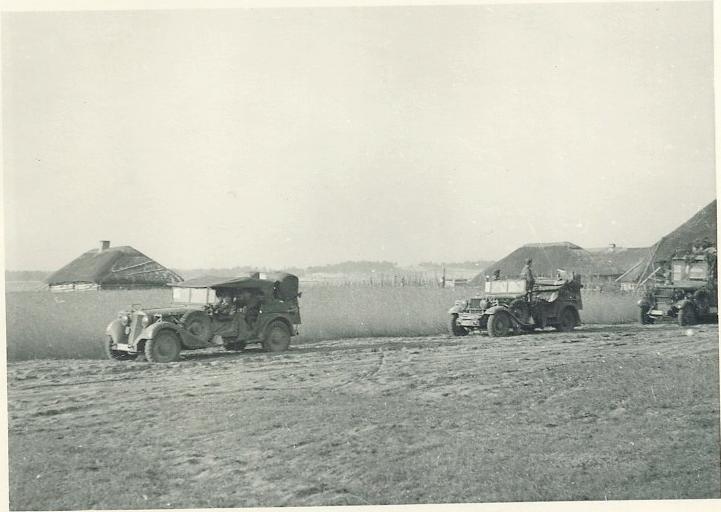

6. 44k photo of Horch 830R Kfz. 15 and Wanderer W11 early kübelwagen.

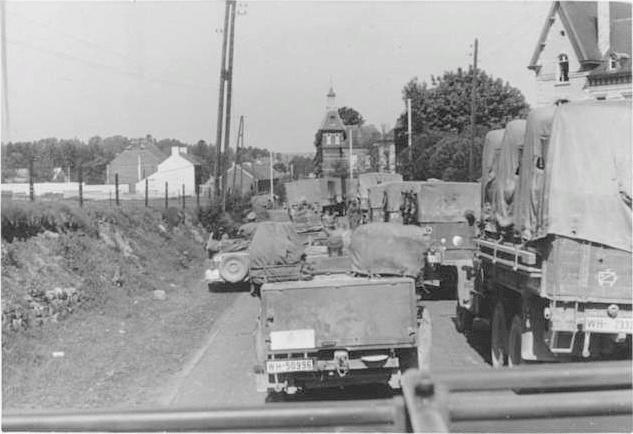

7. 40k photo of Horch 830R Kfz. 15 WH-50996, 2nd Panzer Div., East front.
8. 38k photo of Horch 830R Kfz. 15, USSR.
9. 36k photo of Horch 830R Kfz. 15, 5th Jäger Div., near Demjansk, Novgorod region, Russia.
Sources of photos and information:
eBay Deutschland.
Werner Oswald, "Kraftfahrzeuge und
Panzer der Reichwehr, Wehrmacht und
Bundeswehr", 1982, Motorbuch Verlag Stuttgart.
Reinhard Frank, "Personenkraftwagen der Wehrmacht", Karl Mueller Verlag.
Jan Szatan, Poland.
