Oldtimer picture gallery. Trucks. Sd. Kfz. 9 (s. Zgkw. 18 to). Typ F3.
Parentage firm: Famo, Breslau, Germany (Wrocław, Poland),
then also Warschau, General-Gouvernement (Warszawa, Poland).
Co-producers: Tatra, Vomag.

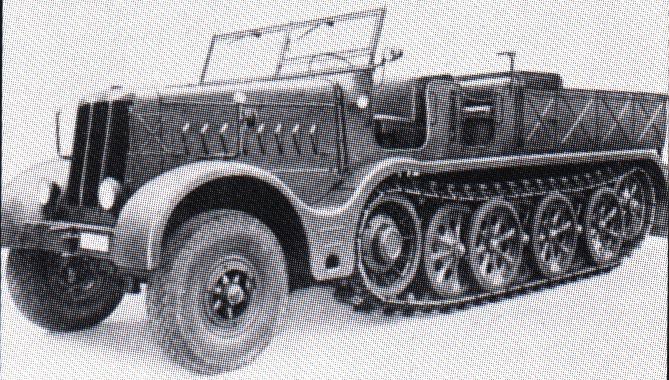

14k WW2 photo of Sd. Kfz. 9 Typ F316k WW2 photo of Sd. Kfz. 9 Typ F3
Sd. Kfz. 9 (Sonder-Kraftfahrzeug 9);
s. Zgkw. 18 to (schwere Zugkraftwagen 18 ton)
(Data for Famo F3 Sd. Kfz. 9 with cargo platform)
Years of production: 1939-1945
(1939-1944 (Famo), 19??-19?? (Tatra), 1940-1944 (Vomag)).
Overall production: about 2500 units
By years: 1939: ?; 1940: 240; 1941: 240; 1942: 384; 1943: 643;
1944: 834; 1945: 90
8-seater half-track heavy tractor, often with Sd. Anhanger 116 (special
trailer) for tank transport
Modifications:
Sd. Kfz. 9 - heavy tractor for tank salvage and trailer towing
Sd. Kfz. 9/1 - 6-ton Bilstein crane
Sd. Kfz. 9/2 - 10-ton crane
Sd. Kfz. ? - 8,8-cm anti-aircraft gun Flak 37

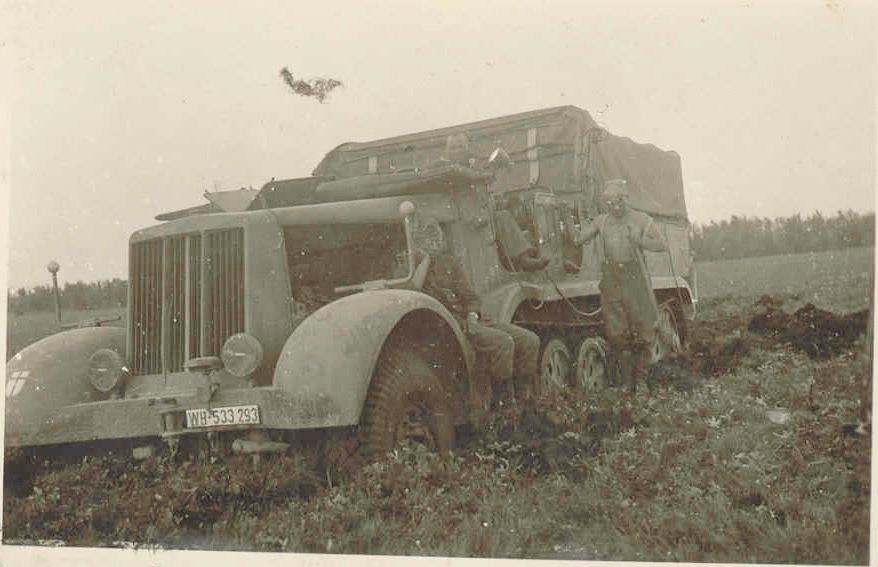

44k WW2 photo of Sd. Kfz. 9 Typ F3WW2 photo of Sd. Kfz. 9 Typ F3Length: 8250mm, width: 2600mm, height: 2850mm
Road clearance: 440mm
Front wheel track: 2100mm; toe-in: ? mm; camber: ?o; caster: ?o
Rear track: 2000mm
Chain: length: 12220mm; width: 440mm,
driving front sprockets
47 steel 260-mm elements with rubber in every chain, on 1+6+1 wheels (these 6 in chess order)
Turning radius: 10,8 m

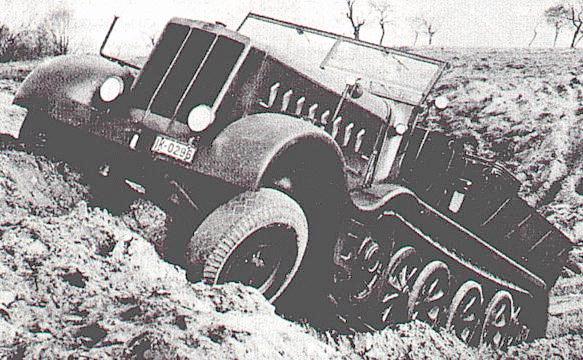

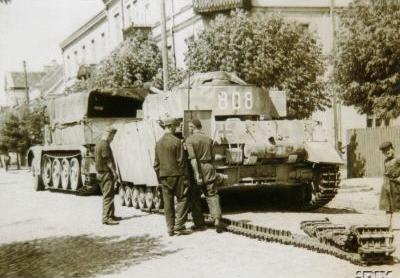

26k WW2 photo of Sd. Kfz. 9 Typ F3 and Pz. IV, Minsk?57k WW2 photo of Sd. Kfz. 9 Typ F3Engine: carburetter Maybach HL 108 TUKRM 250hp/2600rpm,
watercooled V12-cyl. slope valve OHC 4-stroke, 10830cc
Bore/Stroke: 100/115 mm
Pistons type and material: ?
Compression ratio: 6,5 : 1
Carburettor: one offroad two-stage Solex 40 IFF II
Carburettor data: ?
Electrics: 12V, 2 batteries capacity - 105 A*h every

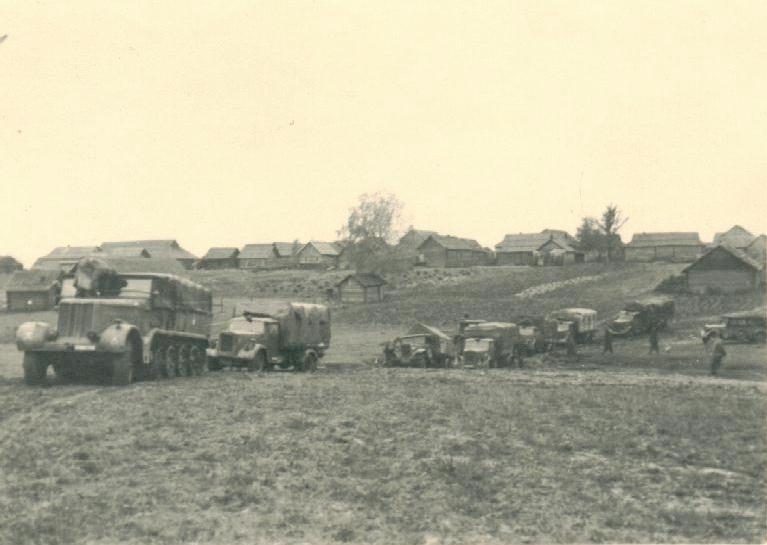

11k WW2 photo of Sd. Kfz. 9 Typ F312k WW2 photo of Sd. Kfz. 9 Typ F3Generator type and power: ?; 300W
Starter type and power: ?, 4 hp
Spark plugs type: ?; ?mm; electrode clearance: ? mm
Clutch: dry twin plate
Gearbox: (4 forward, 1 back speeds) x 2 speeds of auxilliary box
Ratios: ?
Frame: U-profile
Front suspension: transversal leaf springs

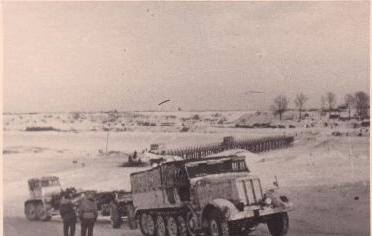

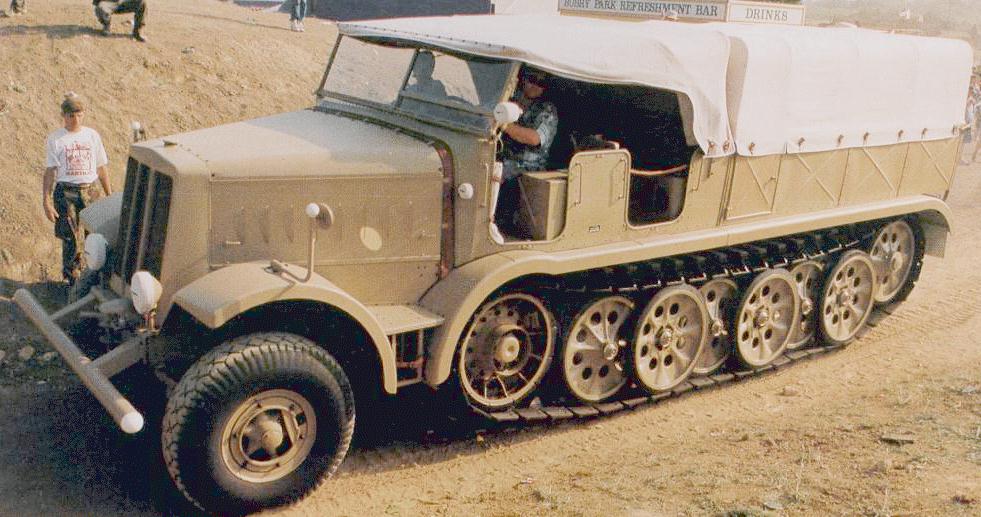

62k photo of pre-series Sd. Kfz. 9 Typ F3101k photo of 1943 Sd. Kfz. 9 Typ F3, Wheatcroft CollectionRear suspension: torsion bars
Air brakes plus mechanical steering brakes, on chain front sprockets
Weight: 15200kg + 2800kg load; trailer weight: 18000 kg
Maximal speed: 50 km/h
Tyres: 12,75-20 inches, offroad
Tyre pressures (atmospheres): ?
Fuel tank capacity: 230 + 60 Ltr.
Petrol consumption: 120 Ltr/100km (highway), 270 Ltr/100km (offroad)
89k photo of Sd. Kfz. 9 Typ F3Cooling system capacity: ? Ltr.
Gearbox oil carter capacity: ? L
Ford depth: 800mm

Photos and data are from:
Werner Oswald "Kraftfahrzeuge und Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982,
Motorbuch Verlag Stuttgart.
eBay Deutschland.
Igor Guzienko (Kiev).
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
"Wheels & Tracks" magazine (number 69) by Bart Vandreveen.
This survived and restored F3 is from the Wheatcroft Collection.
Thanks for help to Jan Szatan, Poland (homepage).
You are welcome to write me by E-mail Contact. Andrei Bogomolov.
