Oldtimers picture gallery. Trucks. Ford WOT6 (British).

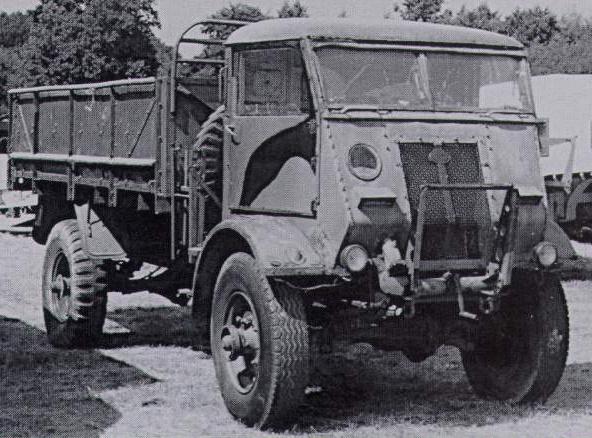

59k photo of 1944 Ford WOT6
Ford WOT6

Years of production: 1942 - 1945. Were shipped to the Soviet Union by Lend-Lease agreement.
Overall production: about 30000.
4x4 3-ton General Service truck with rear- or all wheel drive.
Engine: Ford V-8, 85hp/?rpm, V-8-cyl., carburettor, 4-stroke SV, 3621cc (220 cu. in.)
Bore/Stroke: ?/?mm
Compression ratio: ?:1
Legth: 6071mm (239 in.), Width: 2286mm (90 in.), Height: 3200mm (126 in.)
Wheelbase: 3645mm (143,5 in.), road clearance: ?mm
Gearbox: 4-speed + 1 rear, 2-speed transfer box
Mechanical brakes
Leaf-spring suspension
Weight: 8735 lb. (3970 kg)
Tyre size: 10,50-20 in..
Fuel consumption: 35,5 L/100km
Fuel tank capacity: ? L
Maximal speed: ? km/h
Also existed in airportable version, breakdown gantry, container/shelter (for Royal Air Forces), various mashinery/workshops. Removable cab top.
Photo is from:
"Wheels & Tracks" magazine, Nr.69.
What else in the net:
Danish Army Vehicles Homepage (in English).
You are welcome to add, ask or correct me, my E-mail is Contact. Andrei Bogomolov.
