Oldtimer picture gallery. Cars. BMW Dixi DA2.

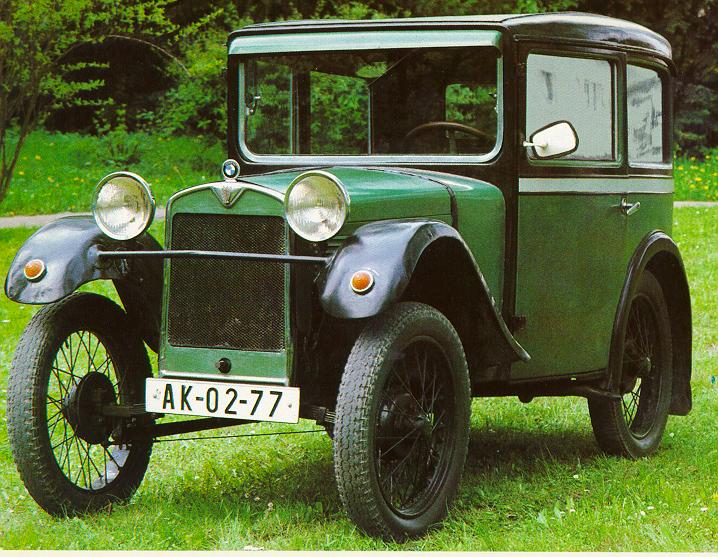

102k photo of 1929 BMW Dixi DA2 Limousine
BMW Dixi DA2
(data for Limousine)
Years of production: 1929-1931-?
Overall production: ? units
4x2 2-4 seater, 2-door 4-light limousine, cabriolet, tourer, delivery van
Engine: 15hp/3000rpm, 4-cyl 4-stroke SV, 749cc
Length: ?mm, width: ?mm, height: ?mm
Wheelbase: ?mm, road clearance: ?mm
Front wheel track: ?mm; toe-in: ?mm; camber: ?; caster: ?
Rear track: ?mm

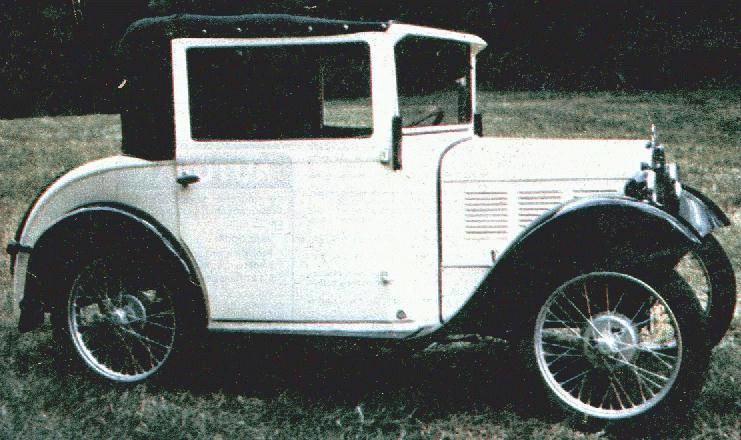

65k photo of 1929 Dixi DA2 CabrioletTurning radius: ?m
Bore/Stroke: 56/76 mm
Pistons type and material: ?, ?
Cold clearance between tappet and valve stem: intake - ?mm, exhaust - ?mm
Compression ratio: 5,6:1
Carburettor: horizontal Zenith 22 K
Dimensions: diffusor - ?mm; main jet - ?/?; idling jet - ?mm
Ignition system: magneto (Bosch, 6V)
Interrupter-distributor type: ?; contact clearance: ? mm
Generator type and power: ? ?
Spark plugs type: ?; ?mm; electrode clearance: ? mm
Cylinder firing order: ?
Clutch: dry single plate
Clutch pedal clearance: ?mm
Gearbox in one block with motor: 3-speed + back
Ratios: I - ?, II - ?, III - ?, rear - ?
Differential ratio: ?
Front suspension: ? with one spring
Rear suspension: ? on 2 quarterelliptical springs
Mechanical all-wheels shoe brakes
Normal flexure of ventilator belt: ?mm
Weight: 460kg (limousine)
Maximal speed: 75 km/h
Climb: ?
Tyres: 4,50-19 inches
Tyre pressures (atmospheres): front - ?, rear - ?
Fuel tank capacity: ? L
Fuel consumption: 9-11 L/100km
Cooling system capacity: ? L
Oil carter capacity: engine - ? L; gearbox - ? L; differential - ? L
