Oldtimer picture gallery. Trucks. Opel-Blitz 3,6-36S

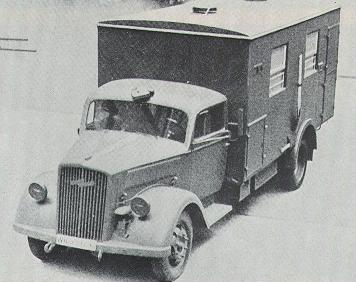

24k photo of Opel Blitz 3,6-36S Kofferaufbau20k photo of Opel Blitz 3,6-36S Kofferaufbau, publishing house20k photo of Opel Blitz 3,6-36S radiomobile, rare integral van typeOpel-Blitz 3,6-36S

Years of production: IV 1937 - VIII 1944
4x2 3,300-ton truck
Overall production: 82356
By years: 1937 - 4774; 1938 - 10505;
1939 - 11487; 1940 - 13685;
1941 - 7759; 1942 - 9545; 1943 - 14585; 1944 - 10016
Dimensions:
Pritsche (cargo), without canvas: length: 6105mm; width: 2265mm; height: 2025mm
20k photo of Opel Blitz 3,6-36S, hood47k WW2 photo of Opel Blitz 3,6-36S Pritsche, USSROpel Blitz 3,6-36S Pritsche with half-vanPritsche (cargo), with canvas: length:
6105mm; width: 2265mm; height: 2565mm
(Cargo platform (Pritsche):
length: 3500mm; width: 2125mm)
Einheits-Kofferaufbau (multi-purpose box
van): length: 5600mm; width: 2150mm;
height: 2850mm
Wheelbase: 3600mm

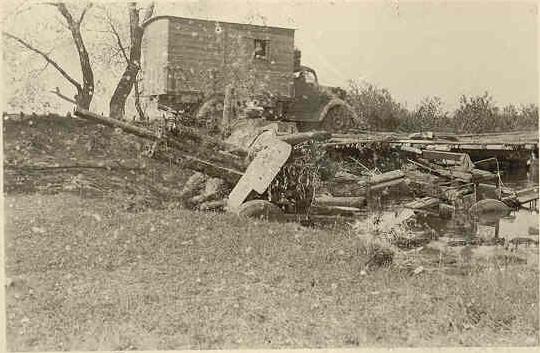

39k WW2 photo of Opel Blitz 3,6-36S Kastenwagen, USSR29k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen, Westfront80k WW2 photo of Opel Blitz 3,6-36SRoad clearance: 225mm
Front wheel track: 1542mm
Rear track: 1620mm
Turning radius: 7,5 m
Engine: own 68hp/3000rpm, petrol
straight 6-cyl. OHV, 3626cc
Bore/stroke: 90/95 mm
Compression ratio: 6 : 1

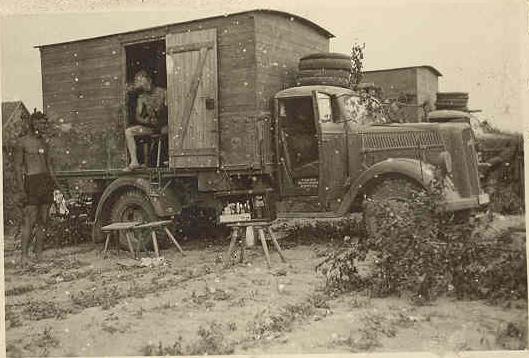

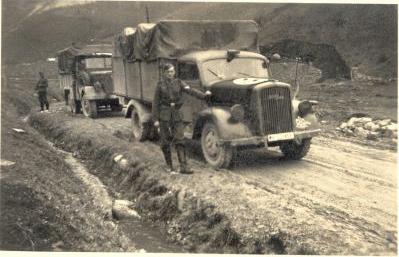

44k WW2 photo of Opel Blitz 3,6-36S Kastenwagen, USSR19k WW2 photo of Opel Blitz 3,6-36S, Zemun, Jugoslavija71k WW2 photo of Opel Blitz 3,6-36S KastenwagenWater pump cooling
Carburetter: downdraft Solex 35 JFP
Battery: 12 Volt, 50 Ah
Clutch: dry single plate
Gearbox: 5 forward + 1 back
Ratios:
I - 7,84; II - 4,82; III - 2,71; IV - 1,58; V - 1,00; rear - ?
Differential ratio: 6,83

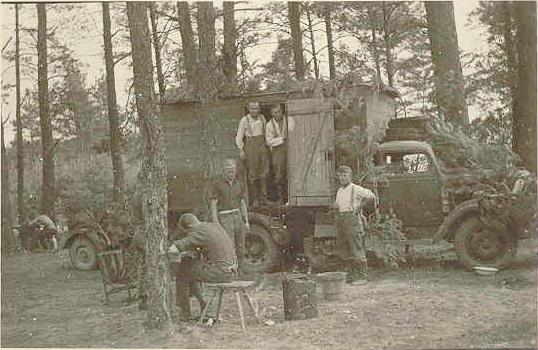

47k WW2 photo of Opel Blitz 3,6-36S Kastenwagen, USSR46k WW2 photo of Opel Blitz 3,6-36S Kastenwagen, USSR20k 1939 photo of Opel Blitz 3,6-36S PritschenwagenU-profile frame
Front suspension: rigid, leaf springs
Rear suspension: rigid, leaf springs
Hydraulic brakes on all wheels
Hand brakes: on transmission
Weight, own:
2500kg (Pritsche), 4000kg (Einheits-Kofferaufbau)
Weight, gross: 5800kg
66k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen, USSR43k WW2 photo of Opel Blitz 3,6-36S military Pritschenwagen33k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen, JugoslavijaMaximal weight of trailer: 2000kg
Maximal speed: 85 km/h
Tyres: 190-20 or 7,25-20 inches
Early wheels with 6 holes, late wheels with
8 holes. Changed appr. in 1938(?).
Petrol consumption:
25 Ltr./100km (highway), 35 Ltr./100km (off-road)
Fuel tank capacity: 82 Ltr.

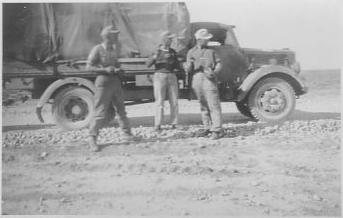

64k photo of Opel Blitz 3,6-36S military Pritsche64k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen12k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen, AfrikaFord depth: 500mm

Data and pictures are from:
Werner Oswald "Kraftfahrzeuge und
Panzer der Reichwehr, Wehrmacht und
Bundeswehr", 1982, Motorbuch Verlag
Stuttgart.
eBay Deutschland.
93k WW2 photo of Opel Blitz 3,6-36S Kastenwagen, USSR10k 1939 photo of Opel Blitz 3,6-36S Pritschenwagen62k WW2 photo of Opel Blitz 3,6-36S PritschenwagenReinhard Frank "Lastkraftwagen der
Wehrmacht", PODZUN-PALLAS, 1992.
Bart Vanderveen "Historic Military
Vehicles Directory", "After the Battle"
publication, 1989.
Eckhart Bartels "Opel Fahrzeug-Chronik
1887-2000", Podszun, 2000.
Military Vehicles Sales & Appraisal Service

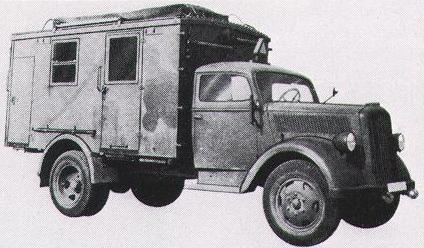

36k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen26k WW2 photo of Opel Blitz 3,6-36S Kfz. 305/1 signals van76k WW2 photo of Dutch(?) cab Opel Blitz 3,6-36S, South UkraineThanks for help to:
Liucijus Suslavičius (Vilnius), automobile
historian and author of numerous
publications,
Denis Orlov (Moskva), automobile
journalist and historian,
Jan Szatan (Klasyczne Pojazdy Terenowe Panstw Socjalistycznych, Poland).

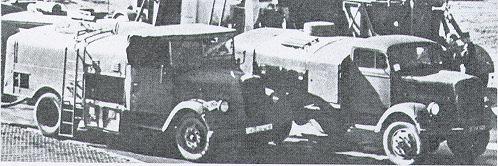

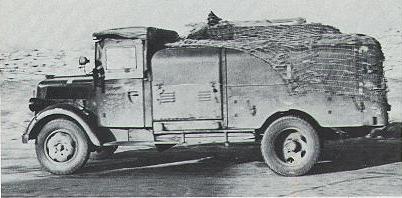

56k photo of Opel Blitz 3,6-36S tanktruck28k photo of Opel Blitz 3,6-36S tanktruck20k photo of Opel Blitz 3,6-36S Kfz.385 softtop cab airdrome tanktruck47k photo of Opel Blitz 3,6-36S Imbert gas generator Pritsche

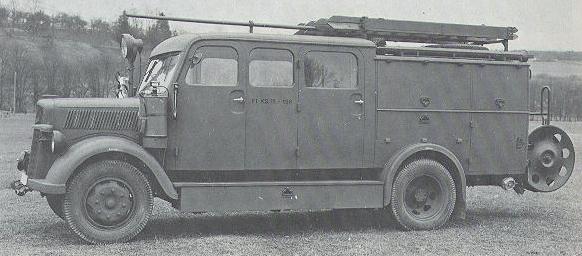

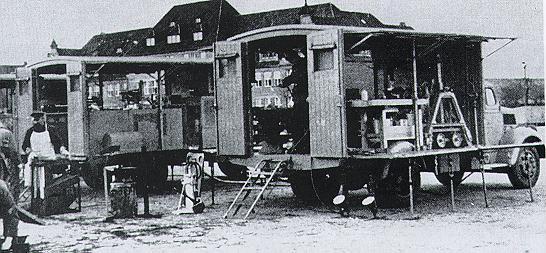

47k WW2 photo of Opel Blitz 3,6-36S shop van31k photo of IV 1941 Opel Blitz 3,6-36S Luftwaffe firetruck KS15 by Magirus18k photo of 1938 Opel Blitz 3,6-36S Pritschenwagen28k photo of Opel Blitz 3,6-36S Kfz.385 softtop cab airdrome tanktruck

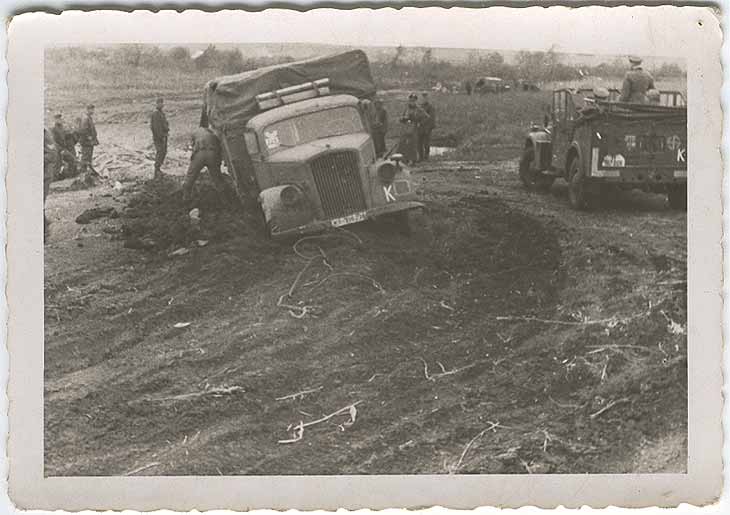

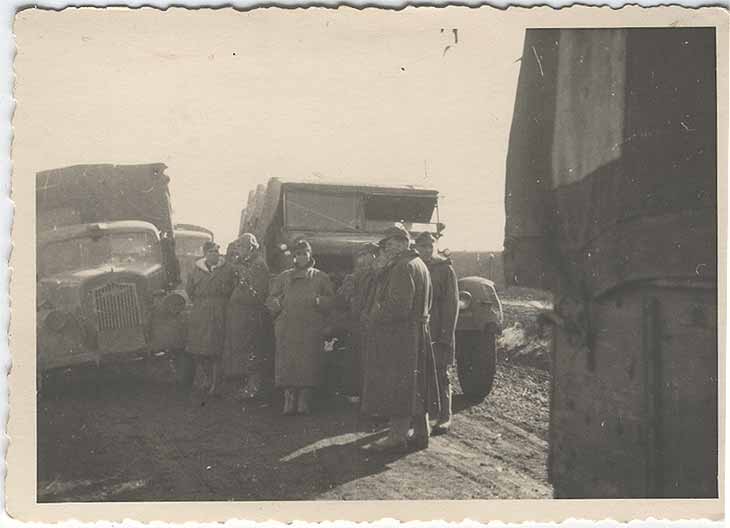

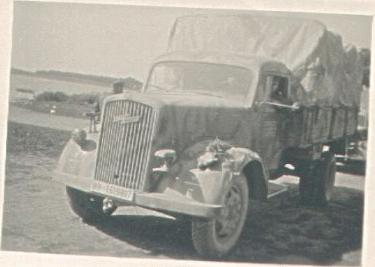

14k 1940 photo of Opel Blitz 3,6-36S in North France24k 1943 photo of Opel Blitz 3,6-36S, Caucasus15k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen41k WW2 photo Opel Blitz 3,6-36S Pritschenwagen, Div. SS Wiking, Kleist group, Russia

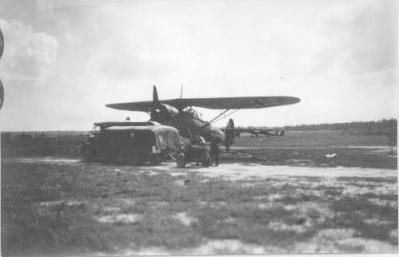

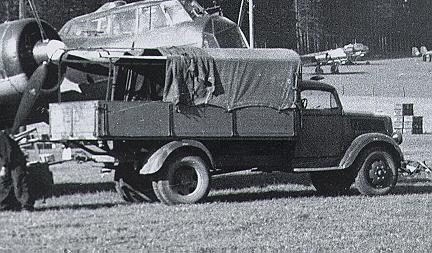

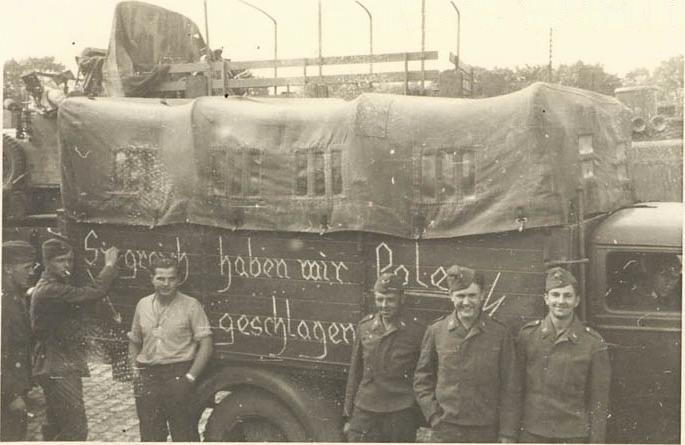

14k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen44k WW2 photo of Opel Blitz 3,6-36S in Poland38k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen12k 1942 photo of Opel Blitz 3,6-36S Kfz.385 and Hs-126 aircraft in USSR

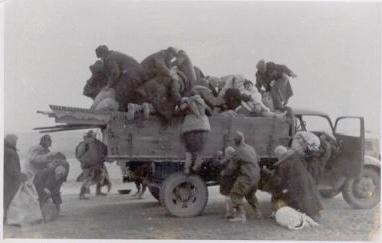

59k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen12k WW2 photo of Opel Blitz 3,6-36S Pritschenwagen, Ukraine
