Oldtimer picture gallery. Cars. Adler Trumpf 1,7 Liter.

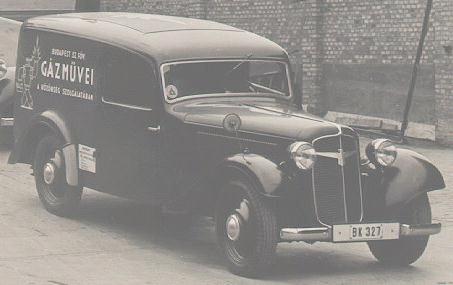

40k photo of 1936 Adler-Trumpf 1,7-Liter Cabriolet19k photo of Adler-Trumpf kastenwagen
Adler Trumpf 1,7 Liter
(Data for limousine)
Years of production: 1934-1938?
Overall production: about 7000, 25603 units (including 1932-1934 Adler-Trumpf 1,5-Liter and Trumpf 2,0 Liter)
Body types: 2-door (more often) and 4-door limousines, cabriolet, sports-cabriolet, 2-seater sports.
This is front wheel drive car.
Engine: 45hp/4000rpm, 4-cyl, 4-stroke SV, 1645cc
Bore/Stroke: 74.25/95 mm

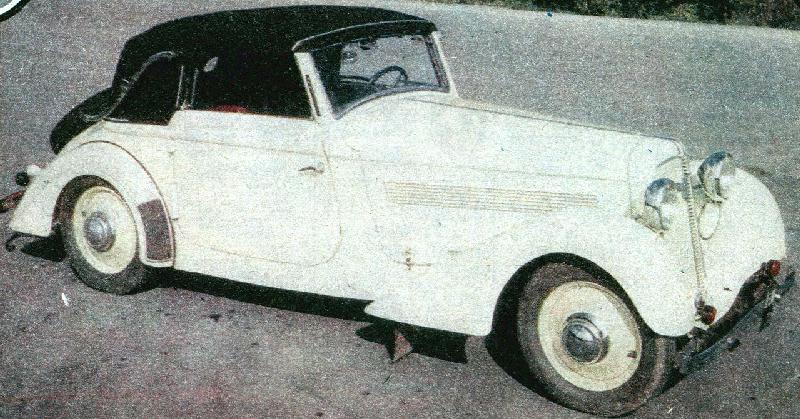

50k photo of 1935 Adler-Trumpf cabriolet by Karmann95k image of 1935 Adler-Trumpf-1,7 Liter 3-seater Cabriolet by BühneLength: 4450mm, width: 1600mm, height: 1580mm
Wheelbase: 2920mm
Gearbox: 4 speeds + rear
Weight: 950 (roadster) - 1050 (3-seater cabriolet) - 1090 kg
Maximal speed: 102 - 110 km/h (roadster - 120km/h)
Tyres: 5,00-16 inches
Fuel tank capacity: 30+5 L

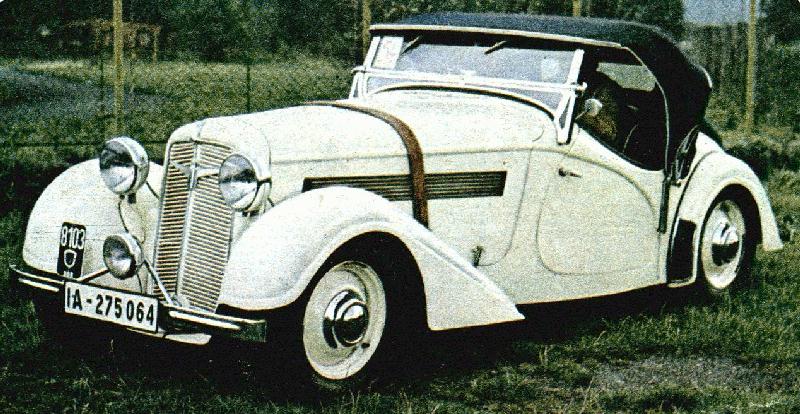

97k image of 1935-1936 Adler-Trumpf-1,7 Liter 2-seater Roadster43k photo of 1935 Adler-Trumpf cabriolet by KarmannFuel consumption: 11-16 L/100km
Price: ?

Photos are from:
Autoclassic magazine, Hungary,
Michael's ADLER Seite,
95k photo of 1935 3-seater Cabriolet by Bühne owned by Hans Wilt, Berlin was printed in "Svet Motoru" magazine, Czechoslovakia.

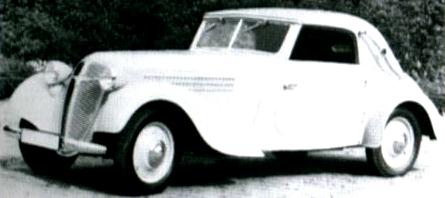

14k image of 1937 Adler-Trumpf Cabriolet97k photo of 1935-1936 2-seater Roadster with 100mm prolonged bonnet owned by Werner Nibuhr, Berlin, was printed in "Svet Motoru" magazine, Czechoslovakia.
14k b/w photo of 1937 cabriolet is from the book "A-Z of Cars of the 1930s" by Michael Sedgwick & Mark Gillies, Bay View Books Ltd. This rounded grille appeared in 1936, but old-style grille remained in production.
