Oldtimer picture gallery. Cars. Adler-Diplomat (1934-1936 model).

122k WW2 photo of Luftwaffe Adler-Diplomat Limousine14k photo of Adler-Diplomat Cabriolet
Adler-Diplomat 3G

Years of production: 1934-1936
Overall production: 3205 (including 1936-1940 Adler Diplomat 3Gd
Engine: 65hp/3800rpm, 6-cyl, 4-stroke SV, 2916cc
Bore/Stroke: 75/110 mm
Carburetter: Solex 35 JF
Length: 4900-5050mm, width: 1740mm, height: 1650mm

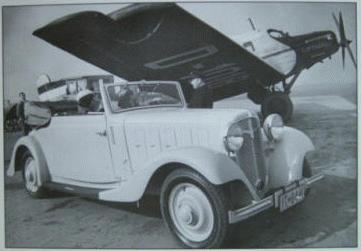

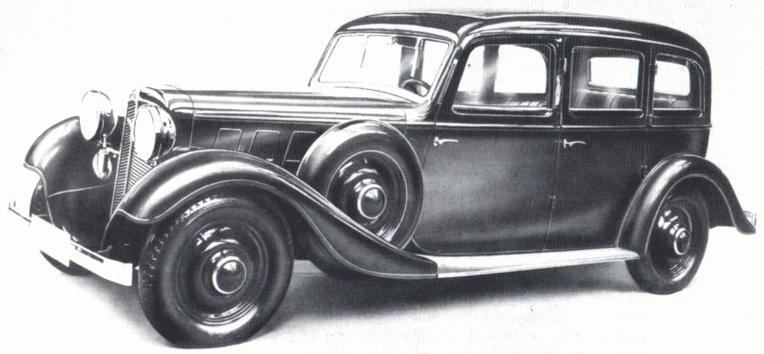

1934 Adler-Diplomat Cabriolet38k photo of Adler-Diplomat Limousine by Ambi BuddWheelbase: 3205-3355mm
Gearbox: 4-speed + back
Weight: 1700-1710 kg
Maximal speed: 115 km/h
Tyres: 6,50-17 inches
Fuel tank capacity: 85 Ltr.

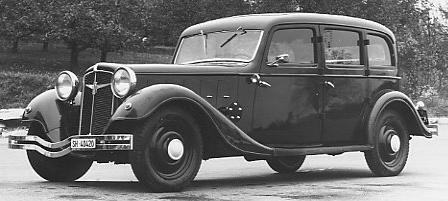

Adler-Diplomat Ambi Budd(?) Limousine23k photo of 1934 Adler-Diplomat LimousineFuel consumption: 15-16 Ltr./100km
Price: ?
This is rear wheel drive car.

Photos are from:
eBay Deutschland.
German Parts Unlimited by Hartmut Schouwer.
Igor Guzienko (Kiev).
Rapold Reisen Neuhausen (Switzerland).
Thanks for help to Karl Mezek (http://www.auto-bike.de (Auto-Bike)).
