Oldtimer picture gallery. Trucks. Renault AGR 2.

18k WW2 photo of Renault AGR tank of Wehrmacht
Renault AGR 2

(data for 3250mm wheelbase cargo variant)
Years of production: 1937-1941
Overall production:
over 3500 units (3050 cargo before VI 1940 + 335 prisoner vans (1937-1939) + ?)
Production amount after VI 1940 unknown
Prisoner vans production by years: 1937 - 165; 1938 - 55; 1939 - 115)
4x2 frontmotor rear wheeldrive 3,5-ton cab over engine truck

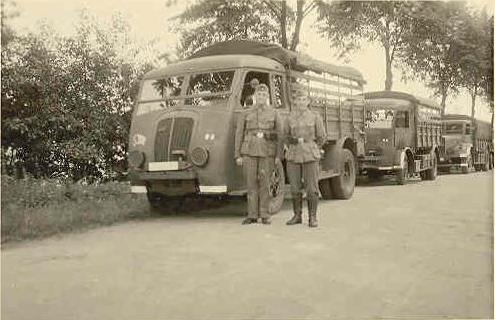

32k WW2 photo of Renault AGR cargo of Wehrmacht, Falkenburg BahnhofBody types: cargo, van, water tank, prisoner van, various others
Engine: "Renault 383", 62hp/2200rpm, straight 4-cyl. petrol OHV, 4025cc
Bore/Stroke: ?/? inches
Compression ratio: ? : 1
Cargo: length: 6,45m; width: 2,31m; height: 2,88m (2550mm by cab?)
Prisoner van: length: 7,04m; width: 2,40m; height: ?m
Wheelbase: 3250mm or 2550mm
11k WW2 photo of Renault AGR of WehrmachtRoad clearance: ?
Front wheel track: 1,79m
Rear track: 1,79m
Electrics: 6 Volt
Carburettor: ?
Gearbox: 4 forward + 1 back
Clutch: ?
Suspension: leaf springs
Mechanical brakes with servo assistance
Cargo: own - 4320 kg, gross - 7820 kg
Prisoner van: own - 5000 kg, gross - 7800 kg
Maximal speed: 59 km/h (cargo)
Tyres: 8,25x20 inches
Fuel tank capacity: ? Ltr.
Fuel consumption: ? Ltr./100km

Photos and data are from:
Francois Vauvillier, Jean-Michel Touraine, "L'Automobile sous l'Uniforme 1939-1940", Massin Editeur.
Bart Vanderveen's book "Historic Military Vehicles Directory", An After the Battle publication, 1989,
eBay Deutschland.

Thanks for help and corrections to:
Liucijus Suslavičius (Vilnius), automobile historian and author of numerous publications.
