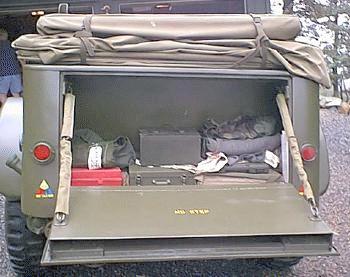

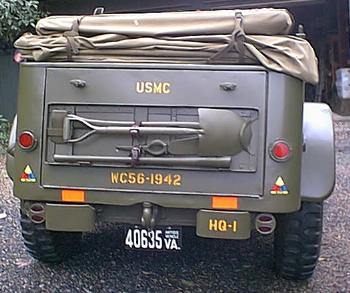

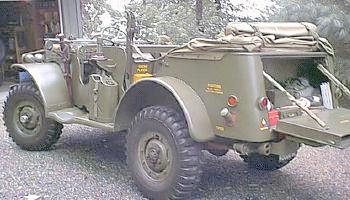

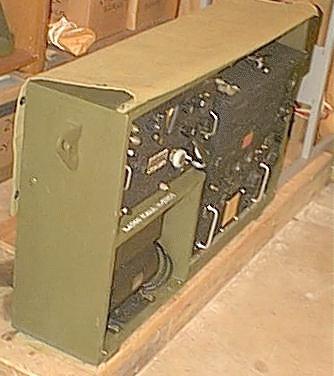

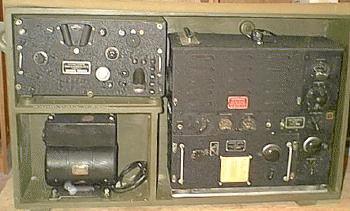

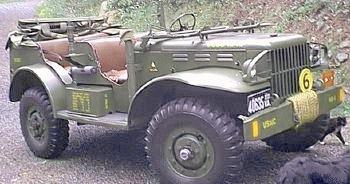

22k photo of 1942 Dodge WC56 with SCR-193 radio, radio27k photo of 1942 Dodge WC56 with SCR-193 radio23k photo of 1942 Dodge WC56 with SCR-193 radio, rear box
Dodge T214 (WC51 ... WC61, WC64)

Years of production: 1942-1945
Overall production: over 253.000 units
4x4 allwheeldrive frontmotor 3/4-ton car
or truck
Body modifications (WC goes for Weapon Carrier, 2,5-ton winch on some models):
WC51, open-cab Pickup without winch (1942 - 1945, at least 98296 built, from late 1944 -
slightly different body)
WC52, open-cab Pickup with winch, (1942 - 1945, at least 42782 built, from late 1944 - slightly different body)

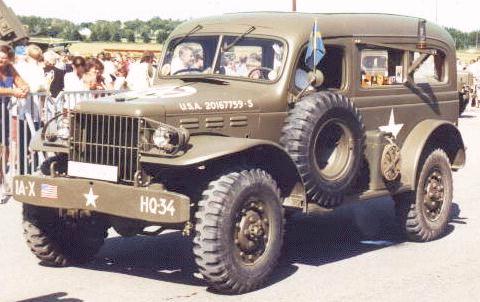

WC53, Carryall without winch (1942 - 1943, 8402 built, also experimental Command Field Sedan with rear side doors and

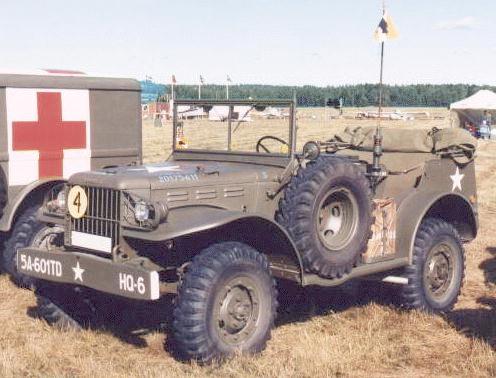

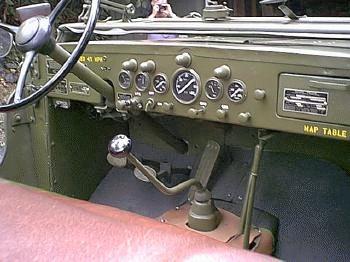

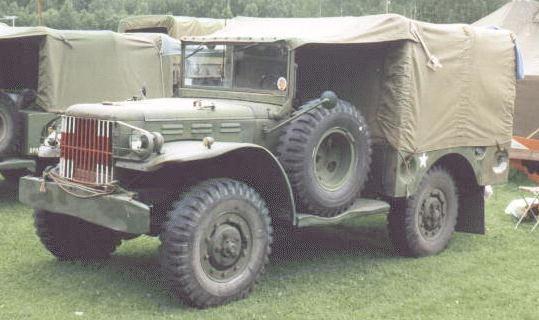

37k photo of 1942 Dodge WC5622k photo of 1942 Dodge WC56 with SCR-193 radio, dashboard13k photo of 1944 Dodge WC51other changes)
WC54, Ambulance without winch (1942
- 1944, at least 29932 built)
WC55, Gun Motor Carriage with winch
(1942 - ?, at least 5380 built)
WC56, Command Reconnaissance
without winch (1942 - 1944, at least
28635 built)

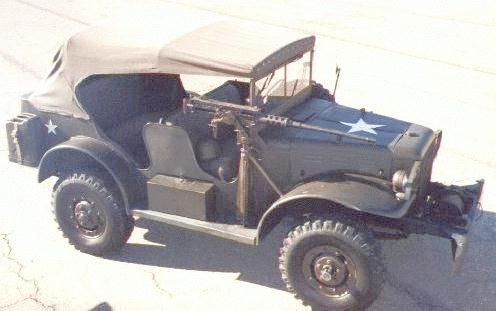

WC57, Command Reconnaissance with winch (1942 - 1944, at least 6010 built)

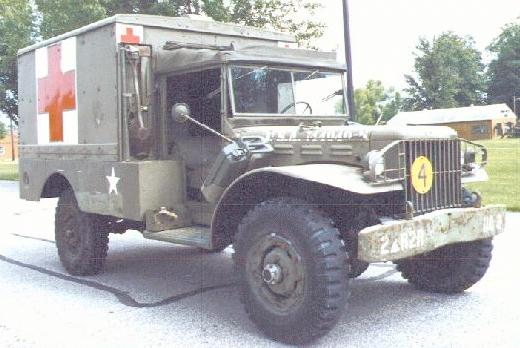

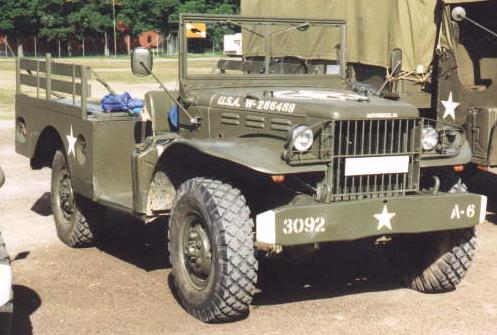

12k photo of 1944 Dodge WC5136k photo of Dodge WC5136k photo of 1944 Dodge WC64WC58, Command Reconnaissance Radio
with winch (1942 - ?, at least 2344 built)
WC59/K50, Telephone Maintenance
without winch (1942 - ?, at least 549
WC60, open-cab Emergency Repair
without winch (1942 - 1943 - ?, at least 296 built)
WC61/K50B, Telephone Maintenance (? - ?, ? built)

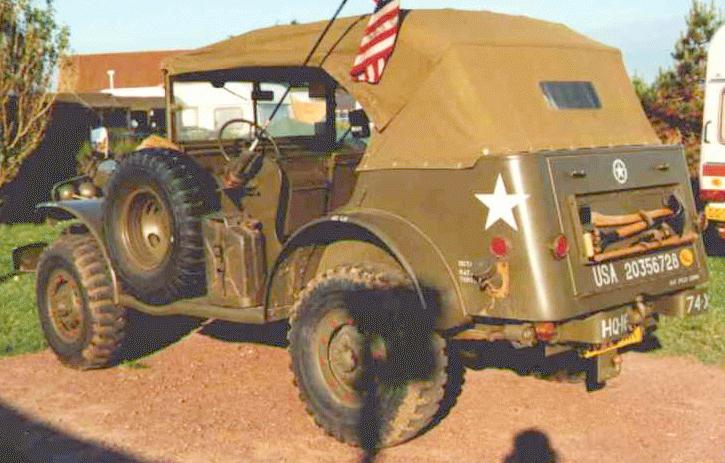

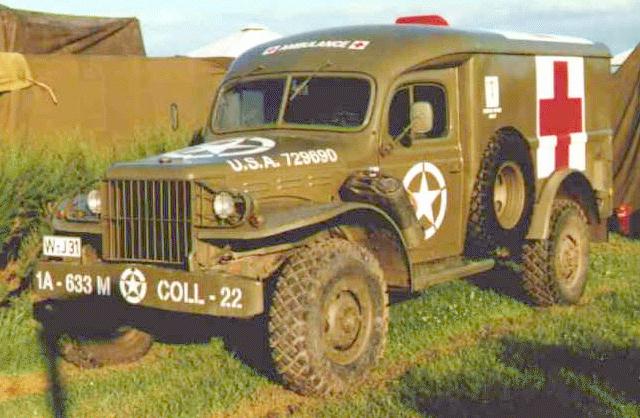

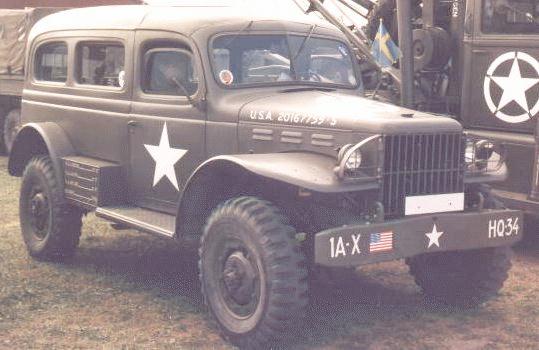

52k photo of Dodge WC5434k photo of 1942 Dodge WC5361k photo of Dodge WC56WC64, Knock Down Ambulance without
winch (1944 - 1945, 3500 built)
Engine: own T214 92hp/3200rpm, liquid
cooling straight 6 - cyl SV, 230,2 cid
(3771 cm3)
Bore/Stroke: ?/? mm
Compression ratio: ? : 1

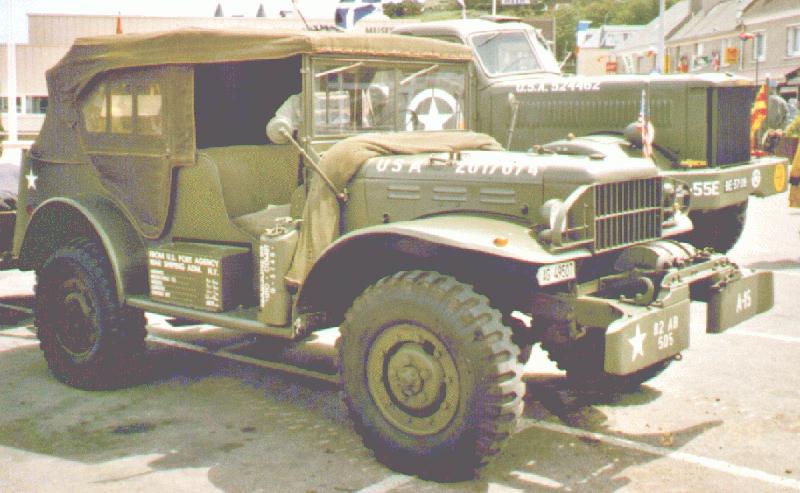

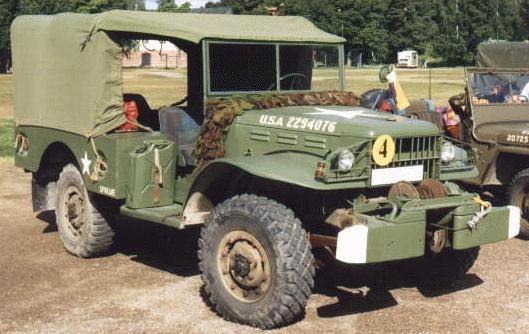

39k photo of Dodge WC5233k photo of 1942 Dodge WC5323k photo of 1944 Dodge WC57(for some models I didn't find any data)
Length: 4235 mm, width: 2120 mm,
height: 1870 mm without canvas (WC51)
Length: 176 in, width: 79 in, height: 81 in
(4470 x 2007 x 2057 mm) (WC57)
Length: 186 in, width: 79 in, height: 80 in
(4724 x 2007 x 2032 mm) (WC53)
Length: 191 in, width: 83 in, height: 90 in (4851 x 2108 x 2032 mm) (WC64)

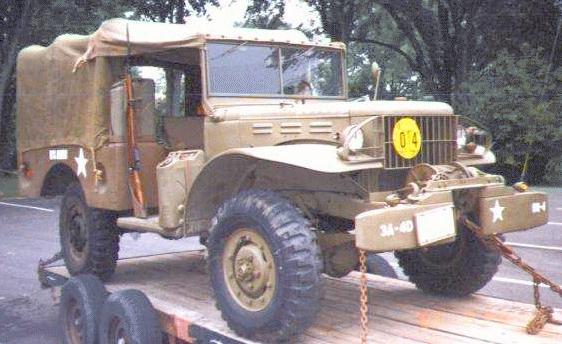

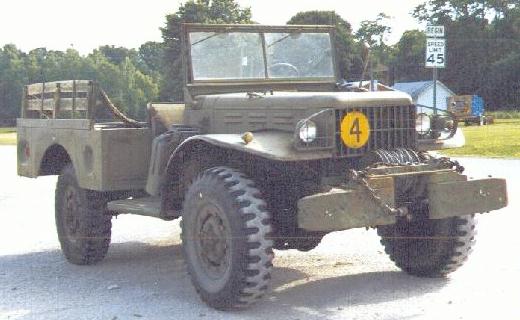

64k photo of Dodge WC5742k photo of 1944 Dodge WC5231k photo of 1945 Dodge WC52Length: 194 in, width: 78 in, height: 90 in
(4928 x 1981 x 2286 mm) (WC54)
Wheelbases: 98 inches (2489mm)
(WC53 - 114 inches (2896mm); WC54,
WC59, WC60, WC61, WC64 - 121
inches (3073mm))
Road clearance: 10,5 in (267mm)
Front wheel track: 1670 mm (WC51)

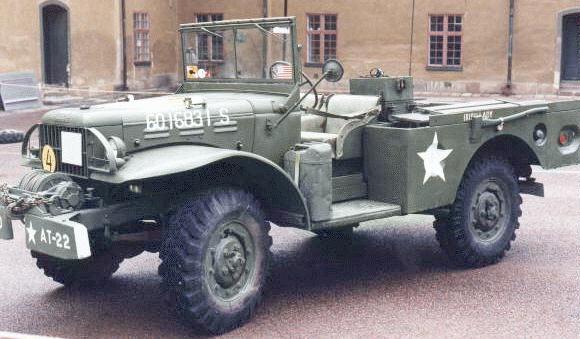

18k photo of 1942 Dodge WC56 with SCR-193 radio, radio31k photo of 1944 Dodge WC51, late model42k photo of 1942 Dodge WC55Rear track: 1650 mm (WC51)
6 Volt electrics (12 Volt on 1945 models
and all WC53, WC56, WC57, WC58)
Carburettor: ?
Gearbox: 4 speed + back
Single speed transfer box with front axle
Clutch: dry plate

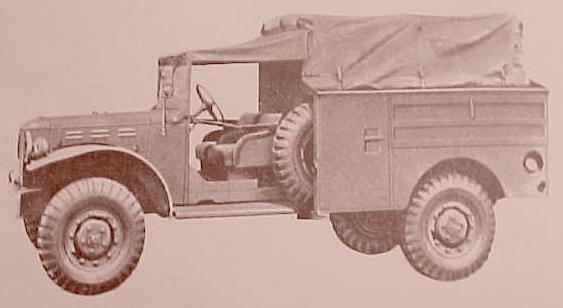

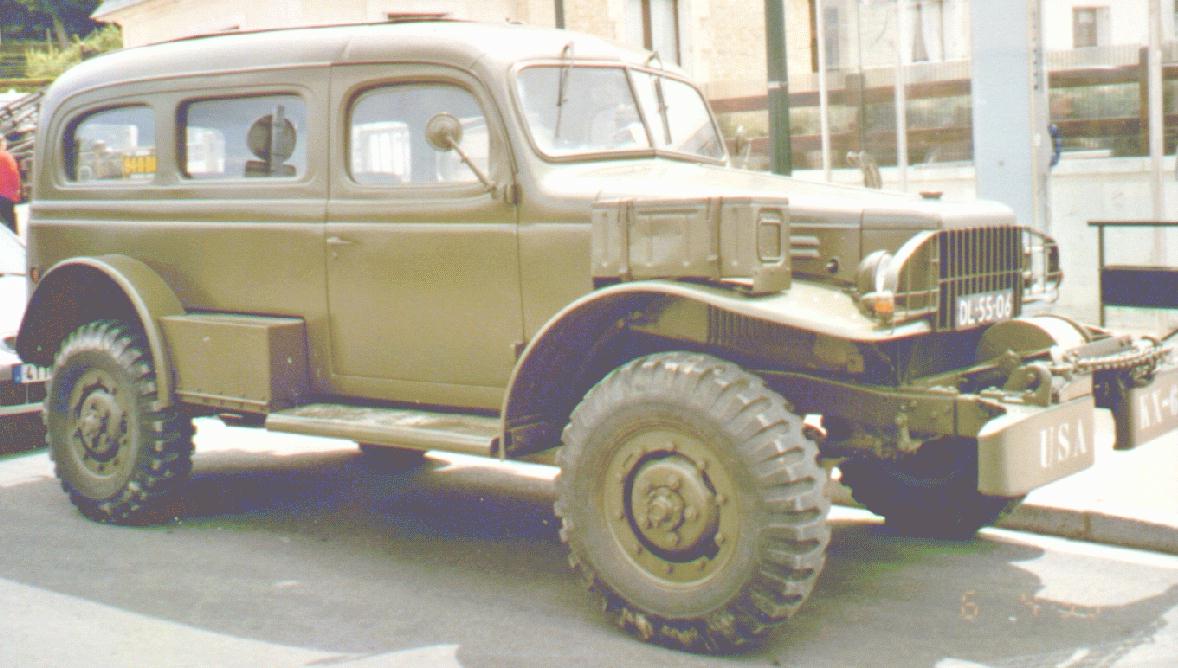

96k photo of Dodge WC53 with winch (?!)21k photo of 1942 Dodge WC56 with SCR-193 radio20k photo of Dodge WC60Hydraulic brakes
Rigid axles with semi-elliptic leaf springs
Axle gear ratio: 5,83 : 1
Weight: 2315kg (WC51), 5675lb
(WC57), 5750 lb (WC53), 5920 lb
(2738 kg, WC54), 6880 lb (3121kg, WC64)
Maximum trailed load (road/cross country): ? lb

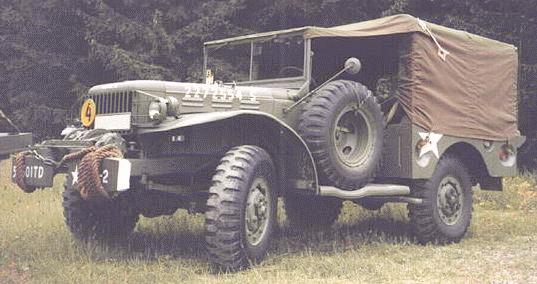

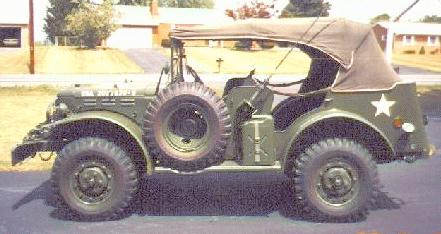

34k photo of 1944 Dodge WC5224k photo of 1942 Dodge WC5820k photo of 1942 Dodge WC56 with SCR-193 radioMaximal speed: 86,8 km/h (highway,
WC51), 85 km/h (WC54)
Disassemblable wheel disks
Tyres: 9,00x16 inches
Fuel tank capacity: 30 gallon
Fuel consumption: 28,5 L/100km (highway, WC51), 28 L/100km (WC54)
T214 Model Identification and Specification Chart (167kByte).

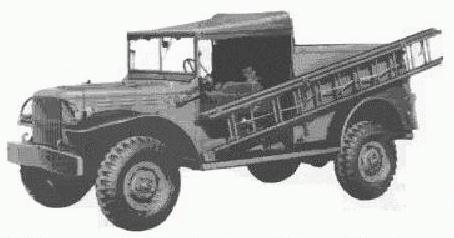

16k photo of Dodge WC5948k photo of Dodge WC54 of Czechoslovakian army79k photo of Dodge WC56 with Bantam trailerWeak point - cross member under the front part of the engine. Dodge-3/4 is may be the best automobile of WW2.
